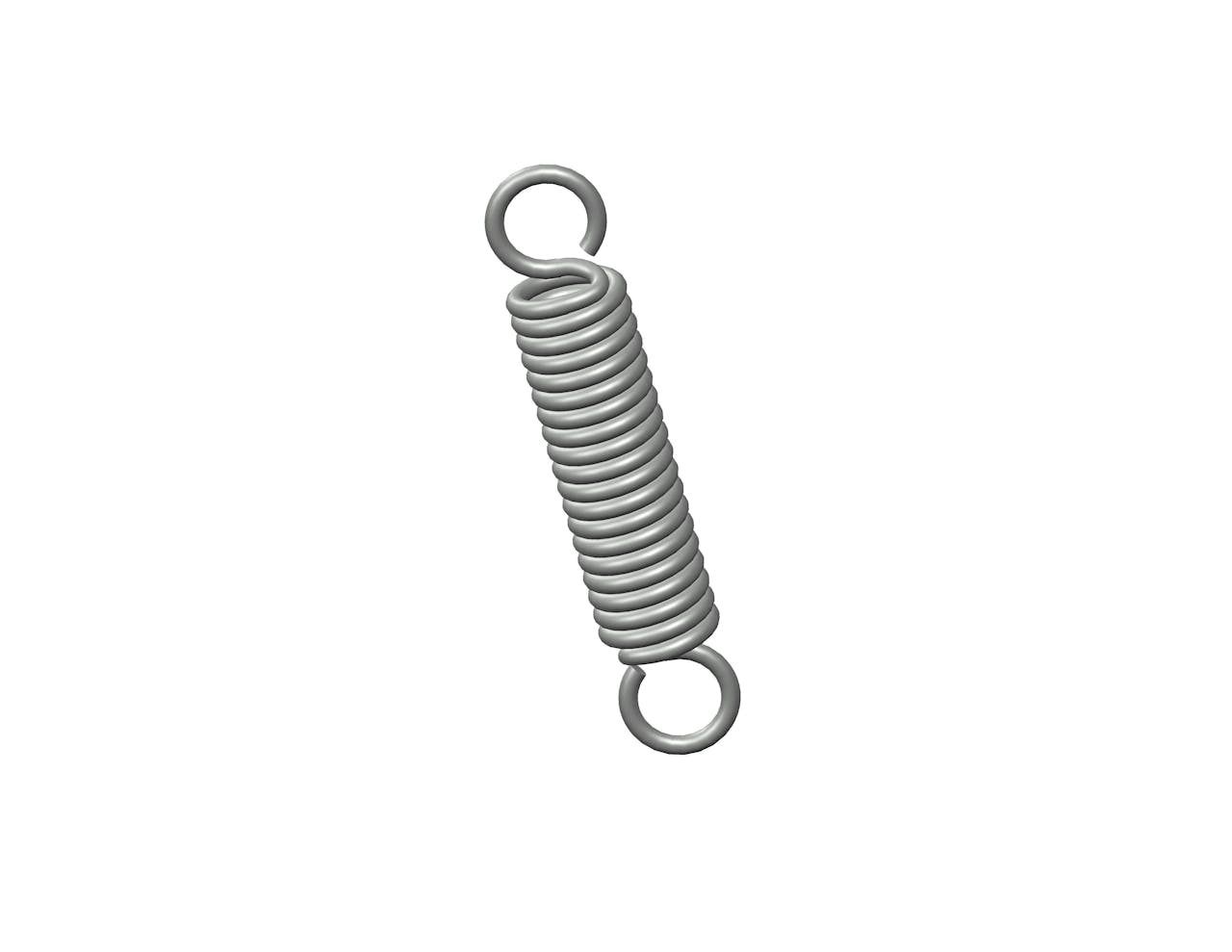

223CS - 2.5 Inch High Carbon Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 223
Ends Full Loop
Finish Zinc
Initial Tension 9 lb
Length 2.5 in
Material High Carbon Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 33 lbs/in
SKU 223CS
Sugg Max Deflection 0.77 in
Sugg Max Load 35 lbf
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 223
Ends Full Loop
Finish Zinc
Initial Tension 4.08 kg
Length 63.5 mm
Material High Carbon Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 5.78 N/mm
SKU 223CS
Sugg Max Deflection 19.56 mm
Sugg Max Load 155.68 N
Wire Diameter 2.03 mm
