Century Spring

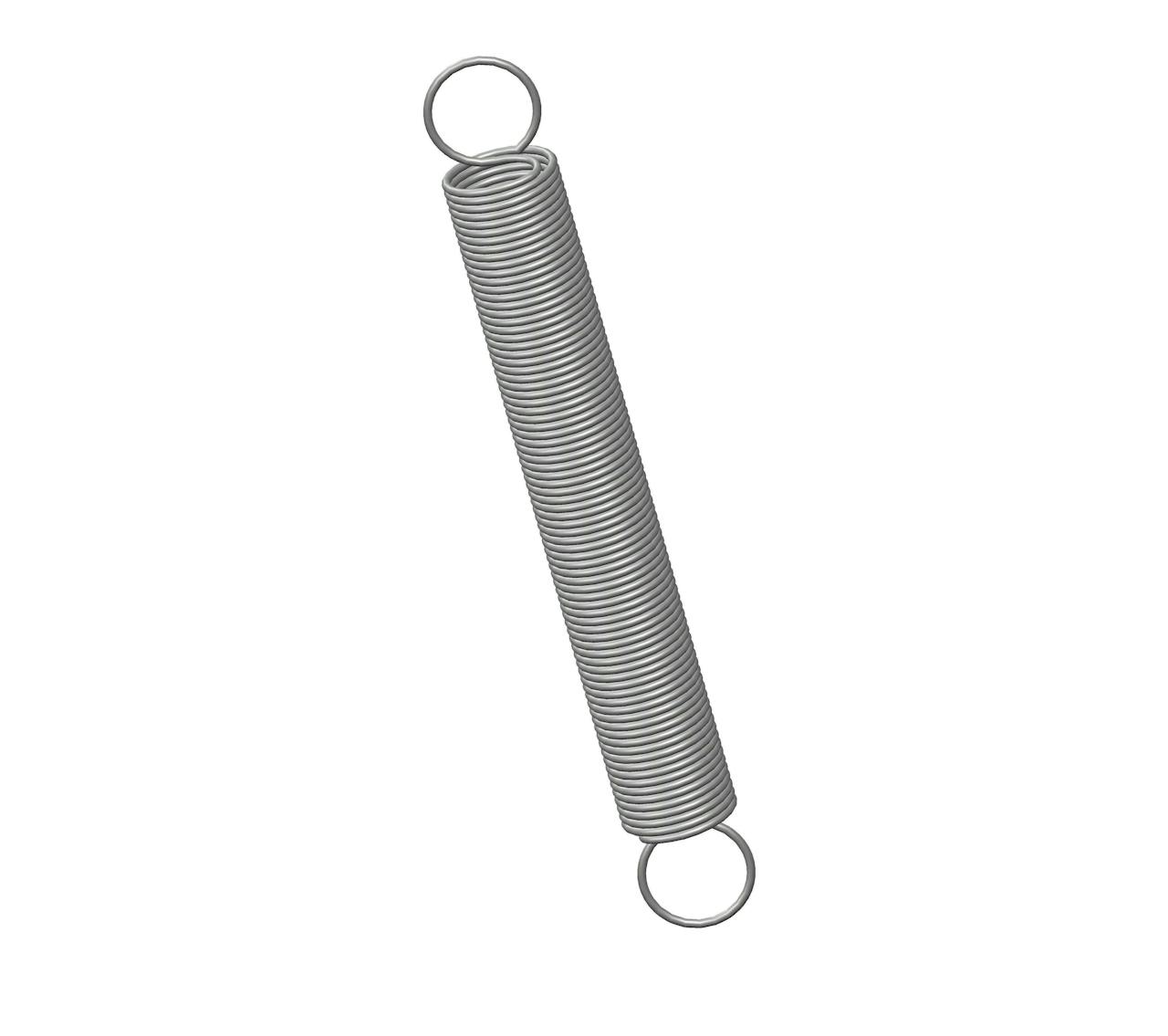

222CS - 5 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.625 Inch and an initial tension of 0.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 222
Ends Machine Hook
Finish Zinc
Initial Tension 0.6 lb
Length 5 in
Material High Carbon Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 0.42 lbs/in
SKU 222CS
Sugg Max Deflection 13 in
Sugg Max Load 5.8 lbf
Wind Direction Left
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 222
Ends Machine Hook
Finish Zinc
Initial Tension 0.27 kg
Length 127 mm
Material High Carbon Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 0.07 N/mm
SKU 222CS
Sugg Max Deflection 330.2 mm
Sugg Max Load 25.8 N
Wind Direction Left
Wire Diameter 1.19 mm
