Century Spring

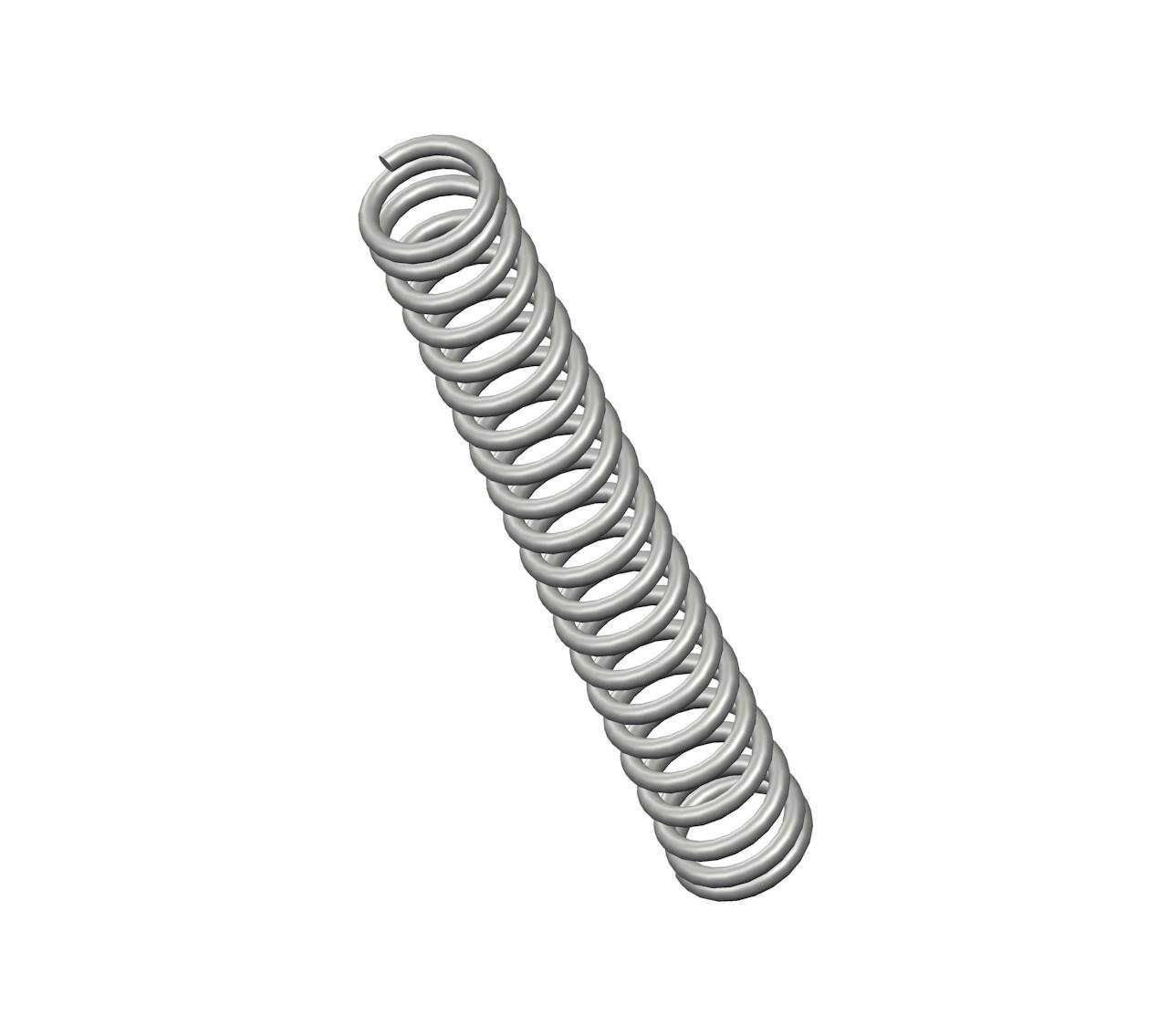

201-CCS - 1.75" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 20.8 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.18".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 201-C
Ends Closed
Finish Zinc
Free Length 1.75 in
Inside Diameter 0.18 in
Material Music Wire
Outside Diameter 0.25 in
Part Type Standard
Rate 12 lbs/in
SKU 201-CCS
Solid Length 0.76 in
Suggested Max Deflection 0.77 in
Suggested Max Load 8.9 lbf
Total Coils 20.8
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 201-C
Ends Closed
Finish Zinc
Free Length 44.45 mm
Inside Diameter 4.57 mm
Material Music Wire
Outside Diameter 6.35 mm
Part Type Standard
Rate 2.1 N/mm
SKU 201-CCS
Solid Length 19.3 mm
Suggested Max Deflection 19.56 mm
Suggested Max Load 39.59 N
Total Coils 20.8
Wire Diameter 0.89 mm
The compression spring 201-CCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 201-C compression spring design exhibits exceptional tensile strength and resilience.

The 201-C design is manufactured with a free length of 1.75", with an outer diameter of 0.25", an inner diameter of 0.18", and a total of 20.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 12 lbs/in.

The 201-CCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 201-C design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
