Century Spring

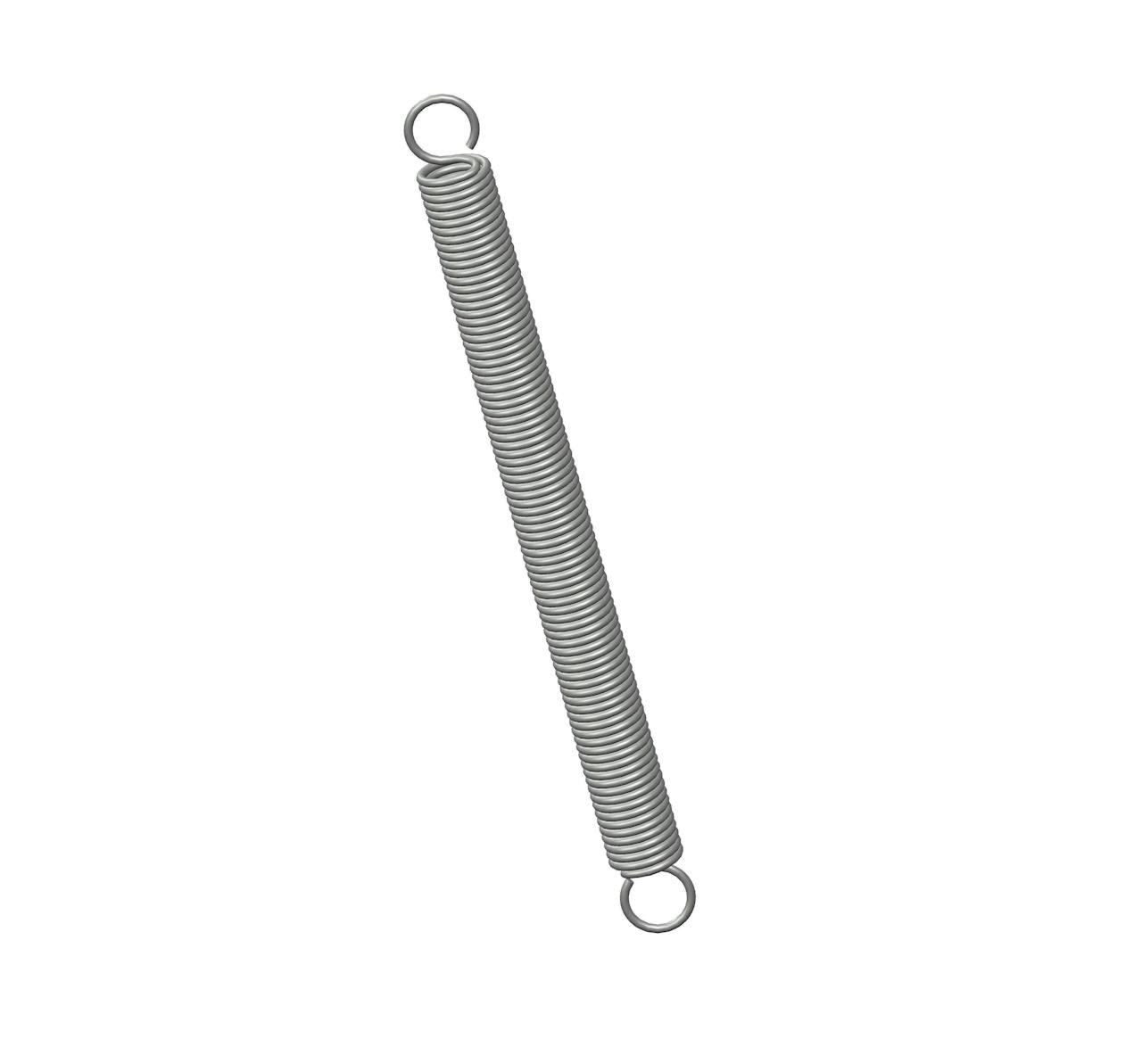

199-CCS - 1.5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.125 Inch and an initial tension of 0.2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 199-C
Ends Full Loop
Finish Zinc
Initial Tension 0.2 lb
Length 1.5 in
Material Spring Steel
Outside Diameter 0.125 in
Part Type Standard
Rate 0.65 lbs/in
SKU 199-CCS
Sugg Max Deflection 2 in
Sugg Max Load 1.4 lbf
Wind Direction Left
Wire Diameter 0.015 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 199-C
Ends Full Loop
Finish Zinc
Initial Tension 0.09 kg
Length 38.1 mm
Material Spring Steel
Outside Diameter 3.18 mm
Part Type Standard
Rate 0.11 N/mm
SKU 199-CCS
Sugg Max Deflection 50.8 mm
Sugg Max Load 6.23 N
Wind Direction Left
Wire Diameter 0.38 mm
