Century Spring

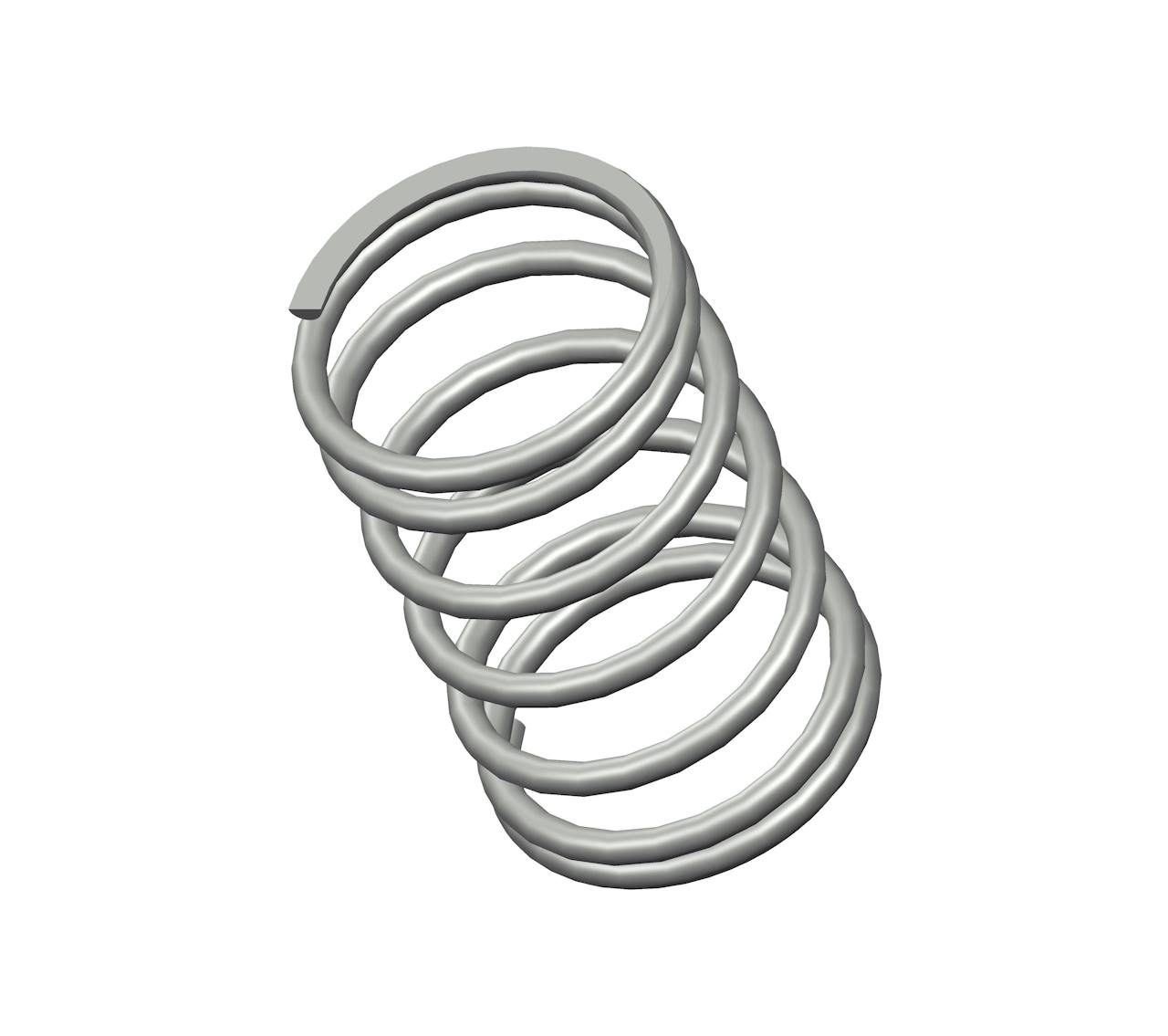

1901CS - 2" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 1.25", and an I.D. of 1.04".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 1901
Ends Closed & Ground
Finish Zinc
Free Length 2 in
Inside Diameter 1.04 in
Material Spring Steel
Outside Diameter 1.25 in
Part Type Standard
Rate 23 lbs/in
SKU 1901CS
Solid Length 0.74 in
Suggested Max Deflection 1.3 in
Suggested Max Load 29 lbf
Total Coils 7
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 1901
Ends Closed & Ground
Finish Zinc
Free Length 50.8 mm
Inside Diameter 26.42 mm
Material Spring Steel
Outside Diameter 31.75 mm
Part Type Standard
Rate 4.03 N/mm
SKU 1901CS
Solid Length 18.8 mm
Suggested Max Deflection 33.02 mm
Suggested Max Load 128.99 N
Total Coils 7
Wire Diameter 2.67 mm
The 1901CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.105" diameter spring steel, the 1901 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 29 lbf without succumbing to fatigue.

We manufacture the 1901 design to provide a compression spring that is 2" long at rest and provides a consistent rate of 23 lbs/in along its recommended maximum of 1.3" deflection. For best results, your application should fully accommodate the inner (1.04") and outer (1.25") diameters of this spring and be designed for its closed & ground end configuration.
