Century Spring

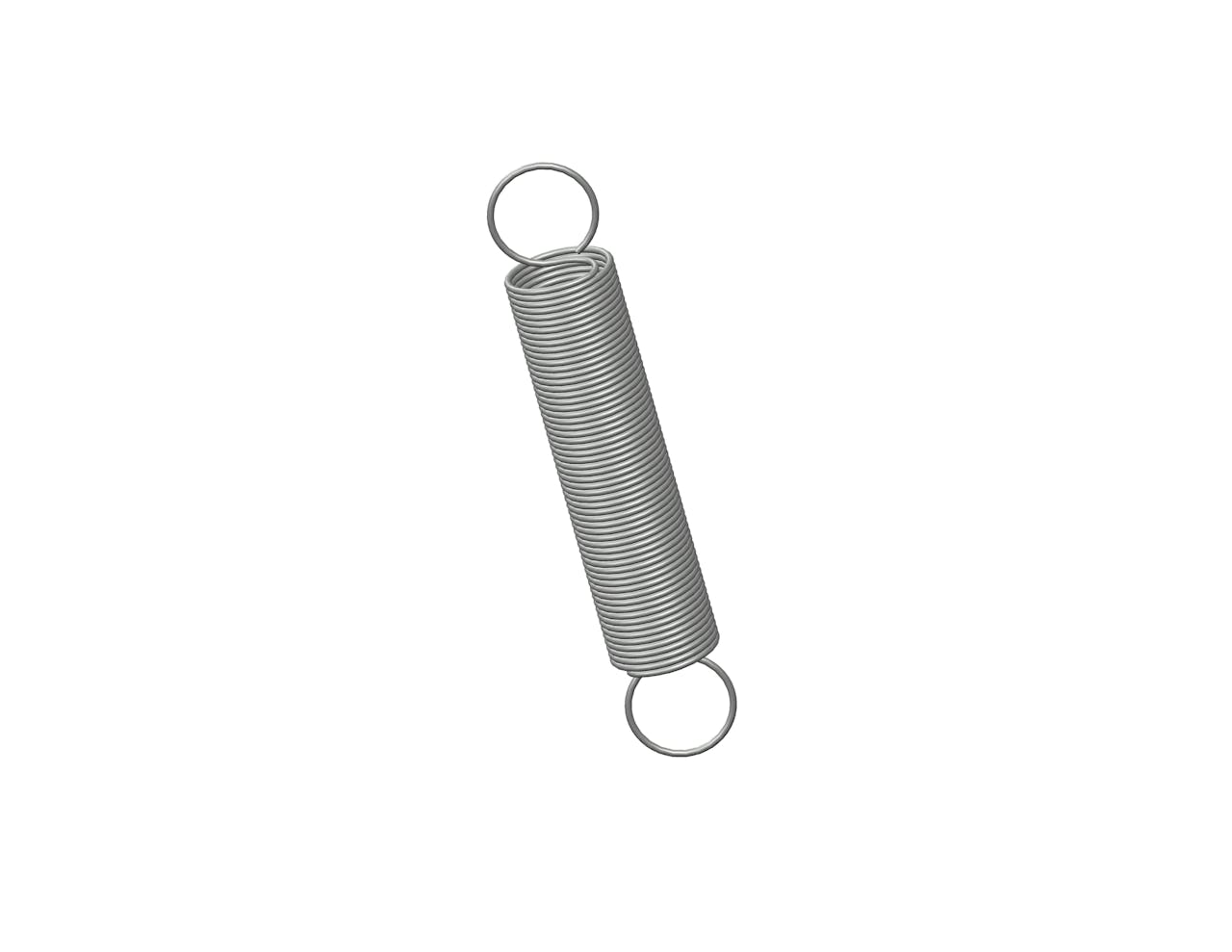

185-CCS - 2.5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.437 Inch and an initial tension of 0.1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 185-C
Ends Full Loop
Finish Zinc
Initial Tension 0.1 lb
Length 2.5 in
Material Spring Steel
Outside Diameter 0.437 in
Part Type Standard
Rate 0.18 lbs/in
SKU 185-CCS
Sugg Max Deflection 13 in
Sugg Max Load 2.5 lbf
Wind Direction Left
Wire Diameter 0.028 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 185-C
Ends Full Loop
Finish Zinc
Initial Tension 0.05 kg
Length 63.5 mm
Material Spring Steel
Outside Diameter 11.1 mm
Part Type Standard
Rate 0.03 N/mm
SKU 185-CCS
Sugg Max Deflection 330.2 mm
Sugg Max Load 11.12 N
Wind Direction Left
Wire Diameter 0.71 mm
