1709CS - 7" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

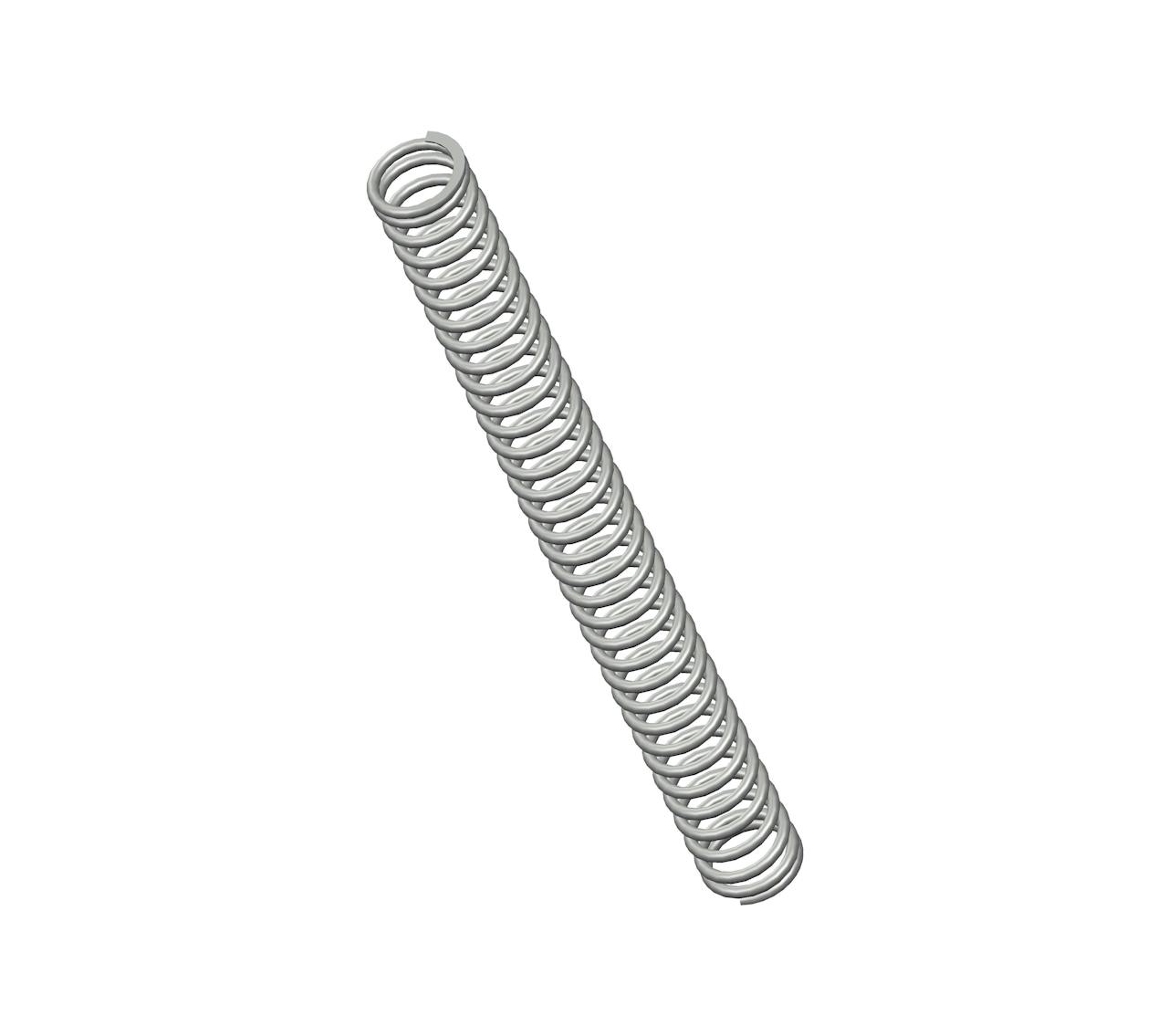

Compression spring manufactured from spring steel with 34.5 coils and closed & ground ends. This spring features an O.D. of 0.671", and an I.D. of 0.511".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 1709
Ends Closed & Ground
Finish Zinc
Free Length 7 in
Inside Diameter 0.511 in
Material Spring Steel
Outside Diameter 0.671 in
Part Type Standard
Rate 8.8 lbs/in
SKU 1709CS
Solid Length 2.76 in
Suggested Max Deflection 2.9 in
Suggested Max Load 26 lbf
Total Coils 34.5
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 1709
Ends Closed & Ground
Finish Zinc
Free Length 177.8 mm
Inside Diameter 12.98 mm
Material Spring Steel
Outside Diameter 17.04 mm
Part Type Standard
Rate 1.54 N/mm
SKU 1709CS
Solid Length 70.1 mm
Suggested Max Deflection 73.66 mm
Suggested Max Load 115.65 N
Total Coils 34.5
Wire Diameter 2.03 mm
The 1709CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.08" diameter spring steel, the 1709 spring design exhibits reliable strength across its 34.5 active coils, withstanding repeated compression cycles with a maximum load of 26 lbf without succumbing to fatigue.

We manufacture the 1709 design to provide a compression spring that is 7" long at rest and provides a consistent rate of 8.8 lbs/in along its recommended maximum of 2.9" deflection. For best results, your application should fully accommodate the inner (0.511") and outer (0.671") diameters of this spring and be designed for its closed & ground end configuration.
