Century Spring

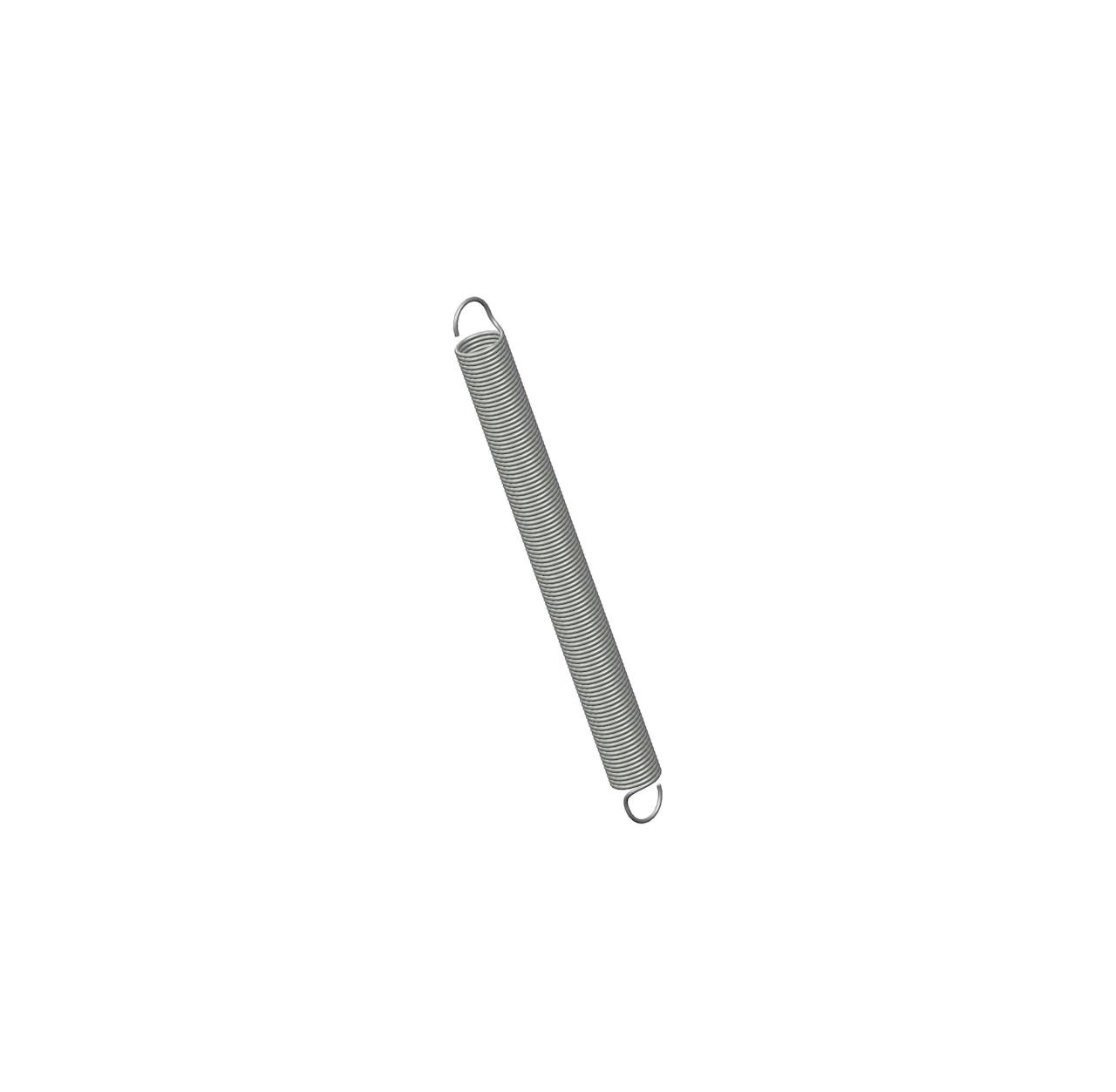

169-CCS - 2.5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.219 Inch and an initial tension of 0.2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 169-C
Ends Machine Hook
Finish Zinc
Initial Tension 0.2 lb
Length 2.5 in
Material Spring Steel
Outside Diameter 0.219 in
Part Type Standard
Rate 0.27 lbs/in
SKU 169-CCS
Sugg Max Deflection 6.6 in
Sugg Max Load 1.9 lbf
Wind Direction Left
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 169-C
Ends Machine Hook
Finish Zinc
Initial Tension 0.09 kg
Length 63.5 mm
Material Spring Steel
Outside Diameter 5.56 mm
Part Type Standard
Rate 0.05 N/mm
SKU 169-CCS
Sugg Max Deflection 167.64 mm
Sugg Max Load 8.45 N
Wind Direction Left
Wire Diameter 0.51 mm
