Century Spring

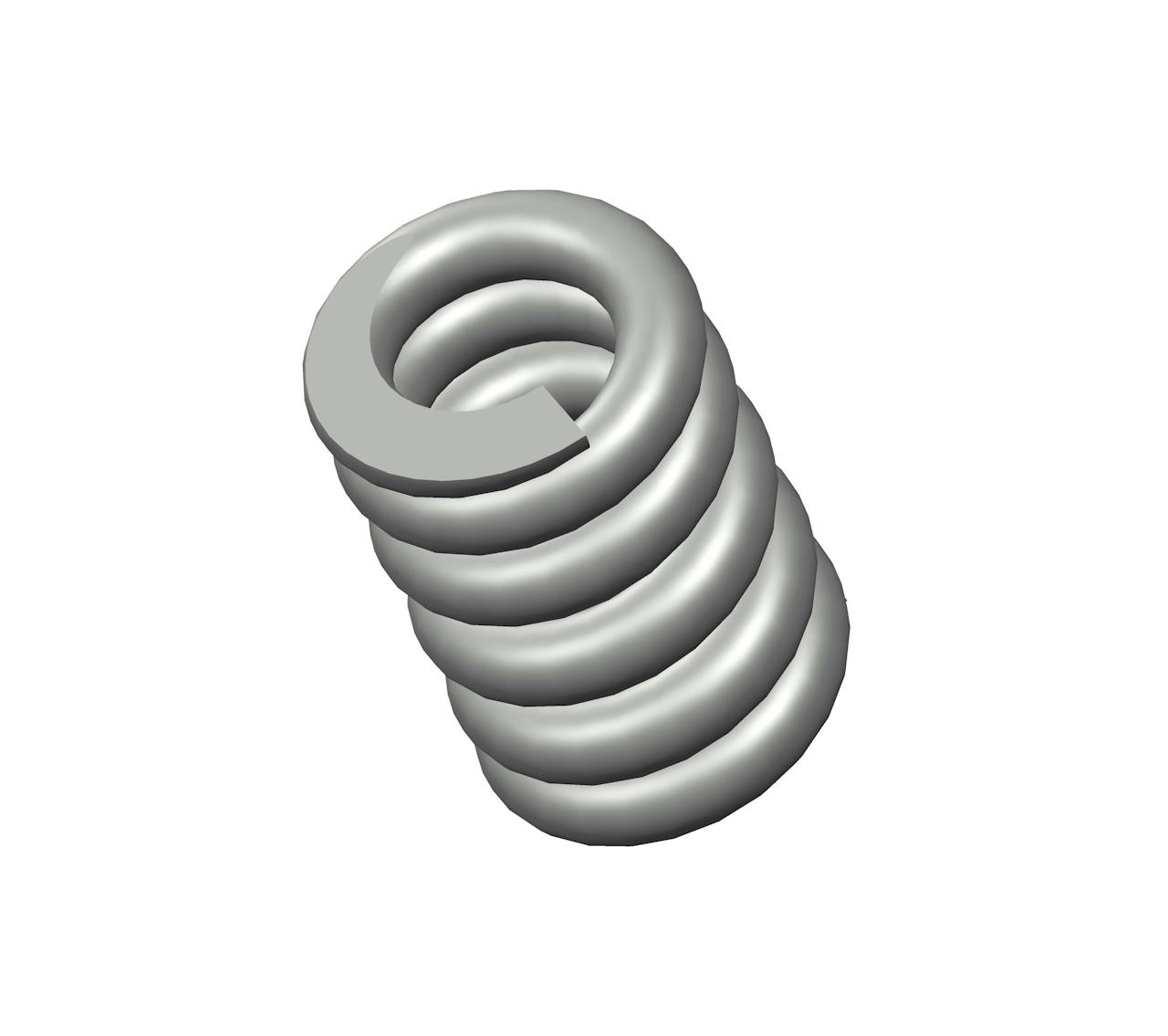

1655CS - 0.53" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 5.75 coils and closed & ground ends. This spring features an O.D. of 0.343", and an I.D. of 0.189".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 1655
Ends Closed & Ground
Finish Zinc
Free Length 0.53 in
Inside Diameter 0.189 in
Material Spring Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 716 lbs/in
SKU 1655CS
Solid Length 0.44 in
Suggested Max Deflection 0.06 in
Suggested Max Load 41 lbf
Total Coils 5.75
Wire Diameter 0.077 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 1655
Ends Closed & Ground
Finish Zinc
Free Length 13.46 mm
Inside Diameter 4.8 mm
Material Spring Steel
Outside Diameter 8.71 mm
Part Type Standard
Rate 125.37 N/mm
SKU 1655CS
Solid Length 11.18 mm
Suggested Max Deflection 1.52 mm
Suggested Max Load 182.37 N
Total Coils 5.75
Wire Diameter 1.96 mm
The 1655 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 1655CS compression spring is designed with a free length of 0.81" total of 7 coils, and a rate of 80 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 1655 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
