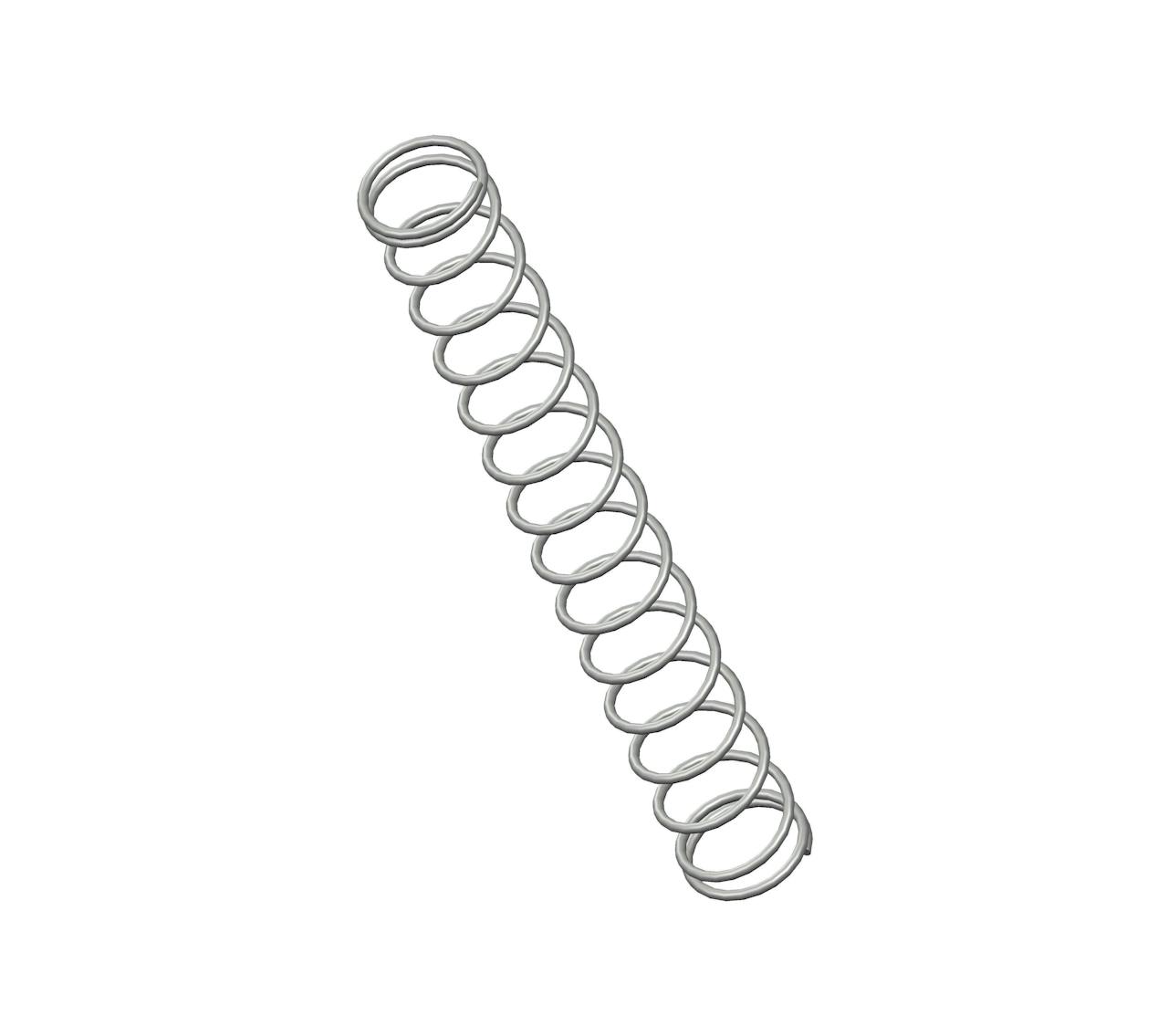

160-CCS - 1.75" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 16 coils and closed ends. This spring features an O.D. of 0.219", and an I.D. of 0.183".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 160-C |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.75 in |
| Inside Diameter | 0.183 in |
| Material | Music Wire |
| Outside Diameter | 0.219 in |
| Part Type | Standard |
| Rate | 1.3 lbs/in |
| SKU | 160-CCS |
| Solid Length | 0.31 in |
| Suggested Max Deflection | 1.2 in |
| Suggested Max Load | 1.6 lbf |
| Total Coils | 16 |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 160-C |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 44.45 mm |
| Inside Diameter | 4.65 mm |
| Material | Music Wire |
| Outside Diameter | 5.56 mm |
| Part Type | Standard |
| Rate | 0.23 N/mm |
| SKU | 160-CCS |
| Solid Length | 7.87 mm |
| Suggested Max Deflection | 30.48 mm |
| Suggested Max Load | 7.12 N |
| Total Coils | 16 |
| Wire Diameter | 0.46 mm |
The compression spring 160-CCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 160-C compression spring design exhibits exceptional tensile strength and resilience.
The 160-C design is manufactured with a free length of 1.75", with an outer diameter of 0.219", an inner diameter of 0.183", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.3 lbs/in.
The 160-CCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 160-C design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 160-C design is manufactured with a free length of 1.75", with an outer diameter of 0.219", an inner diameter of 0.183", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.3 lbs/in.
The 160-CCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 160-C design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
