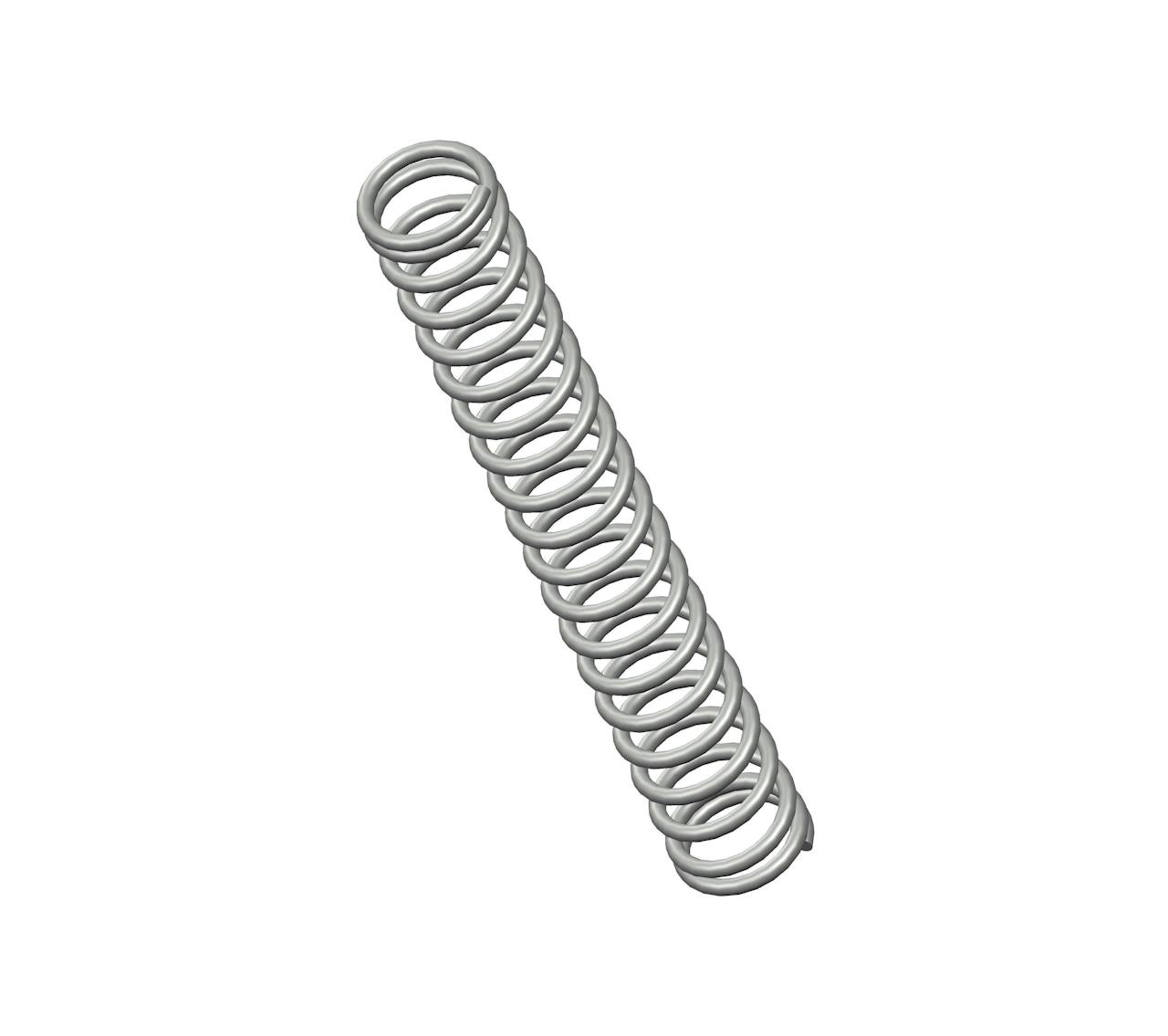

155-BCS - 1.38" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 20 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.142".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 155-B |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.38 in |
| Inside Diameter | 0.142 in |
| Material | Music Wire |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 5 lbs/in |
| SKU | 155-BCS |
| Solid Length | 0.48 in |
| Suggested Max Deflection | 0.76 in |
| Suggested Max Load | 3.8 lbf |
| Total Coils | 20 |
| Wire Diameter | 0.023 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 155-B |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 35.05 mm |
| Inside Diameter | 3.61 mm |
| Material | Music Wire |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 0.88 N/mm |
| SKU | 155-BCS |
| Solid Length | 12.19 mm |
| Suggested Max Deflection | 19.3 mm |
| Suggested Max Load | 16.9 N |
| Total Coils | 20 |
| Wire Diameter | 0.58 mm |
The compression spring 155-BCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 155-B compression spring design exhibits exceptional tensile strength and resilience.
The 155-B design is manufactured with a free length of 1.38", with an outer diameter of 0.188", an inner diameter of 0.142", and a total of 20 coils, expertly designed to deliver consistent compression characteristics including a rate of 5 lbs/in.
The 155-BCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 155-B design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
