Century Spring

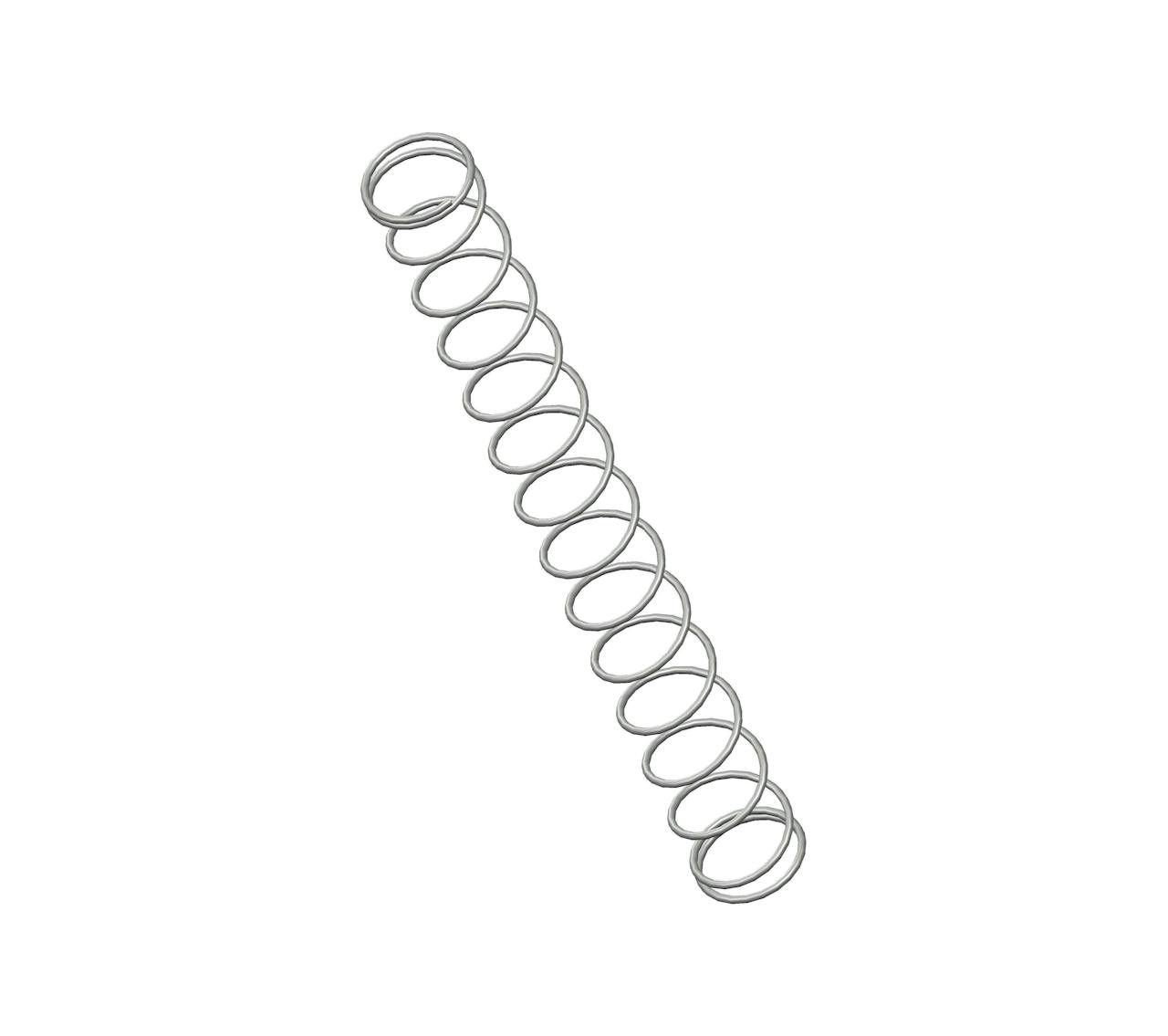

152-CCS - 1.75" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 15.8 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.162".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 152-C
Ends Closed
Finish Zinc
Free Length 1.75 in
Inside Diameter 0.162 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 0.56 lbs/in
SKU 152-CCS
Solid Length 0.22 in
Suggested Max Deflection 1.4 in
Suggested Max Load 0.78 lbf
Total Coils 15.8
Wire Diameter 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 152-C
Ends Closed
Finish Zinc
Free Length 44.45 mm
Inside Diameter 4.11 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.1 N/mm
SKU 152-CCS
Solid Length 5.59 mm
Suggested Max Deflection 35.56 mm
Suggested Max Load 3.47 N
Total Coils 15.8
Wire Diameter 0.33 mm
The 152-C compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 152-CCS compression spring is designed with a free length of 1.38" total of 12.8 coils, and a rate of 0.71 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 152-C spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
