1513 - 1.06 Inch Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

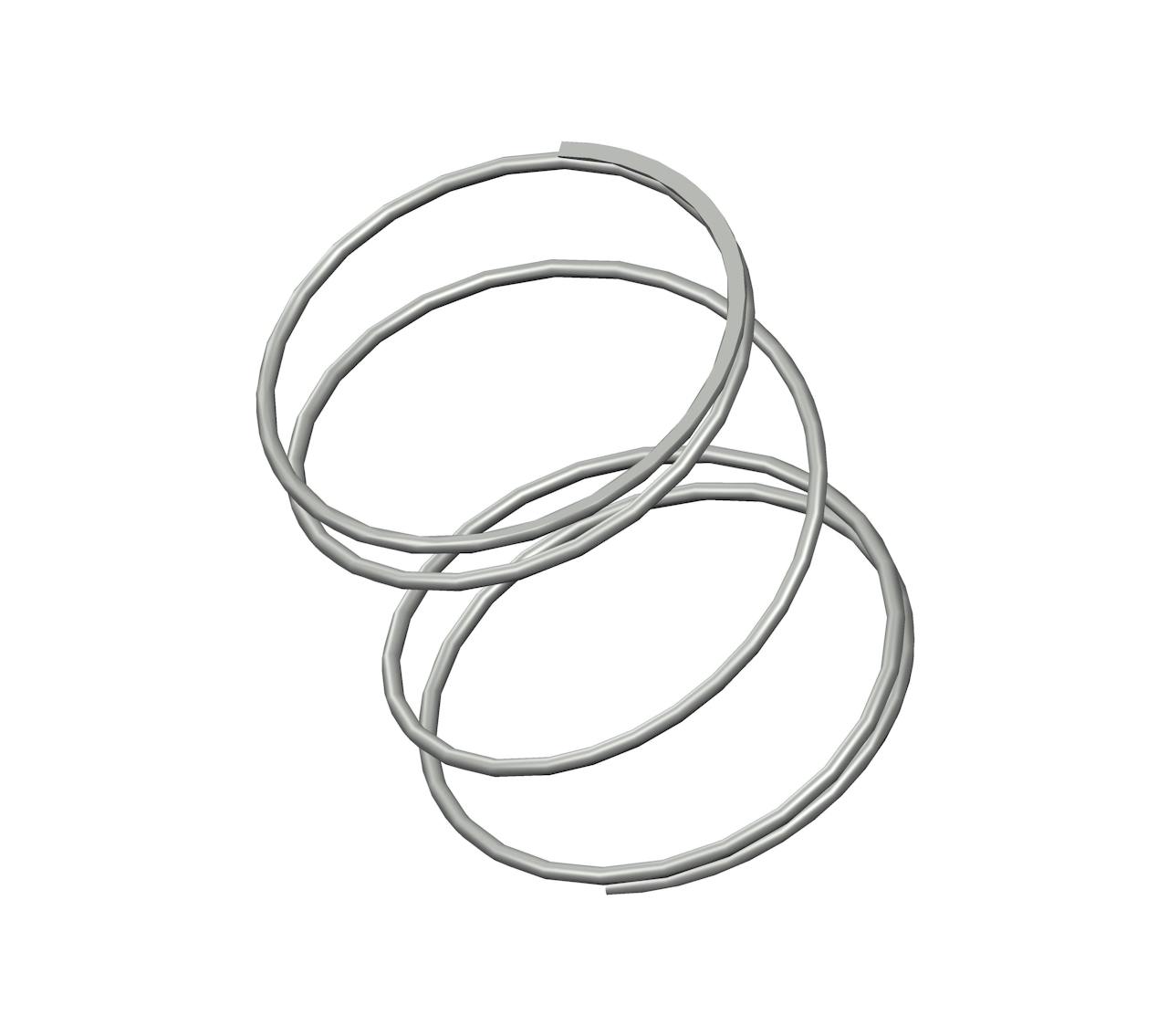

Compression spring manufactured from Spring Steel with 4.5 coils and Closed ends. This spring features an O.D. of 0.984 Inch, and an I.D. of 0.914 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 1513
Ends Closed
Finish Zinc
Free Length 1.06 in
Inside Diameter 0.914 in
Material Spring Steel
Outside Diameter 0.984 in
Part Type Standard
Rate 1 lbs/in
SKU 1513CS
Solid Length 0.19 in
Suggested Max Deflection 0.87 in
Suggested Max Load 0.88 lbf
Total Coils 4.5
Wire Diameter 0.035 in
The 1513 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality hard drawn and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 1513CS compression spring is designed with a free length of 1" total of 7.5 coils, and a rate of 2.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 1513 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
