Century Spring

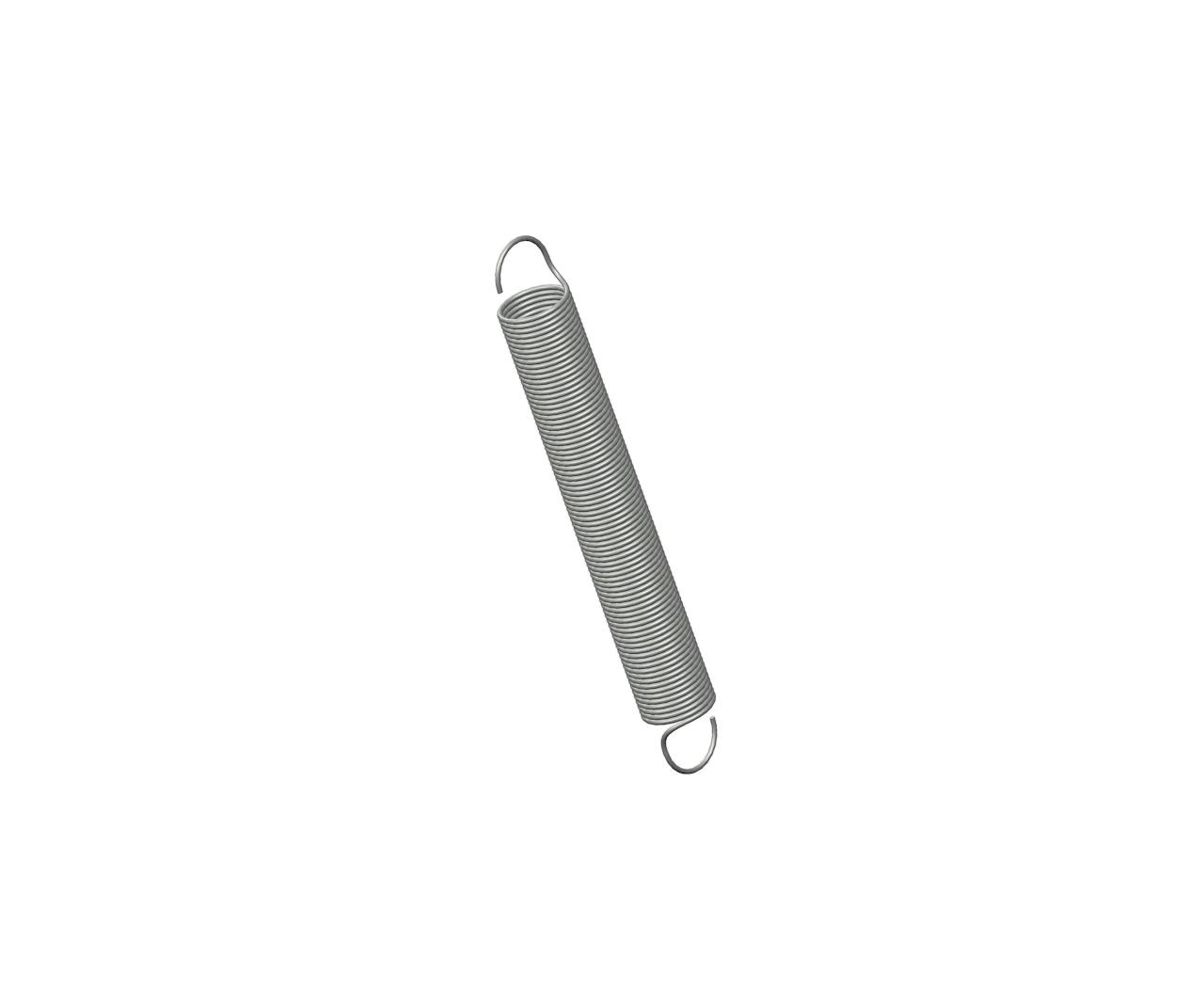

147CS - 8.5 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 1.062 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 147
Ends Machine Hook
Finish Zinc
Initial Tension 2 lb
Length 8.5 in
Material High Carbon Steel
Outside Diameter 1.062 in
Part Type Standard
Rate 0.69 lbs/in
SKU 147CS
Sugg Max Deflection 19 in
Sugg Max Load 15 lbf
Wind Direction Left
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 147
Ends Machine Hook
Finish Zinc
Initial Tension 0.91 kg
Length 215.9 mm
Material High Carbon Steel
Outside Diameter 26.97 mm
Part Type Standard
Rate 0.12 N/mm
SKU 147CS
Sugg Max Deflection 482.6 mm
Sugg Max Load 66.72 N
Wind Direction Left
Wire Diameter 2.03 mm
