Century Spring

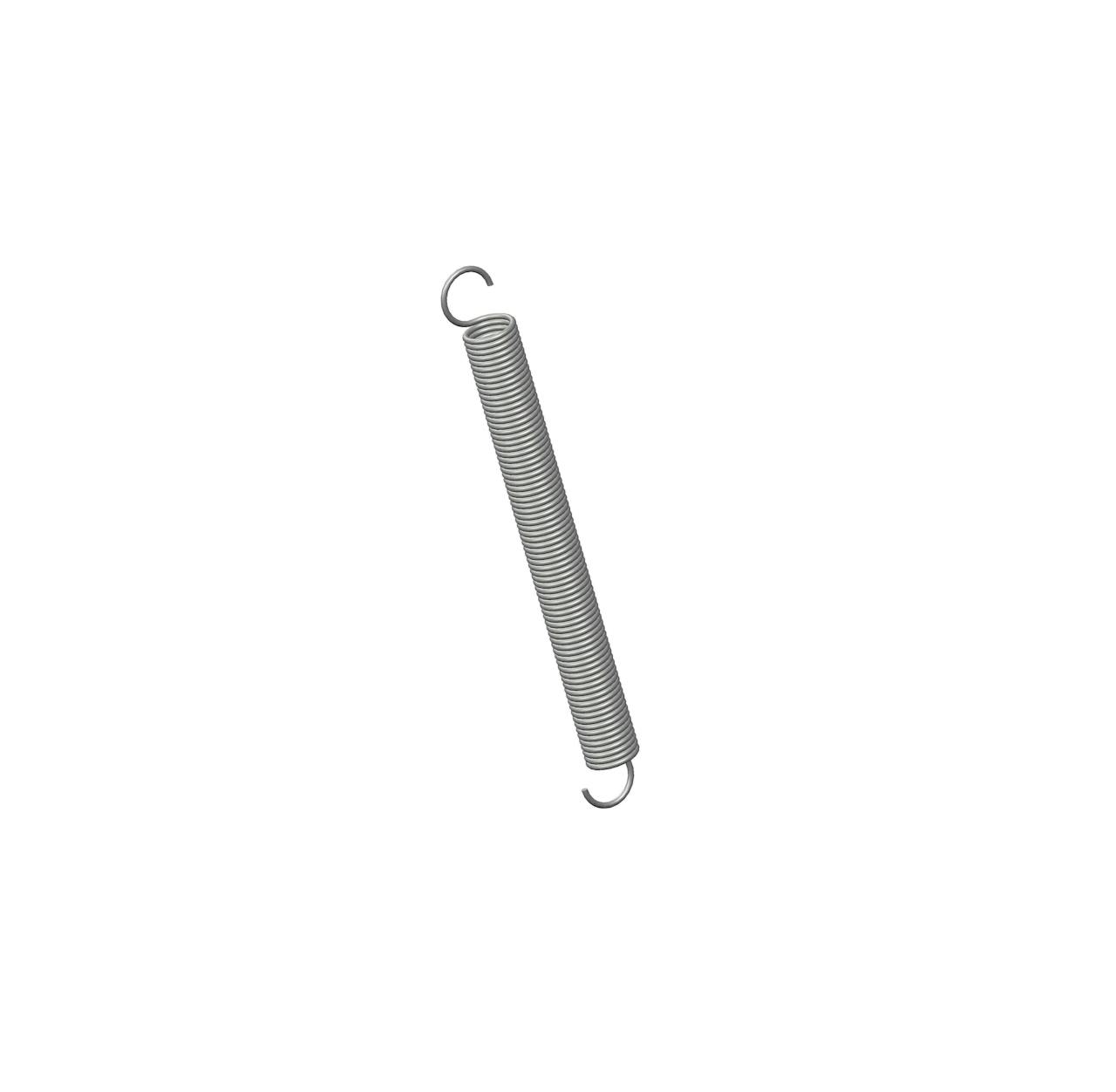

136CS - 8.5 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.812 Inch and an initial tension of 6.1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 136
Ends Machine Hook
Finish Zinc
Initial Tension 6.1 lb
Length 8.5 in
Material High Carbon Steel
Outside Diameter 0.812 in
Part Type Standard
Rate 3.2 lbs/in
SKU 136CS
Sugg Max Deflection 7.3 in
Sugg Max Load 29 lbf
Wind Direction Left
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 136
Ends Machine Hook
Finish Zinc
Initial Tension 2.77 kg
Length 215.9 mm
Material High Carbon Steel
Outside Diameter 20.62 mm
Part Type Standard
Rate 0.56 N/mm
SKU 136CS
Sugg Max Deflection 185.42 mm
Sugg Max Load 128.99 N
Wind Direction Left
Wire Diameter 2.31 mm
