Century Spring

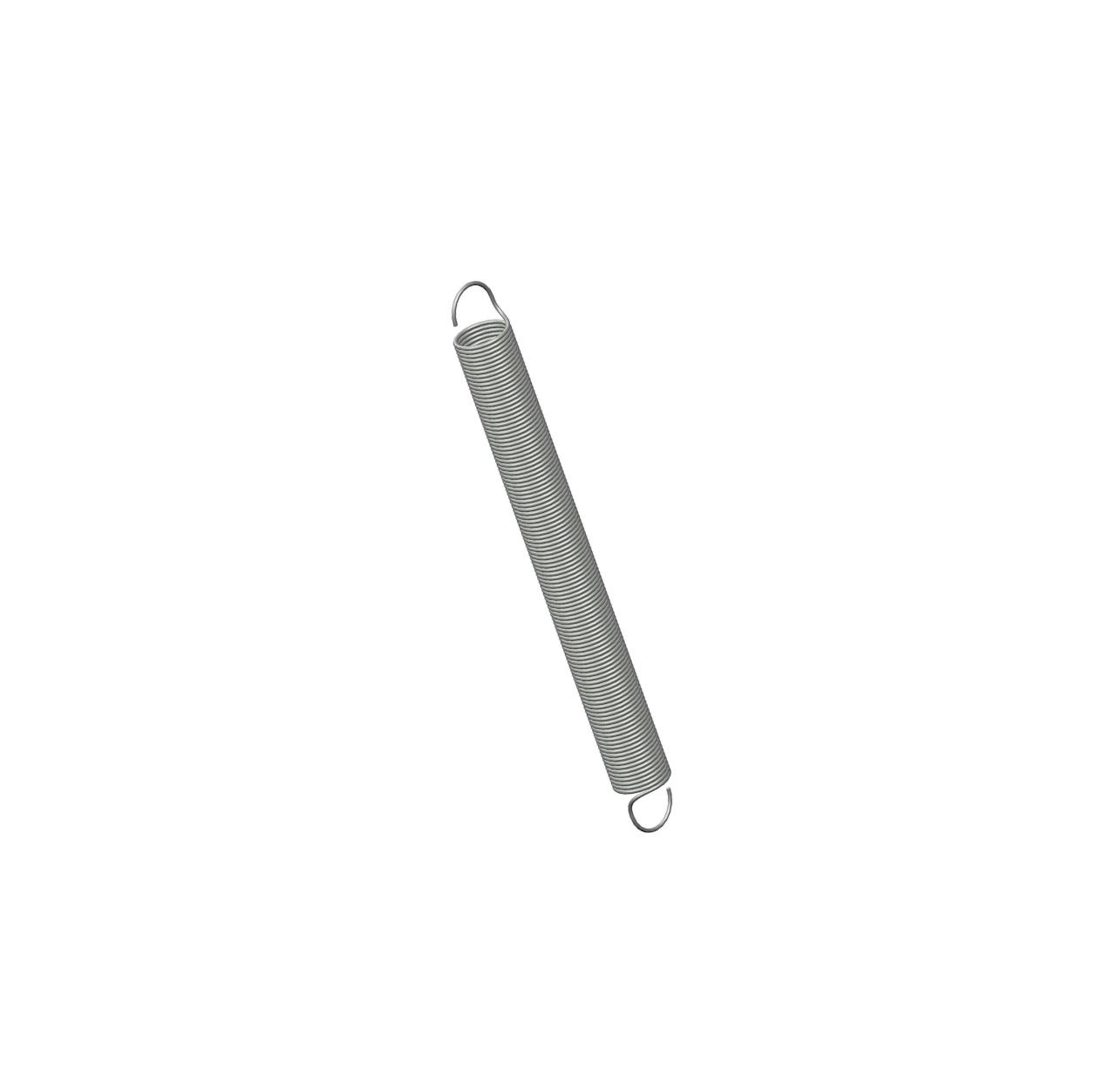

133CS - 8.499 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.812 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 133
Ends Machine Hook
Finish Zinc
Initial Tension 1 lb
Length 8.499 in
Material High Carbon Steel
Outside Diameter 0.812 in
Part Type Standard
Rate 0.42 lbs/in
SKU 133CS
Sugg Max Deflection 21 in
Sugg Max Load 9.6 lbf
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 133
Ends Machine Hook
Finish Zinc
Initial Tension 0.45 kg
Length 215.87 mm
Material High Carbon Steel
Outside Diameter 20.62 mm
Part Type Standard
Rate 0.07 N/mm
SKU 133CS
Sugg Max Deflection 533.4 mm
Sugg Max Load 42.7 N
Wind Direction Left
Wire Diameter 1.59 mm
