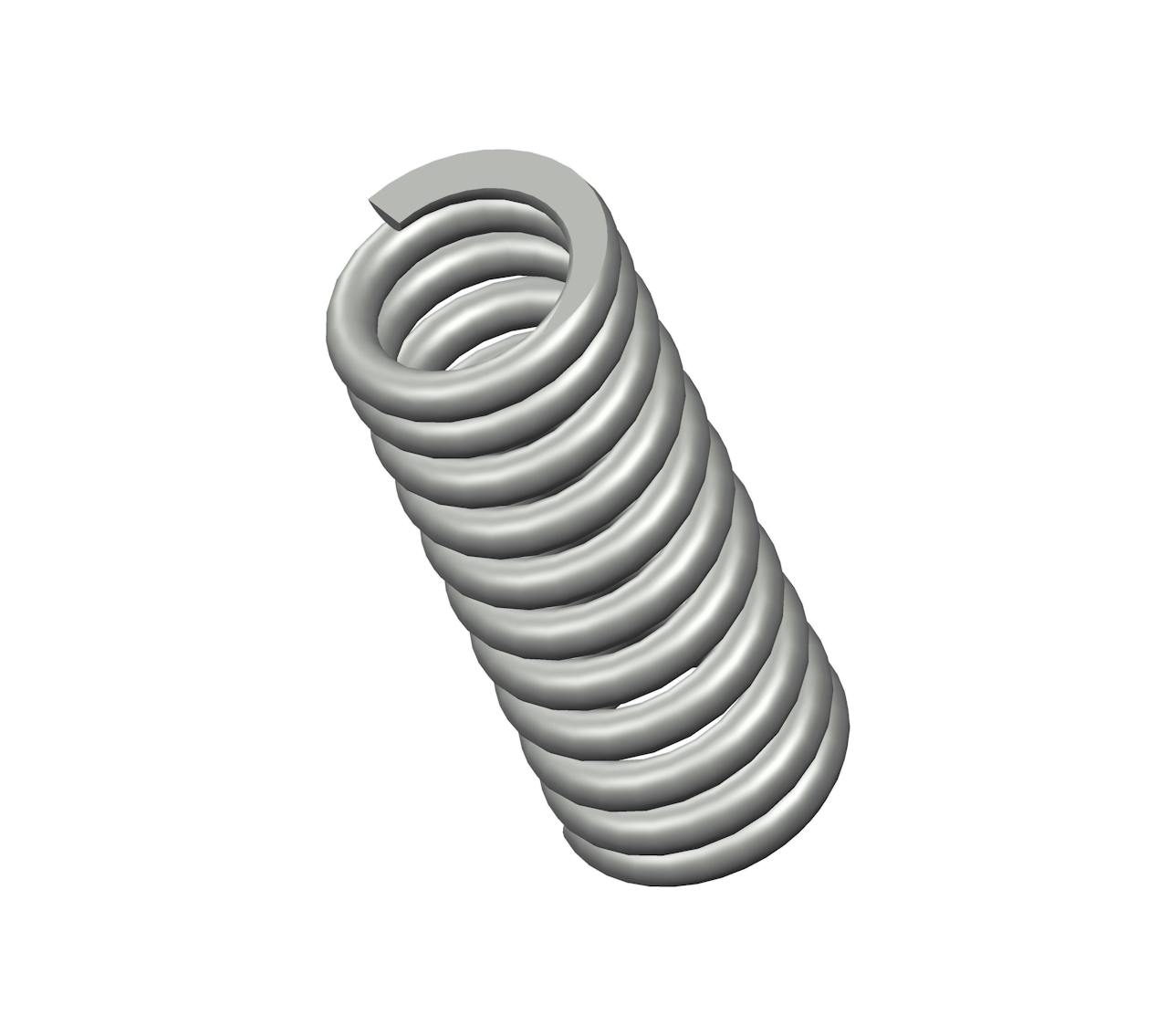

12755CS - 2.84" Oil Tempered Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from oil tempered with 10.8 coils and closed & ground ends. This spring features an O.D. of 1.14", and an I.D. of 0.766".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 12755 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.84 in |
| Inside Diameter | 0.766 in |
| Material | Oil Tempered |
| Outside Diameter | 1.14 in |
| Part Type | Standard |
| Rate | 232 lbs/in |
| SKU | 12755CS |
| Solid Length | 2.01 in |
| Suggested Max Deflection | 0.77 in |
| Suggested Max Load | 178 lbf |
| Total Coils | 10.8 |
| Wire Diameter | 0.187 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 12755 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 72.14 mm |
| Inside Diameter | 19.46 mm |
| Material | Oil Tempered |
| Outside Diameter | 28.96 mm |
| Part Type | Standard |
| Rate | 40.62 N/mm |
| SKU | 12755CS |
| Solid Length | 51.05 mm |
| Suggested Max Deflection | 19.56 mm |
| Suggested Max Load | 791.74 N |
| Total Coils | 10.8 |
| Wire Diameter | 4.75 mm |
The 12755CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.187" diameter oil tempered, the 12755 spring design exhibits reliable strength across its 10.8 active coils, withstanding repeated compression cycles with a maximum load of 178 lbf without succumbing to fatigue.
We manufacture the 12755 design to provide a compression spring that is 2.84" long at rest and provides a consistent rate of 232 lbs/in along its recommended maximum of 0.77" deflection. For best results, your application should fully accommodate the inner (0.766") and outer (1.14") diameters of this spring and be designed for its closed & ground end configuration.
We manufacture the 12755 design to provide a compression spring that is 2.84" long at rest and provides a consistent rate of 232 lbs/in along its recommended maximum of 0.77" deflection. For best results, your application should fully accommodate the inner (0.766") and outer (1.14") diameters of this spring and be designed for its closed & ground end configuration.
