12583CS - 0.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

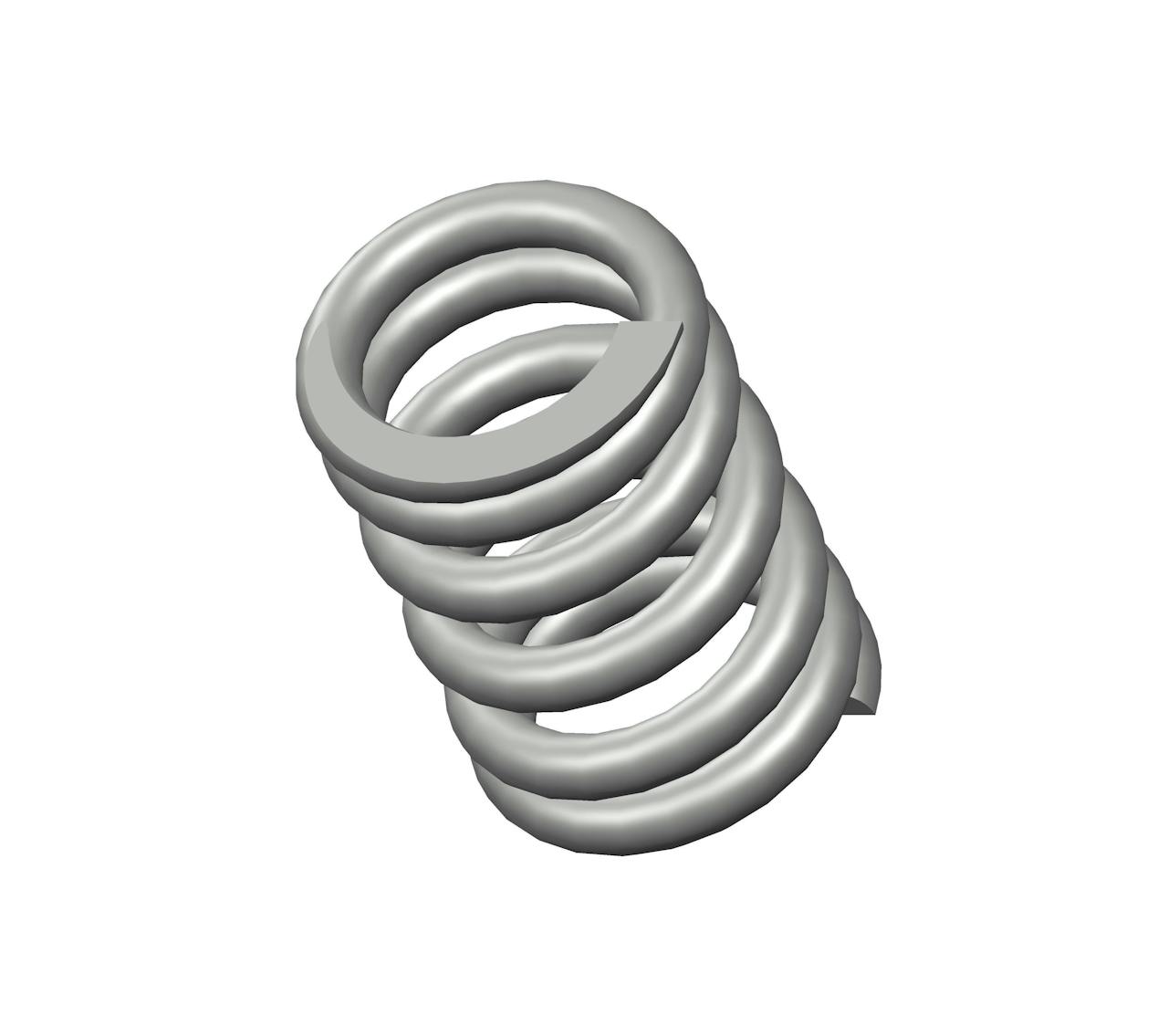

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.34".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12583
Ends Closed & Ground
Finish None
Free Length 0.75 in
Inside Diameter 0.34 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 199 lbs/in
SKU 12583CS
Solid Length 0.48 in
Suggested Max Deflection 0.17 in
Suggested Max Load 34 lbf
Total Coils 6
Wire Diameter 0.08 in
The compression spring 12583CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 12583 compression spring design exhibits exceptional tensile strength and resilience.

The 12583 design is manufactured with a free length of 0.75", with an outer diameter of 0.5", an inner diameter of 0.34", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 199 lbs/in.

The 12583CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 12583 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
