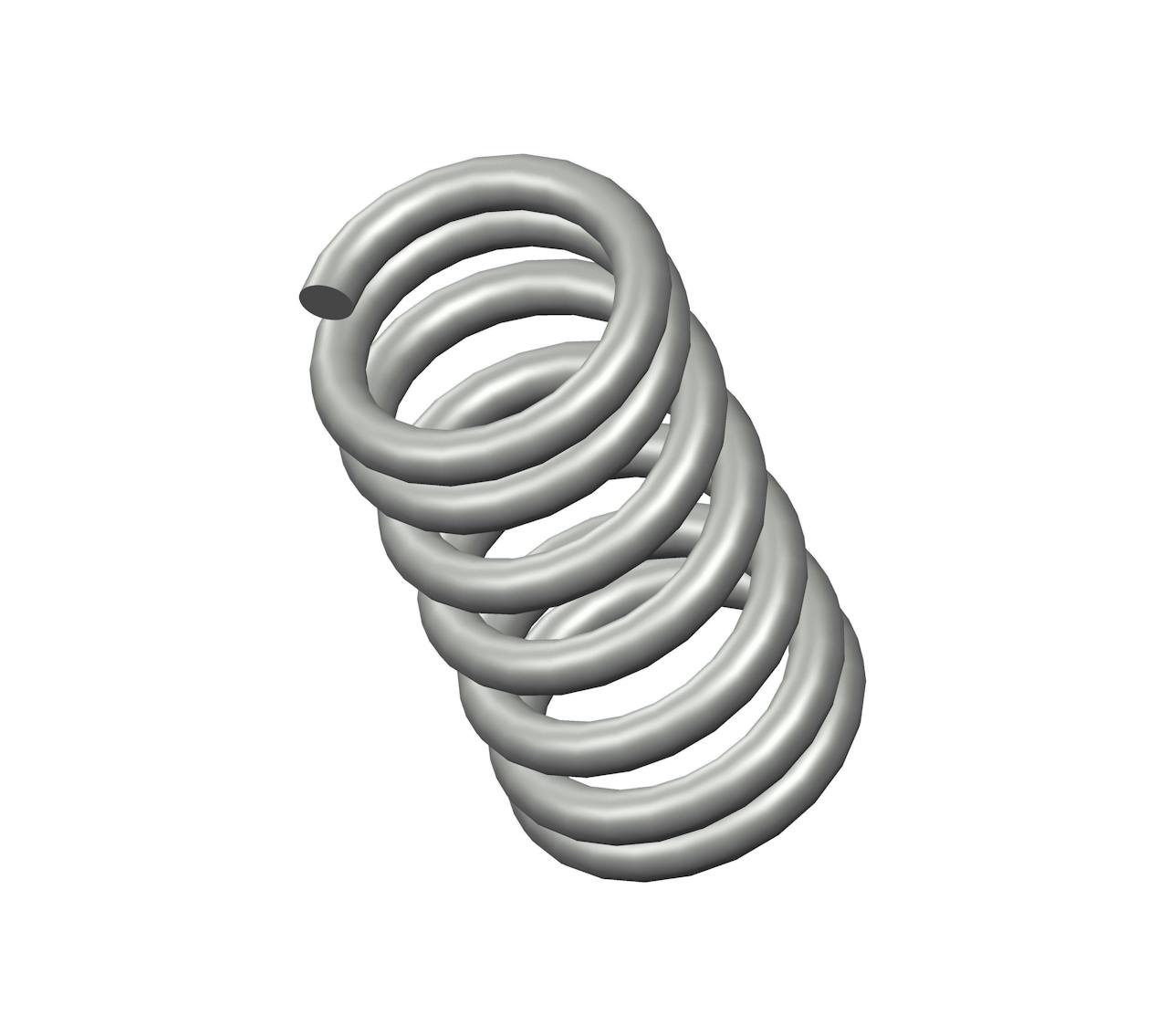

12582CS - 1.3" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 7 coils and closed ends. This spring features an O.D. of 0.671", and an I.D. of 0.475".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12582
Ends Closed
Finish None
Free Length 1.3 in
Inside Diameter 0.475 in
Material Spring Steel
Outside Diameter 0.671 in
Part Type Standard
Rate 141 lbs/in
SKU 12582CS
Solid Length 0.78 in
Suggested Max Deflection 0.32 in
Suggested Max Load 45 lbf
Total Coils 7
Wire Diameter 0.098 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12582
Ends Closed
Finish None
Free Length 33.02 mm
Inside Diameter 12.07 mm
Material Spring Steel
Outside Diameter 17.04 mm
Part Type Standard
Rate 24.69 N/mm
SKU 12582CS
Solid Length 19.81 mm
Suggested Max Deflection 8.13 mm
Suggested Max Load 200.16 N
Total Coils 7
Wire Diameter 2.49 mm
The 12582CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.098" diameter spring steel, the 12582 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 45 lbf without succumbing to fatigue.

We manufacture the 12582 design to provide a compression spring that is 1.3" long at rest and provides a consistent rate of 141 lbs/in along its recommended maximum of 0.32" deflection. For best results, your application should fully accommodate the inner (0.475") and outer (0.671") diameters of this spring and be designed for its closed end configuration.
