Century Spring

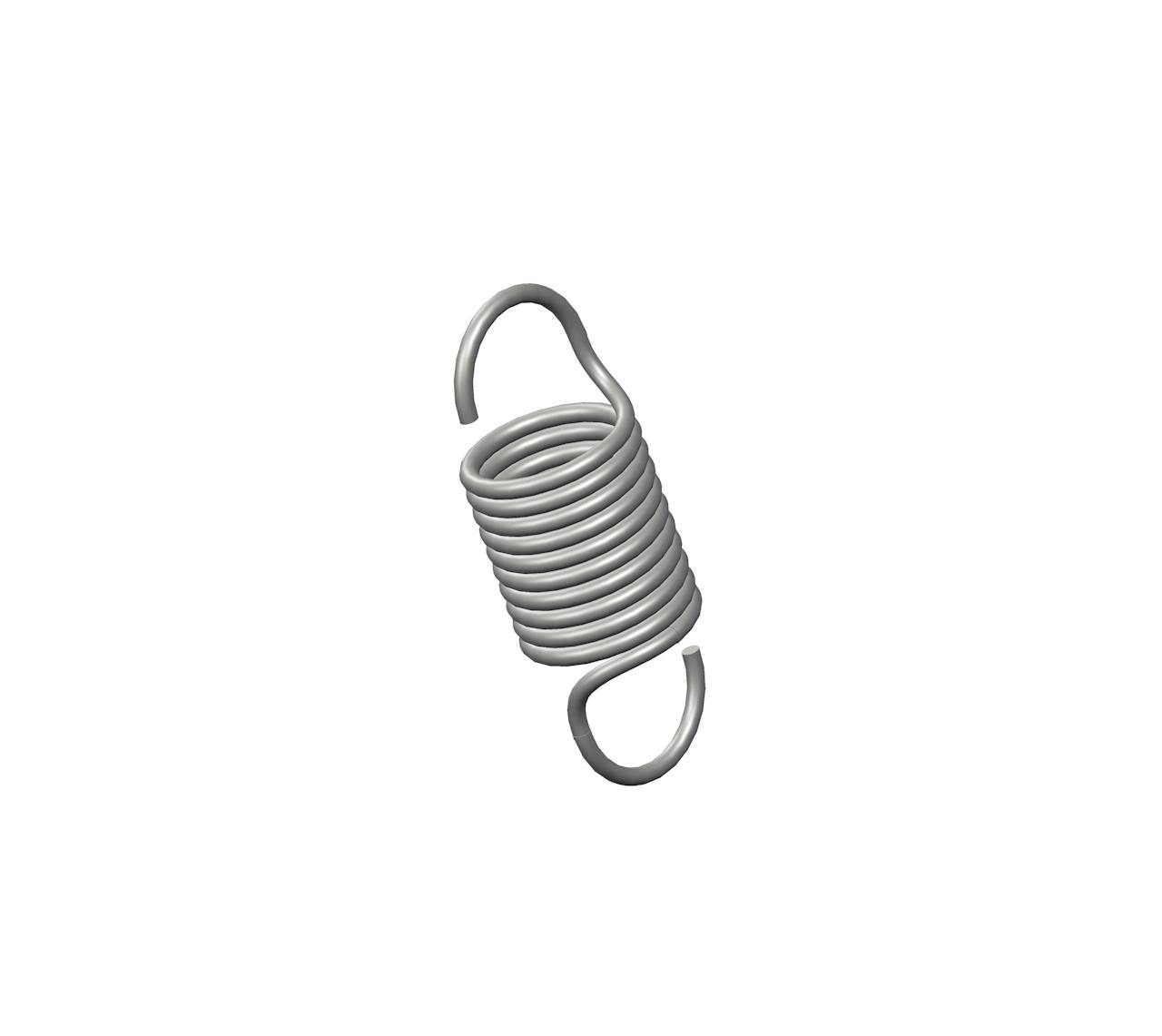

12545CS - 1.81 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.593 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12545
Ends Machine Hook
Finish Zinc
Initial Tension 2 lb
Length 1.81 in
Material High Carbon Steel
Outside Diameter 0.593 in
Part Type Standard
Rate 8.1 lbs/in
SKU 12545CS
Sugg Max Deflection 1.5 in
Sugg Max Load 14 lbf
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12545
Ends Machine Hook
Finish Zinc
Initial Tension 0.91 kg
Length 45.97 mm
Material High Carbon Steel
Outside Diameter 15.06 mm
Part Type Standard
Rate 1.42 N/mm
SKU 12545CS
Sugg Max Deflection 38.1 mm
Sugg Max Load 62.27 N
Wind Direction Left
Wire Diameter 1.59 mm
