Century Spring

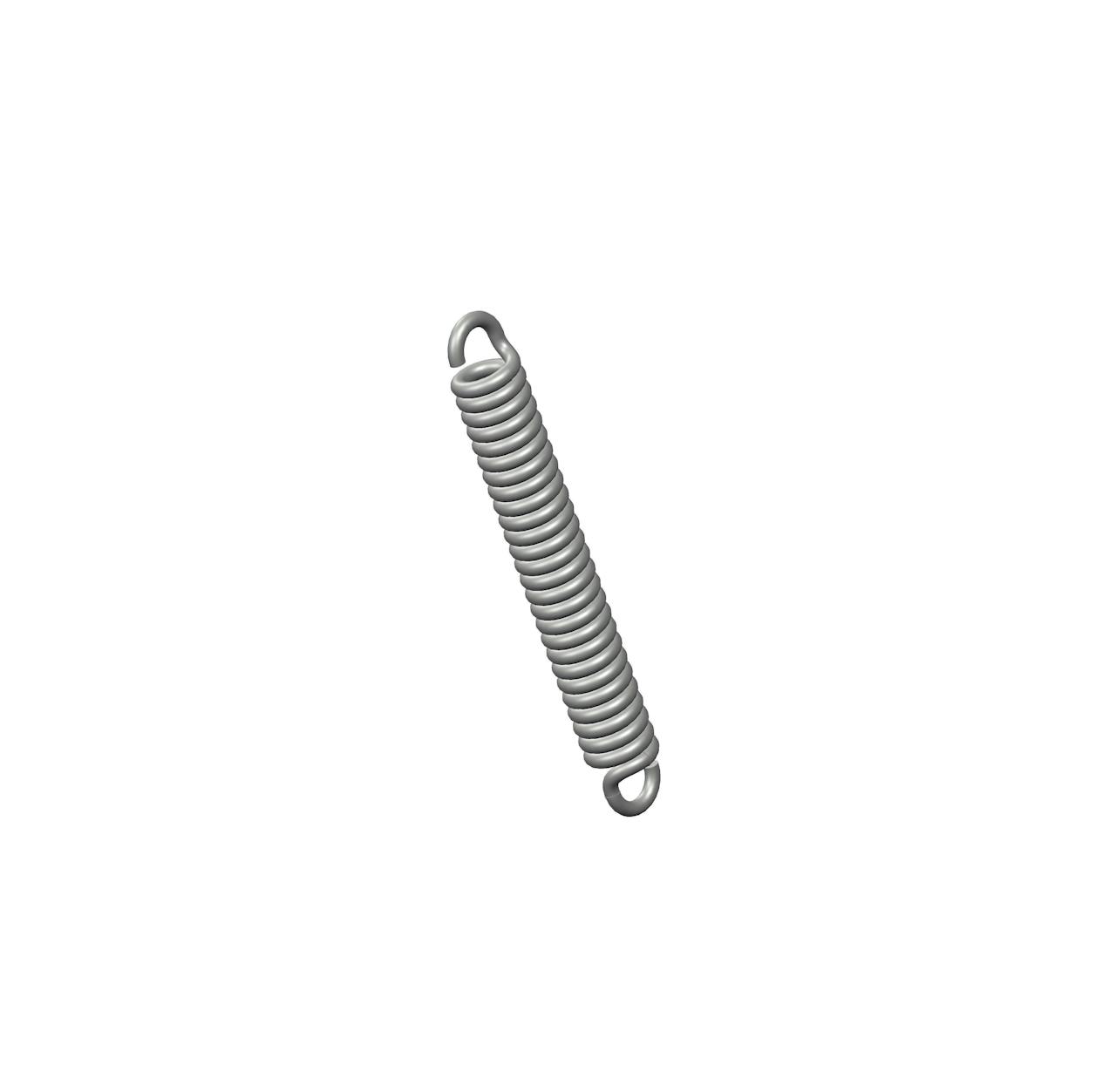

12536CS - 1.44 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.188 Inch and an initial tension of 6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12536
Ends Machine Hook
Finish None
Initial Tension 6 lb
Length 1.44 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 48 lbs/in
SKU 12536CS
Sugg Max Deflection 0.31 in
Sugg Max Load 21 lbf
Wind Direction Left
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12536
Ends Machine Hook
Finish None
Initial Tension 2.72 kg
Length 36.58 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 8.4 N/mm
SKU 12536CS
Sugg Max Deflection 7.87 mm
Sugg Max Load 93.41 N
Wind Direction Left
Wire Diameter 1.07 mm
