Century Spring

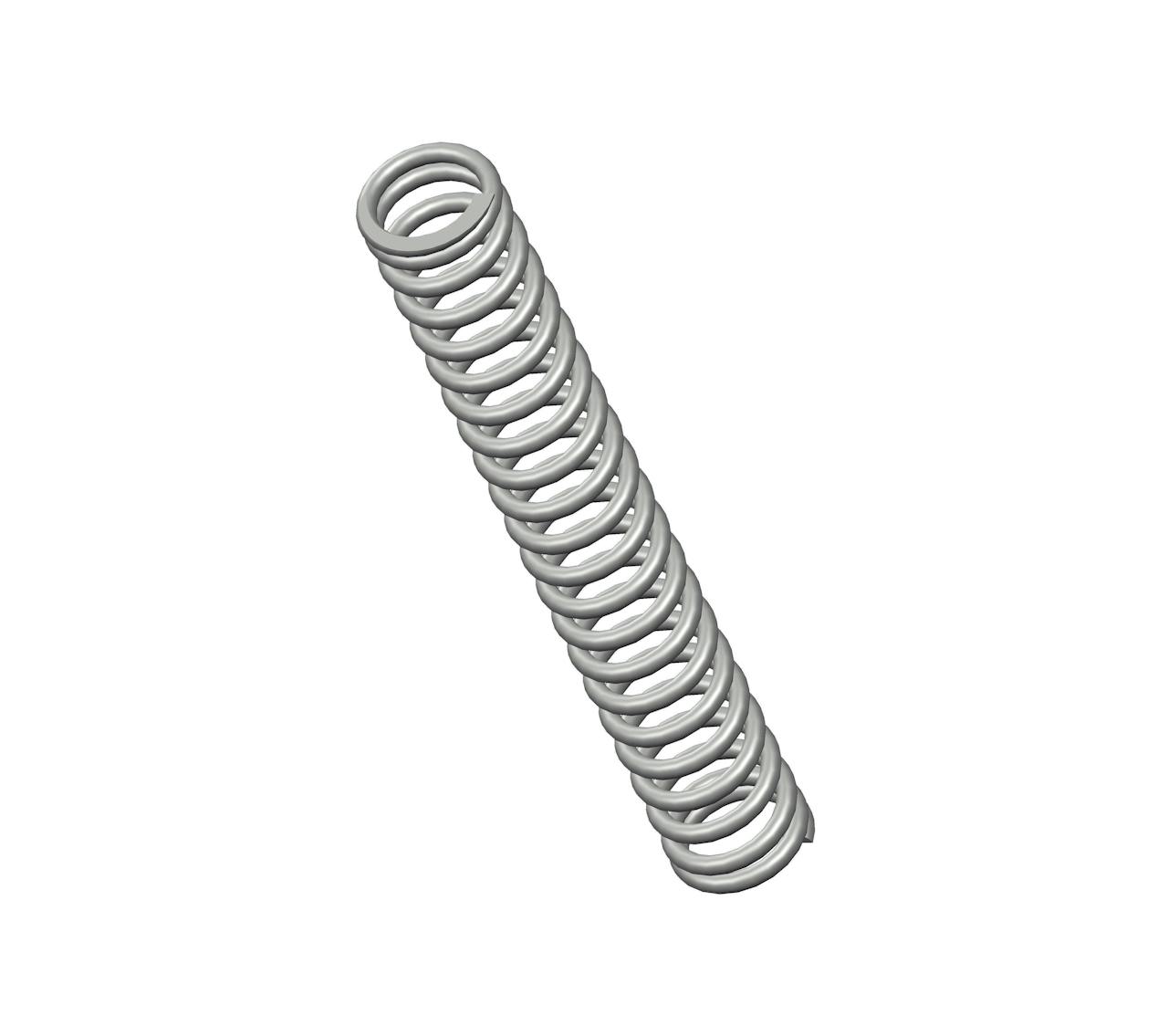

12473CS - 2.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 22 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.26".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12473
Ends Closed & Ground
Finish Zinc
Free Length 2.5 in
Inside Diameter 0.26 in
Material Spring Steel
Outside Diameter 0.36 in
Part Type Standard
Rate 15 lbs/in
SKU 12473CS
Solid Length 1.1 in
Suggested Max Deflection 0.8 in
Suggested Max Load 12 lbf
Total Coils 22
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12473
Ends Closed & Ground
Finish Zinc
Free Length 63.5 mm
Inside Diameter 6.6 mm
Material Spring Steel
Outside Diameter 9.14 mm
Part Type Standard
Rate 2.63 N/mm
SKU 12473CS
Solid Length 27.94 mm
Suggested Max Deflection 20.32 mm
Suggested Max Load 53.38 N
Total Coils 22
Wire Diameter 1.27 mm
The 12473CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.05" diameter spring steel, the 12473 spring design exhibits reliable strength across its 22 active coils, withstanding repeated compression cycles with a maximum load of 12 lbf without succumbing to fatigue.

We manufacture the 12473 design to provide a compression spring that is 2.5" long at rest and provides a consistent rate of 15 lbs/in along its recommended maximum of 0.8" deflection. For best results, your application should fully accommodate the inner (0.26") and outer (0.36") diameters of this spring and be designed for its closed & ground end configuration.
