Century Spring

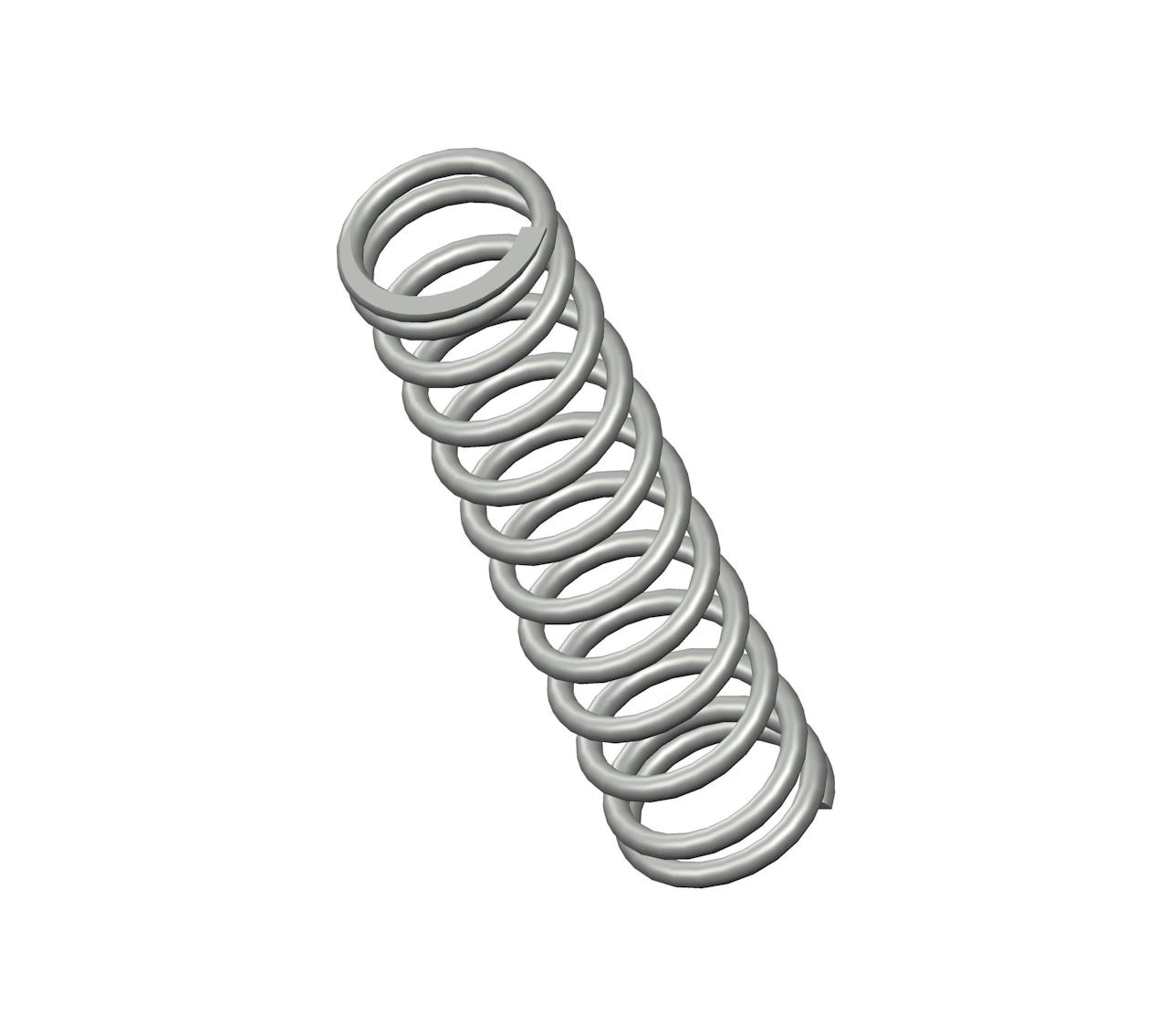

12467CS - 2.44" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 12 coils and closed & ground ends. This spring features an O.D. of 0.593", and an I.D. of 0.453".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12467
Ends Closed & Ground
Finish Zinc
Free Length 2.44 in
Inside Diameter 0.453 in
Material Spring Steel
Outside Diameter 0.593 in
Part Type Standard
Rate 24 lbs/in
SKU 12467CS
Solid Length 0.84 in
Suggested Max Deflection 0.81 in
Suggested Max Load 20 lbf
Total Coils 12
Wire Diameter 0.07 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12467
Ends Closed & Ground
Finish Zinc
Free Length 61.98 mm
Inside Diameter 11.51 mm
Material Spring Steel
Outside Diameter 15.06 mm
Part Type Standard
Rate 4.2 N/mm
SKU 12467CS
Solid Length 21.34 mm
Suggested Max Deflection 20.57 mm
Suggested Max Load 88.96 N
Total Coils 12
Wire Diameter 1.78 mm
The 12467CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.07" diameter spring steel, the 12467 spring design exhibits reliable strength across its 12 active coils, withstanding repeated compression cycles with a maximum load of 20 lbf without succumbing to fatigue.

We manufacture the 12467 design to provide a compression spring that is 2.44" long at rest and provides a consistent rate of 24 lbs/in along its recommended maximum of 0.81" deflection. For best results, your application should fully accommodate the inner (0.453") and outer (0.593") diameters of this spring and be designed for its closed & ground end configuration.
