12395CS - 6.13" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

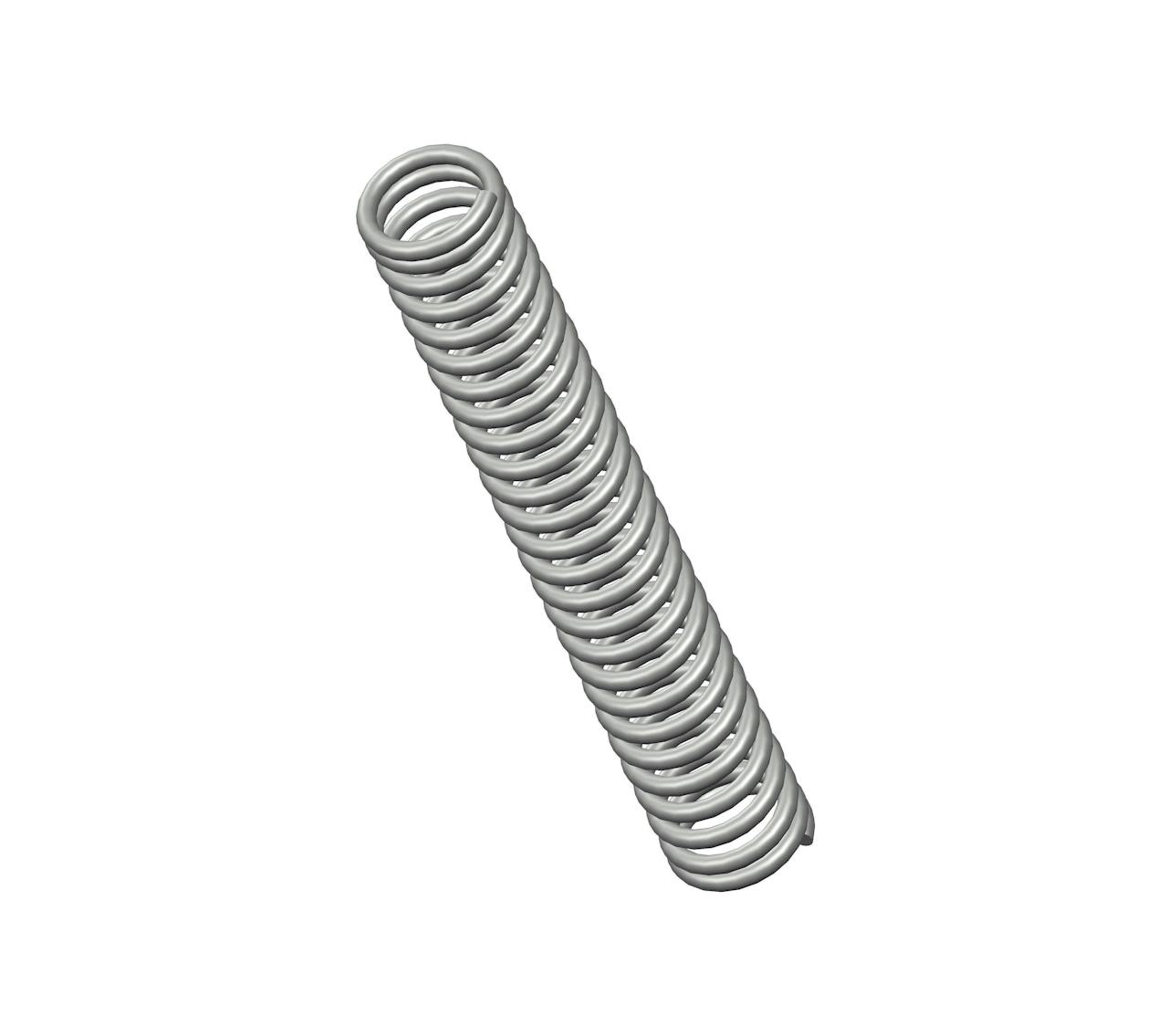

Compression spring manufactured from spring steel with 26 coils and closed ends. This spring features an O.D. of 0.89", and an I.D. of 0.65".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 12395 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 6.13 in |
| Inside Diameter | 0.65 in |
| Material | Spring Steel |
| Outside Diameter | 0.89 in |
| Part Type | Standard |
| Rate | 27 lbs/in |
| SKU | 12395CS |
| Solid Length | 3.24 in |
| Suggested Max Deflection | 2.2 in |
| Suggested Max Load | 60 lbf |
| Total Coils | 26 |
| Wire Diameter | 0.12 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 12395 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 155.7 mm |
| Inside Diameter | 16.51 mm |
| Material | Spring Steel |
| Outside Diameter | 22.61 mm |
| Part Type | Standard |
| Rate | 4.73 N/mm |
| SKU | 12395CS |
| Solid Length | 82.3 mm |
| Suggested Max Deflection | 55.88 mm |
| Suggested Max Load | 266.88 N |
| Total Coils | 26 |
| Wire Diameter | 3.05 mm |
The compression spring 12395CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 12395 compression spring design exhibits exceptional tensile strength and resilience.
The 12395 design is manufactured with a free length of 6.13", with an outer diameter of 0.89", an inner diameter of 0.65", and a total of 26 coils, expertly designed to deliver consistent compression characteristics including a rate of 27 lbs/in.
The 12395CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 12395 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 12395 design is manufactured with a free length of 6.13", with an outer diameter of 0.89", an inner diameter of 0.65", and a total of 26 coils, expertly designed to deliver consistent compression characteristics including a rate of 27 lbs/in.
The 12395CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 12395 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
