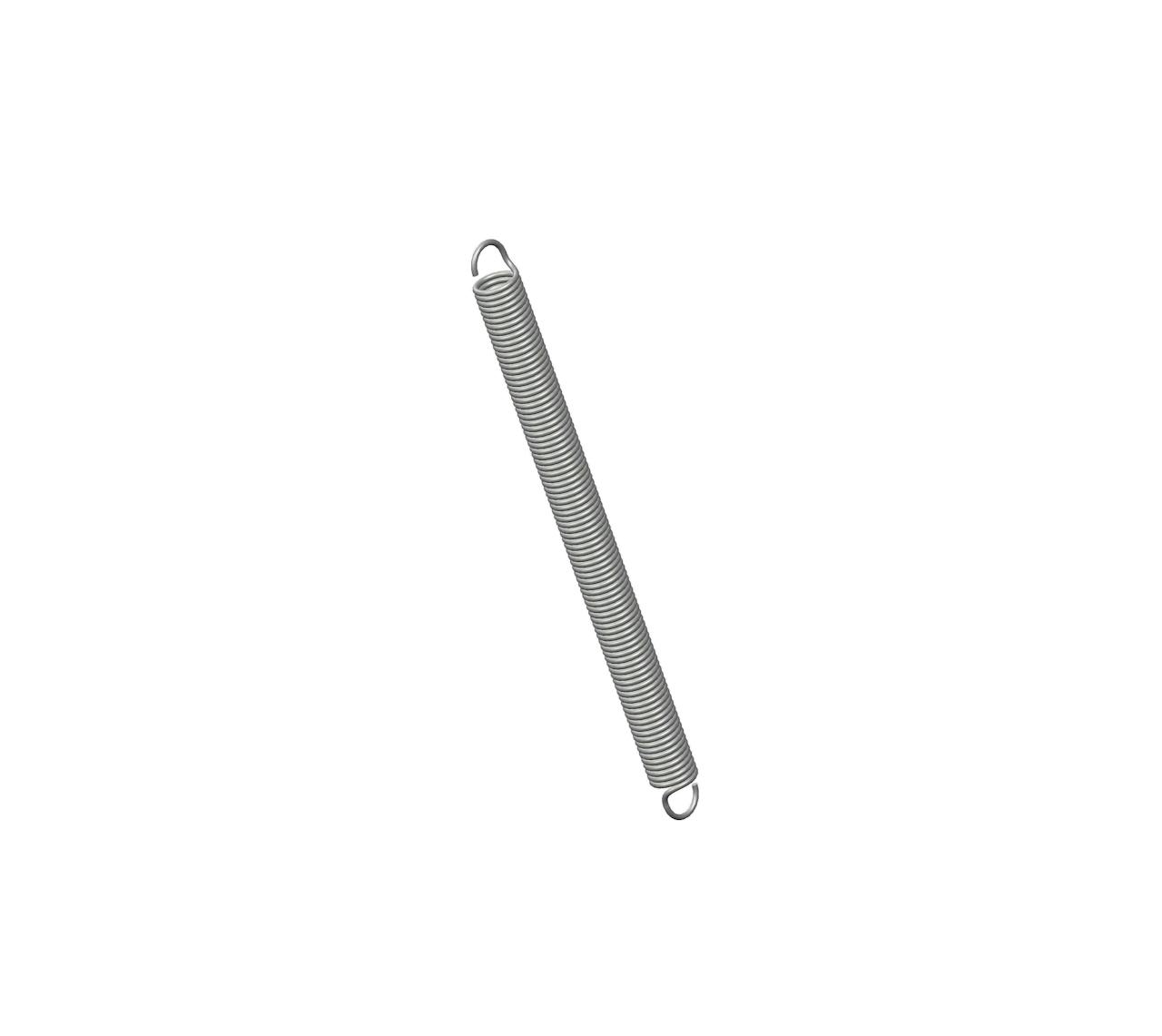

12385CS - 7.75 Inch Spring Steel Extension Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Regular extension spring in Spring Steel. This spring features an O.D. of 0.578 Inch and an initial tension of 5 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 12385 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 5 lb |
| Length | 7.75 in |
| Material | Spring Steel |
| Outside Diameter | 0.578 in |
| Part Type | Standard |
| Rate | 3.8 lbs/in |
| SKU | 12385CS |
| Sugg Max Deflection | 5.1 in |
| Sugg Max Load | 24 lbf |
| Wire Diameter | 0.075 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 12385 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 2.27 kg |
| Length | 196.85 mm |
| Material | Spring Steel |
| Outside Diameter | 14.68 mm |
| Part Type | Standard |
| Rate | 0.67 N/mm |
| SKU | 12385CS |
| Sugg Max Deflection | 129.54 mm |
| Sugg Max Load | 106.75 N |
| Wire Diameter | 1.91 mm |
