Century Spring

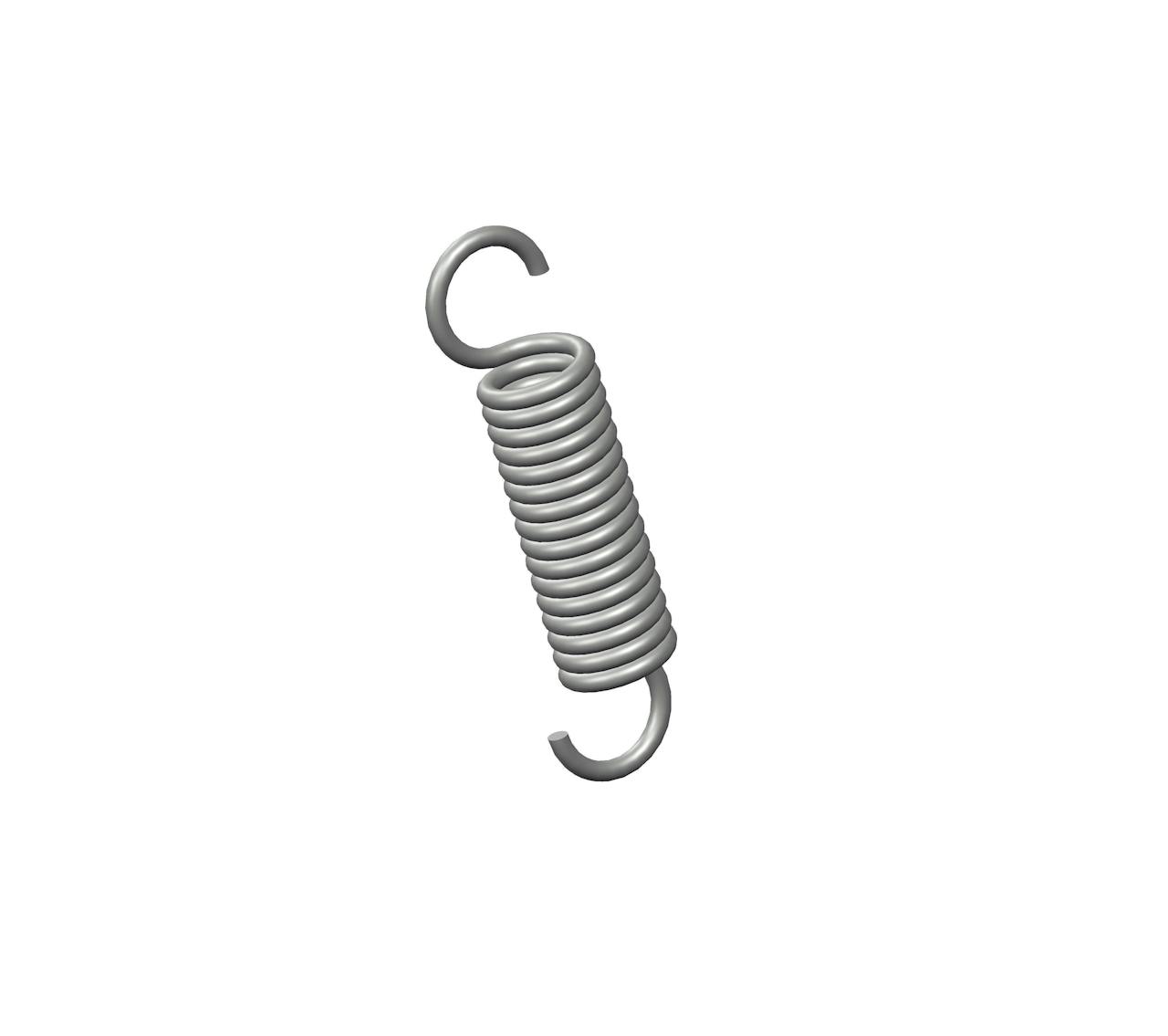

12373CS - 3.25 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.718 Inch and an initial tension of 23 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12373
Ends Full Loop
Finish Zinc
Initial Tension 23 lb
Length 3.25 in
Material Spring Steel
Outside Diameter 0.718 in
Part Type Standard
Rate 67 lbs/in
SKU 12373CS
Sugg Max Deflection 0.83 in
Sugg Max Load 78 lbf
Wind Direction Left
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12373
Ends Full Loop
Finish Zinc
Initial Tension 10.43 kg
Length 82.55 mm
Material Spring Steel
Outside Diameter 18.24 mm
Part Type Standard
Rate 11.73 N/mm
SKU 12373CS
Sugg Max Deflection 21.08 mm
Sugg Max Load 346.94 N
Wind Direction Left
Wire Diameter 3.05 mm
