Century Spring

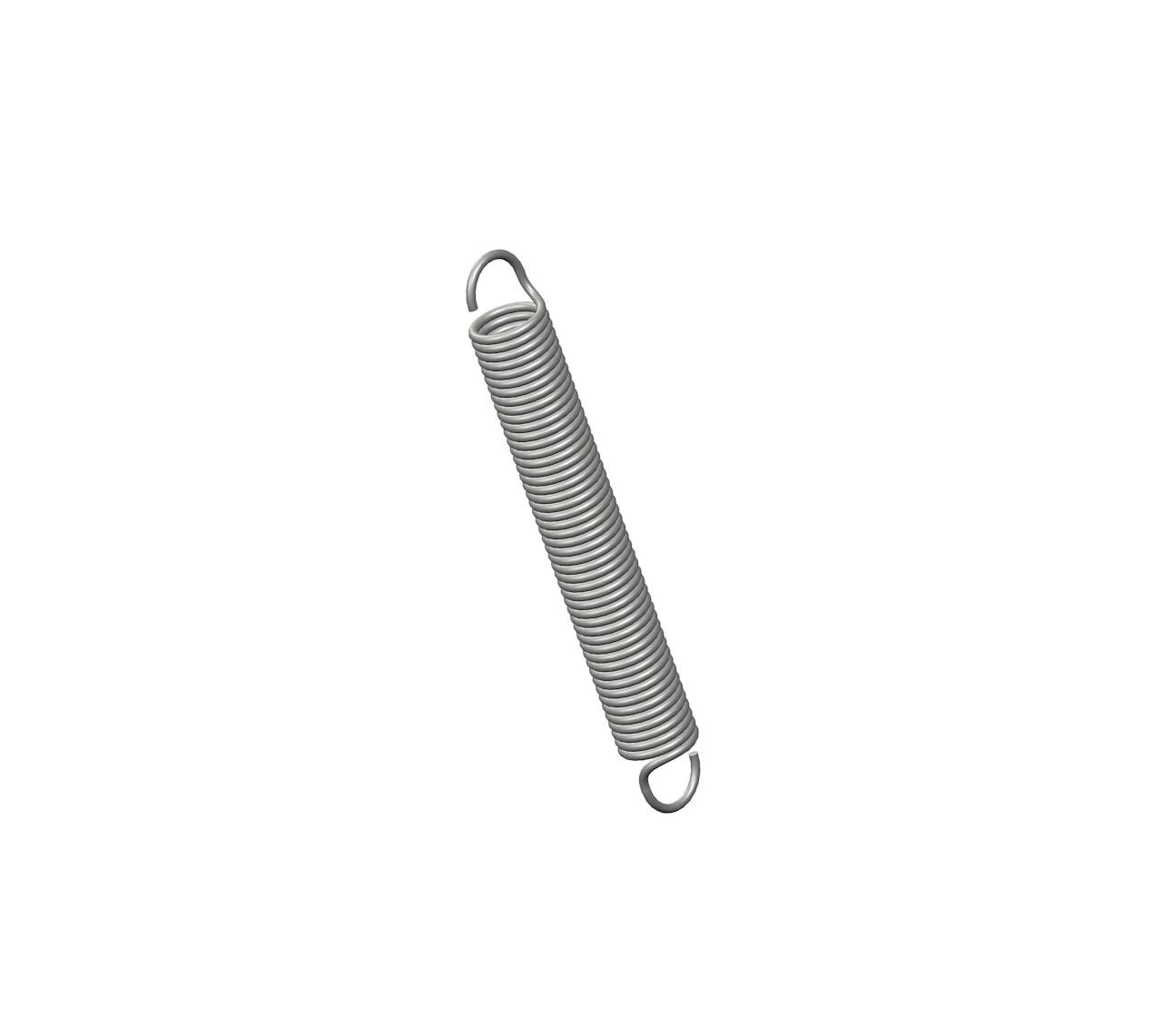

12352CS - 3.91 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12352
Ends Full Loop
Finish Zinc
Initial Tension 3 lb
Length 3.91 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 4.3 lbs/in
SKU 12352CS
Sugg Max Deflection 3 in
Sugg Max Load 15 lbf
Wind Direction Left
Wire Diameter 0.061 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12352
Ends Full Loop
Finish Zinc
Initial Tension 1.36 kg
Length 99.31 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.75 N/mm
SKU 12352CS
Sugg Max Deflection 76.2 mm
Sugg Max Load 66.72 N
Wind Direction Left
Wire Diameter 1.55 mm
