Century Spring

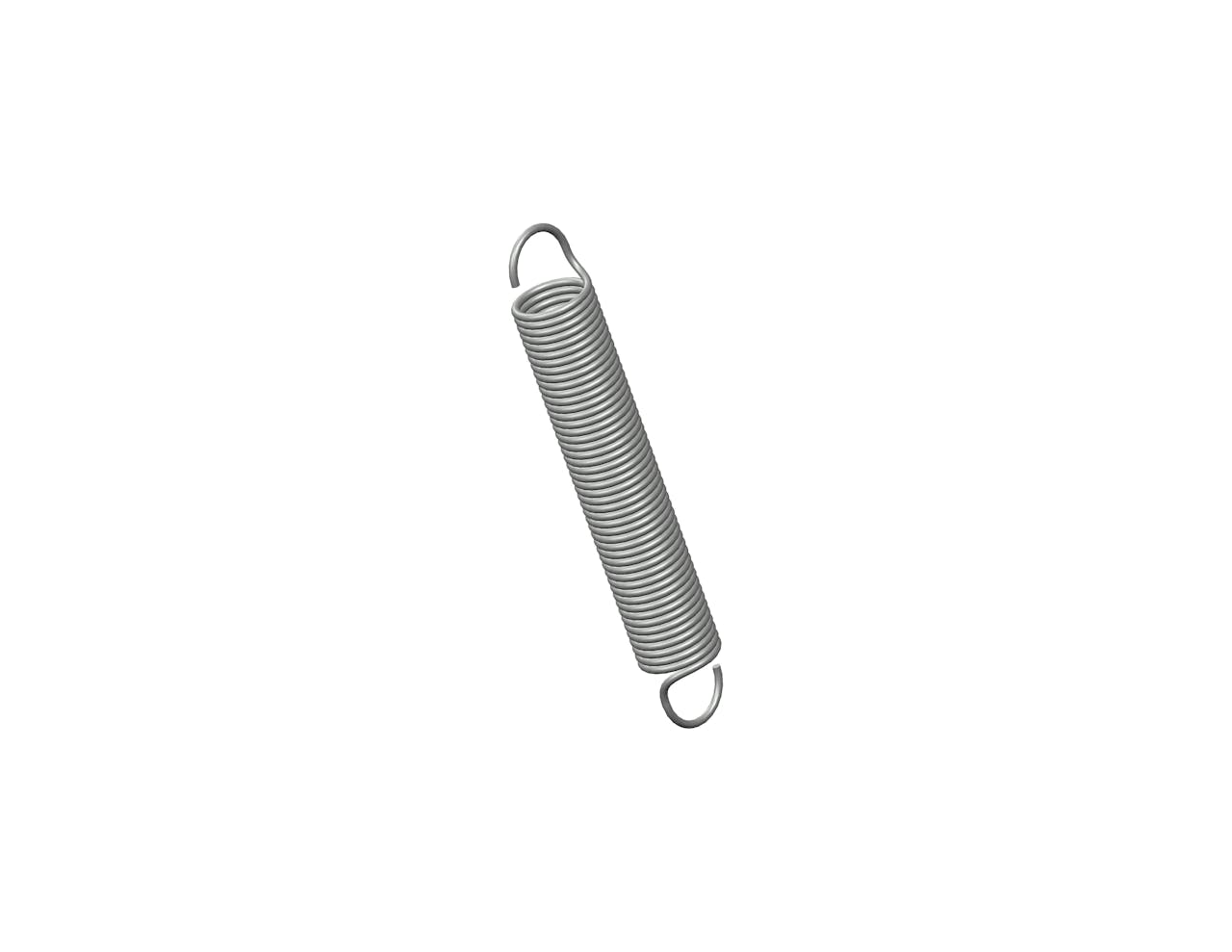

12348CS - 13.5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 2 Inch and an initial tension of 22 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12348
Ends Machine Hook
Finish None
Initial Tension 22 lb
Length 13.5 in
Material Spring Steel
Outside Diameter 2 in
Part Type Standard
Rate 8 lbs/in
SKU 12348CS
Sugg Max Deflection 12 in
Sugg Max Load 116 lbf
Wind Direction Left
Wire Diameter 0.205 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12348
Ends Machine Hook
Finish None
Initial Tension 9.98 kg
Length 342.9 mm
Material Spring Steel
Outside Diameter 50.8 mm
Part Type Standard
Rate 1.4 N/mm
SKU 12348CS
Sugg Max Deflection 304.8 mm
Sugg Max Load 515.97 N
Wind Direction Left
Wire Diameter 5.21 mm
