Century Spring

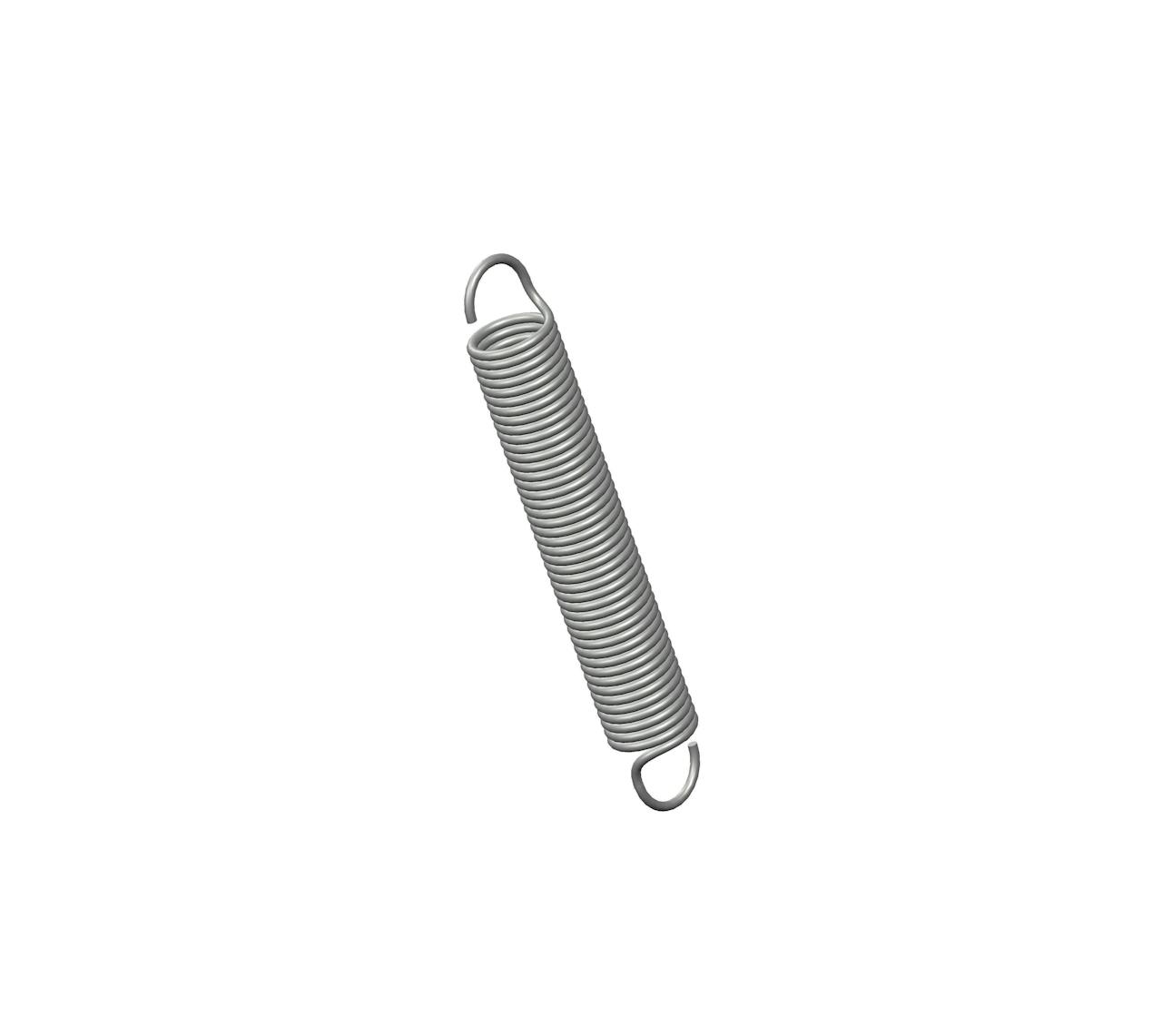

12344CS - 3 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.437 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12344
Ends Full Loop
Finish Zinc
Initial Tension 2 lb
Length 3 in
Material Spring Steel
Outside Diameter 0.437 in
Part Type Standard
Rate 3.1 lbs/in
SKU 12344CS
Sugg Max Deflection 2.6 in
Sugg Max Load 9.6 lbf
Wind Direction Left
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12344
Ends Full Loop
Finish Zinc
Initial Tension 0.91 kg
Length 76.2 mm
Material Spring Steel
Outside Diameter 11.1 mm
Part Type Standard
Rate 0.54 N/mm
SKU 12344CS
Sugg Max Deflection 66.04 mm
Sugg Max Load 42.7 N
Wind Direction Left
Wire Diameter 1.27 mm
