Century Spring

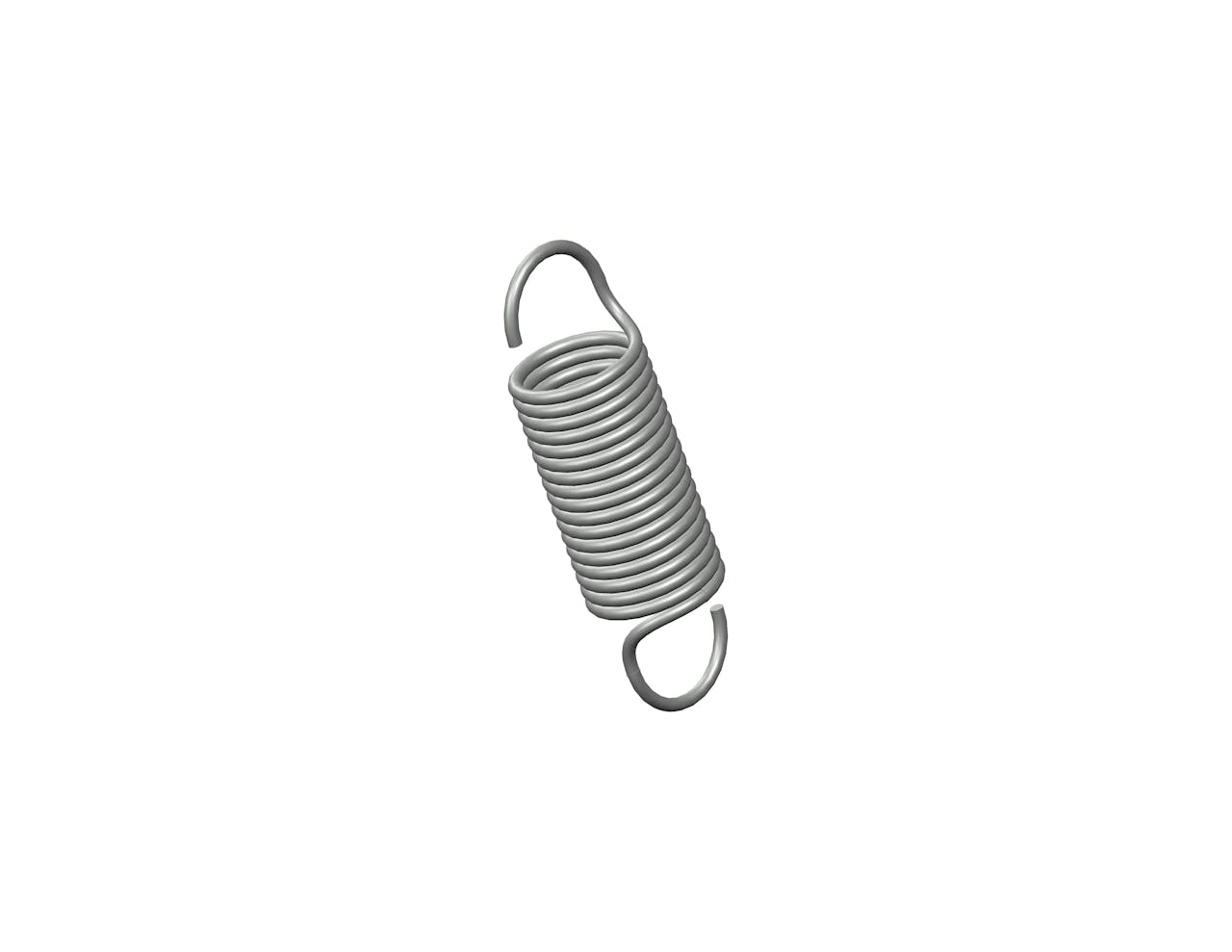

12336CS - 7.5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 2 Inch and an initial tension of 23 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12336
Ends Machine Hook
Finish Zinc
Initial Tension 23 lb
Length 7.5 in
Material Spring Steel
Outside Diameter 2 in
Part Type Standard
Rate 18 lbs/in
SKU 12336CS
Sugg Max Deflection 5.4 in
Sugg Max Load 122 lbf
Wind Direction Left
Wire Diameter 0.208 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12336
Ends Machine Hook
Finish Zinc
Initial Tension 10.43 kg
Length 190.5 mm
Material Spring Steel
Outside Diameter 50.8 mm
Part Type Standard
Rate 3.15 N/mm
SKU 12336CS
Sugg Max Deflection 137.16 mm
Sugg Max Load 542.66 N
Wind Direction Left
Wire Diameter 5.28 mm
