Century Spring

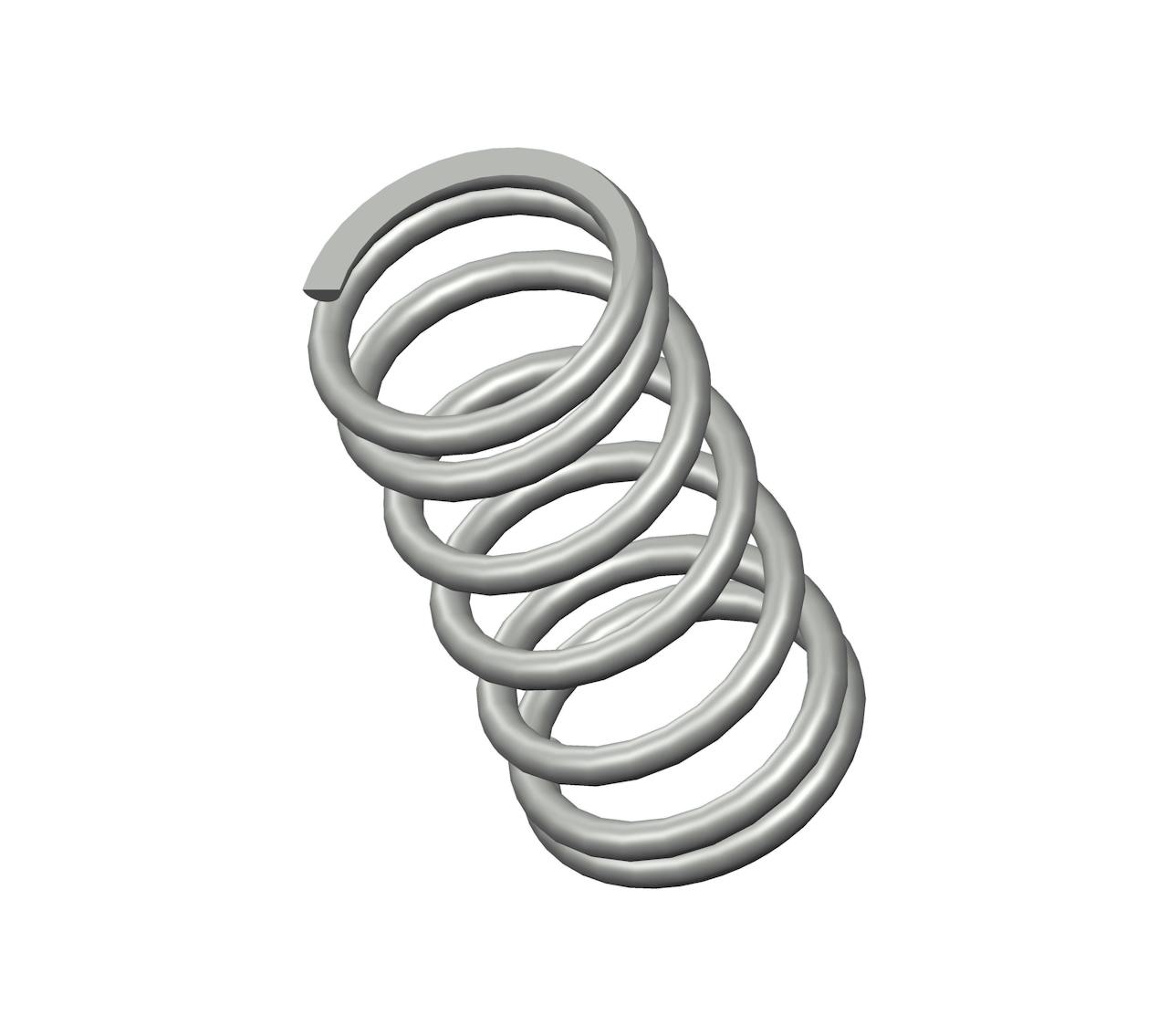

12327CS - 1.09" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.426".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12327
Ends Closed & Ground
Finish Gold Iridite
Free Length 1.09 in
Inside Diameter 0.426 in
Material Spring Steel
Outside Diameter 0.546 in
Part Type Standard
Rate 32 lbs/in
SKU 12327CS
Solid Length 0.42 in
Suggested Max Deflection 0.44 in
Suggested Max Load 14 lbf
Total Coils 7
Wire Diameter 0.06 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12327
Ends Closed & Ground
Finish Gold Iridite
Free Length 27.69 mm
Inside Diameter 10.82 mm
Material Spring Steel
Outside Diameter 13.87 mm
Part Type Standard
Rate 5.6 N/mm
SKU 12327CS
Solid Length 10.67 mm
Suggested Max Deflection 11.18 mm
Suggested Max Load 62.27 N
Total Coils 7
Wire Diameter 1.52 mm
The 12327CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.06" diameter spring steel, the 12327 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 14 lbf without succumbing to fatigue.

We manufacture the 12327 design to provide a compression spring that is 1.09" long at rest and provides a consistent rate of 32 lbs/in along its recommended maximum of 0.44" deflection. For best results, your application should fully accommodate the inner (0.426") and outer (0.546") diameters of this spring and be designed for its closed & ground end configuration.
