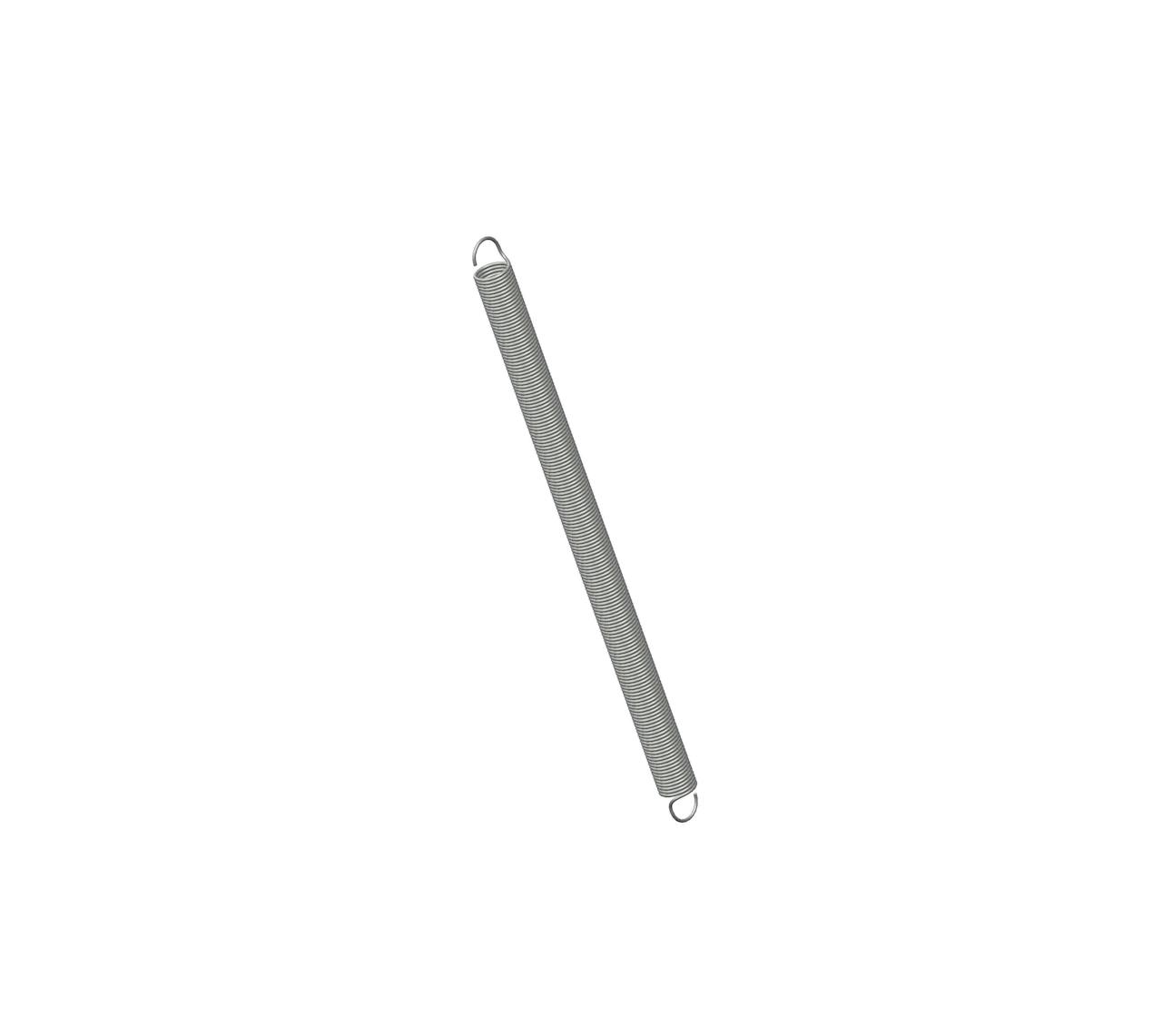

122CS - 8.5 Inch High Carbon Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 0.9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 122
Ends Machine Hook
Finish Zinc
Initial Tension 0.9 lb
Length 8.5 in
Material High Carbon Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 0.46 lbs/in
SKU 122CS
Sugg Max Deflection 14 in
Sugg Max Load 7.2 lbf
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 122
Ends Machine Hook
Finish Zinc
Initial Tension 0.41 kg
Length 215.9 mm
Material High Carbon Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.08 N/mm
SKU 122CS
Sugg Max Deflection 355.6 mm
Sugg Max Load 32.03 N
Wire Diameter 1.19 mm
