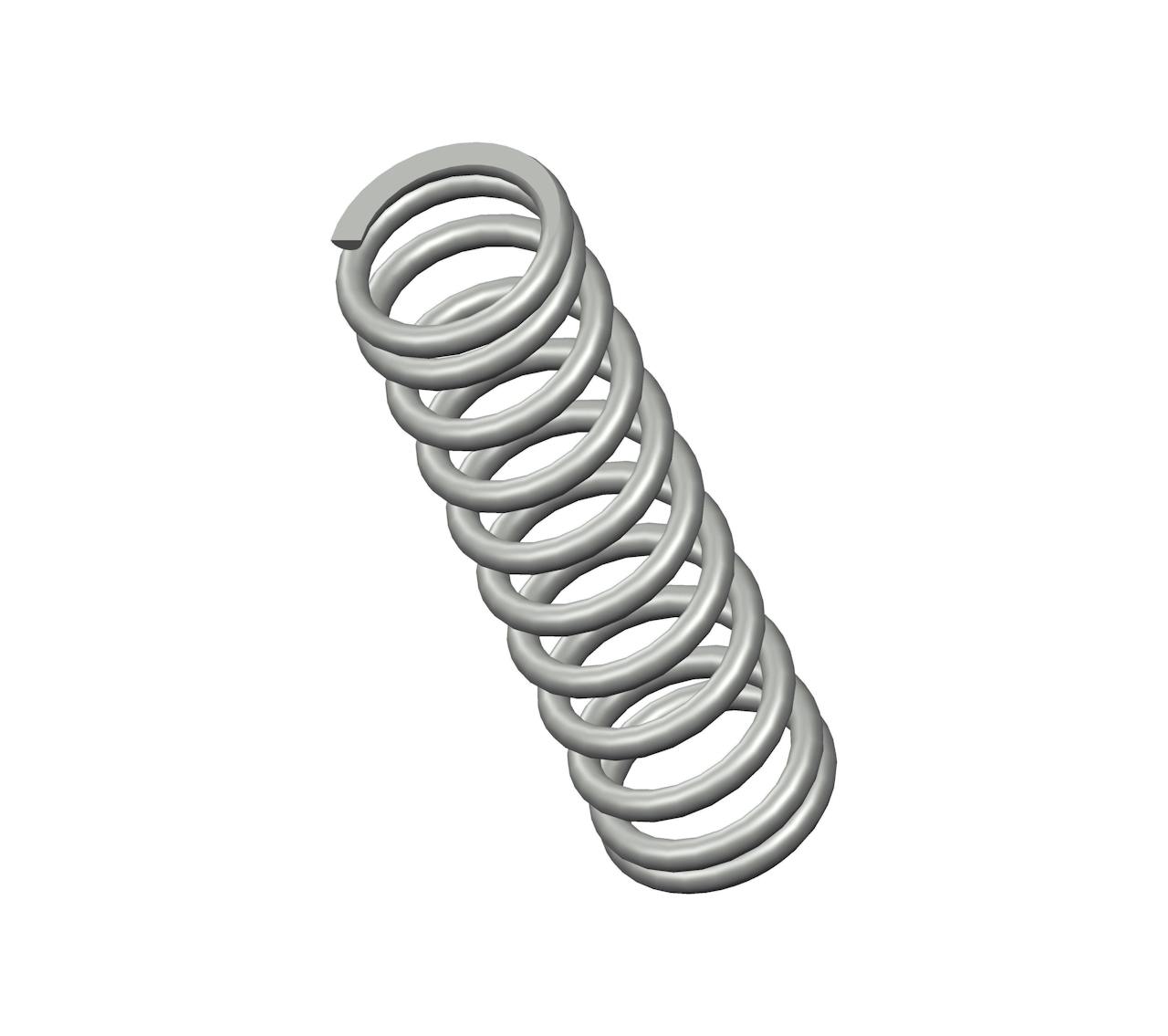

12231CS - 2.03" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 11 coils and closed & ground ends. This spring features an O.D. of 0.578", and an I.D. of 0.428".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12231
Ends Closed & Ground
Finish Zinc
Free Length 2.03 in
Inside Diameter 0.428 in
Material Spring Steel
Outside Diameter 0.578 in
Part Type Standard
Rate 40 lbs/in
SKU 12231CS
Solid Length 0.83 in
Suggested Max Deflection 0.62 in
Suggested Max Load 24 lbf
Total Coils 11
Wire Diameter 0.075 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12231
Ends Closed & Ground
Finish Zinc
Free Length 51.56 mm
Inside Diameter 10.87 mm
Material Spring Steel
Outside Diameter 14.68 mm
Part Type Standard
Rate 7 N/mm
SKU 12231CS
Solid Length 21.08 mm
Suggested Max Deflection 15.75 mm
Suggested Max Load 106.75 N
Total Coils 11
Wire Diameter 1.91 mm
The 12231CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.075" diameter spring steel, the 12231 spring design exhibits reliable strength across its 11 active coils, withstanding repeated compression cycles with a maximum load of 24 lbf without succumbing to fatigue.

We manufacture the 12231 design to provide a compression spring that is 2.03" long at rest and provides a consistent rate of 40 lbs/in along its recommended maximum of 0.62" deflection. For best results, your application should fully accommodate the inner (0.428") and outer (0.578") diameters of this spring and be designed for its closed & ground end configuration.
