Century Spring

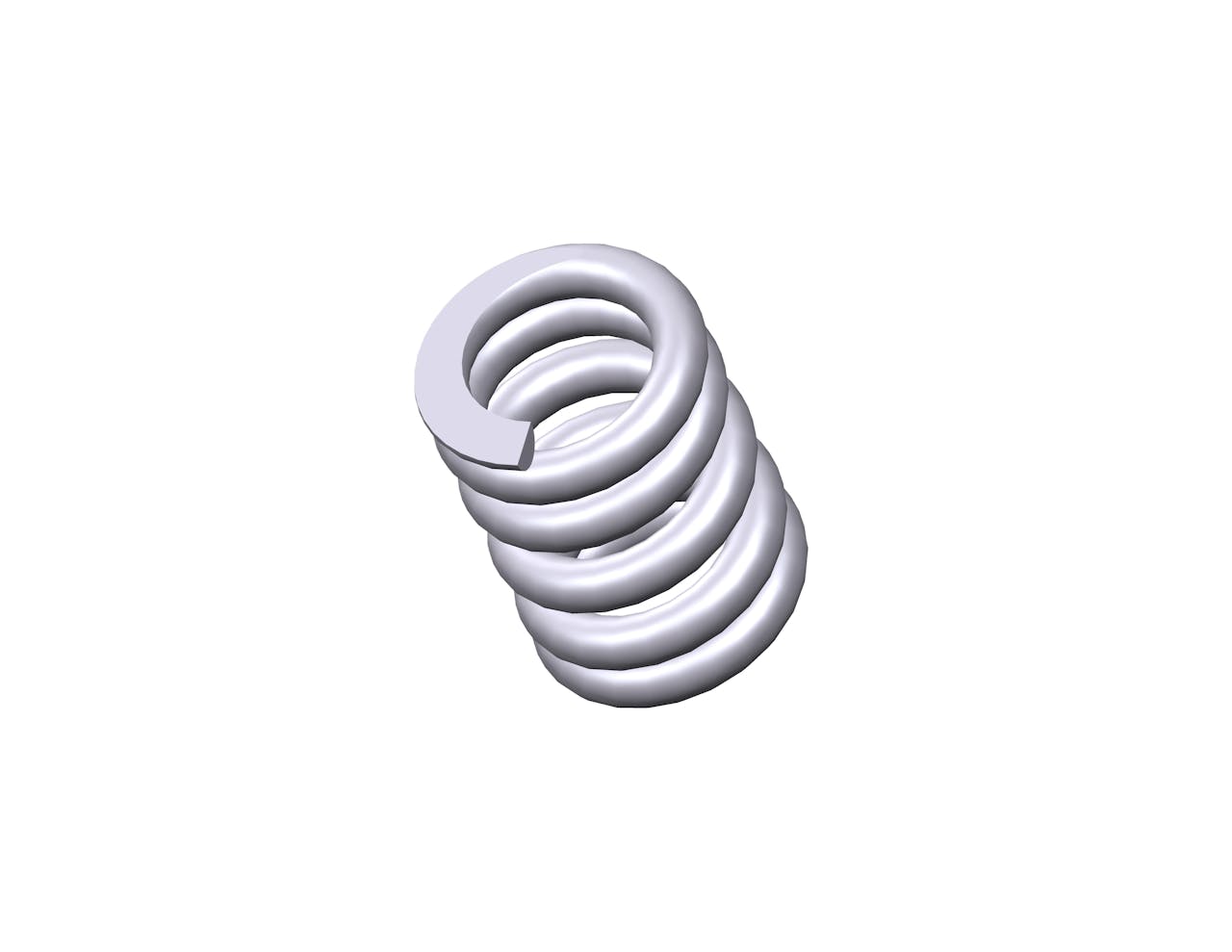

12213CS - 1.31" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.953", and an I.D. of 0.599".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12213
Ends Closed & Ground
Finish Gold Iridite
Free Length 1.31 in
Inside Diameter 0.599 in
Material Spring Steel
Outside Diameter 0.953 in
Part Type Standard
Rate 863 lbs/in
SKU 12213CS
Solid Length 0.97 in
Suggested Max Deflection 0.19 in
Suggested Max Load 165 lbf
Total Coils 5.5
Wire Diameter 0.177 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12213
Ends Closed & Ground
Finish Gold Iridite
Free Length 33.27 mm
Inside Diameter 15.21 mm
Material Spring Steel
Outside Diameter 24.21 mm
Part Type Standard
Rate 151.11 N/mm
SKU 12213CS
Solid Length 24.64 mm
Suggested Max Deflection 4.83 mm
Suggested Max Load 733.92 N
Total Coils 5.5
Wire Diameter 4.5 mm
The 12213CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.177" diameter spring steel, the 12213 spring design exhibits reliable strength across its 5.5 active coils, withstanding repeated compression cycles with a maximum load of 165 lbf without succumbing to fatigue.

We manufacture the 12213 design to provide a compression spring that is 1.31" long at rest and provides a consistent rate of 863 lbs/in along its recommended maximum of 0.19" deflection. For best results, your application should fully accommodate the inner (0.599") and outer (0.953") diameters of this spring and be designed for its closed & ground end configuration.
