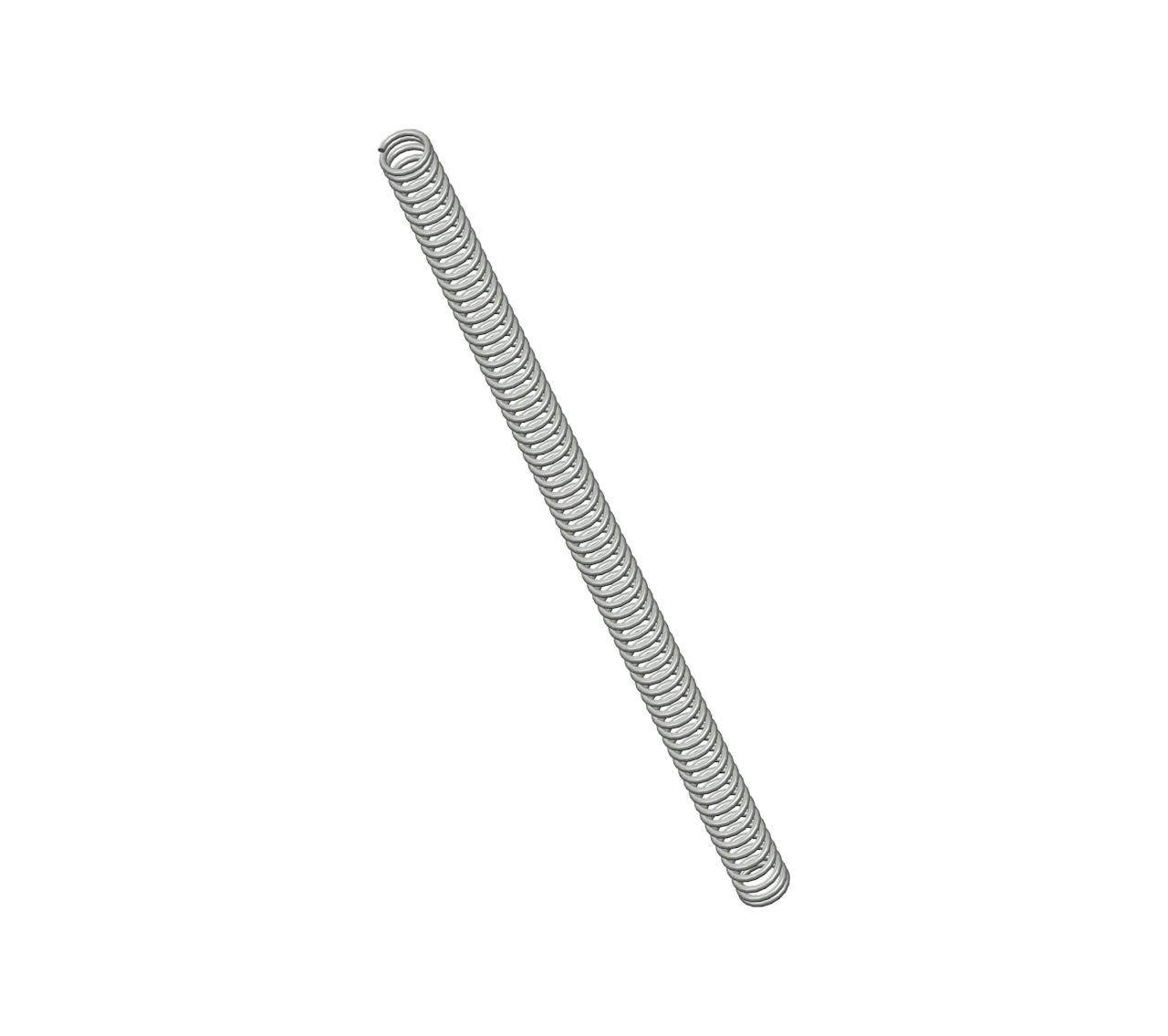

12202CS - 7.63" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 69 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.264".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 12202 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 7.63 in |
| Inside Diameter | 0.264 in |
| Material | Spring Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 3.8 lbs/in |
| SKU | 12202CS |
| Solid Length | 3.36 in |
| Suggested Max Deflection | 3.1 in |
| Suggested Max Load | 12 lbf |
| Total Coils | 69 |
| Wire Diameter | 0.048 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 12202 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 193.8 mm |
| Inside Diameter | 6.71 mm |
| Material | Spring Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 0.67 N/mm |
| SKU | 12202CS |
| Solid Length | 85.34 mm |
| Suggested Max Deflection | 78.74 mm |
| Suggested Max Load | 53.38 N |
| Total Coils | 69 |
| Wire Diameter | 1.22 mm |
The 12202 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 12202CS compression spring is designed with a free length of 3" total of 24 coils, and a rate of 1.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 12202 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 12202CS compression spring is designed with a free length of 3" total of 24 coils, and a rate of 1.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 12202 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
