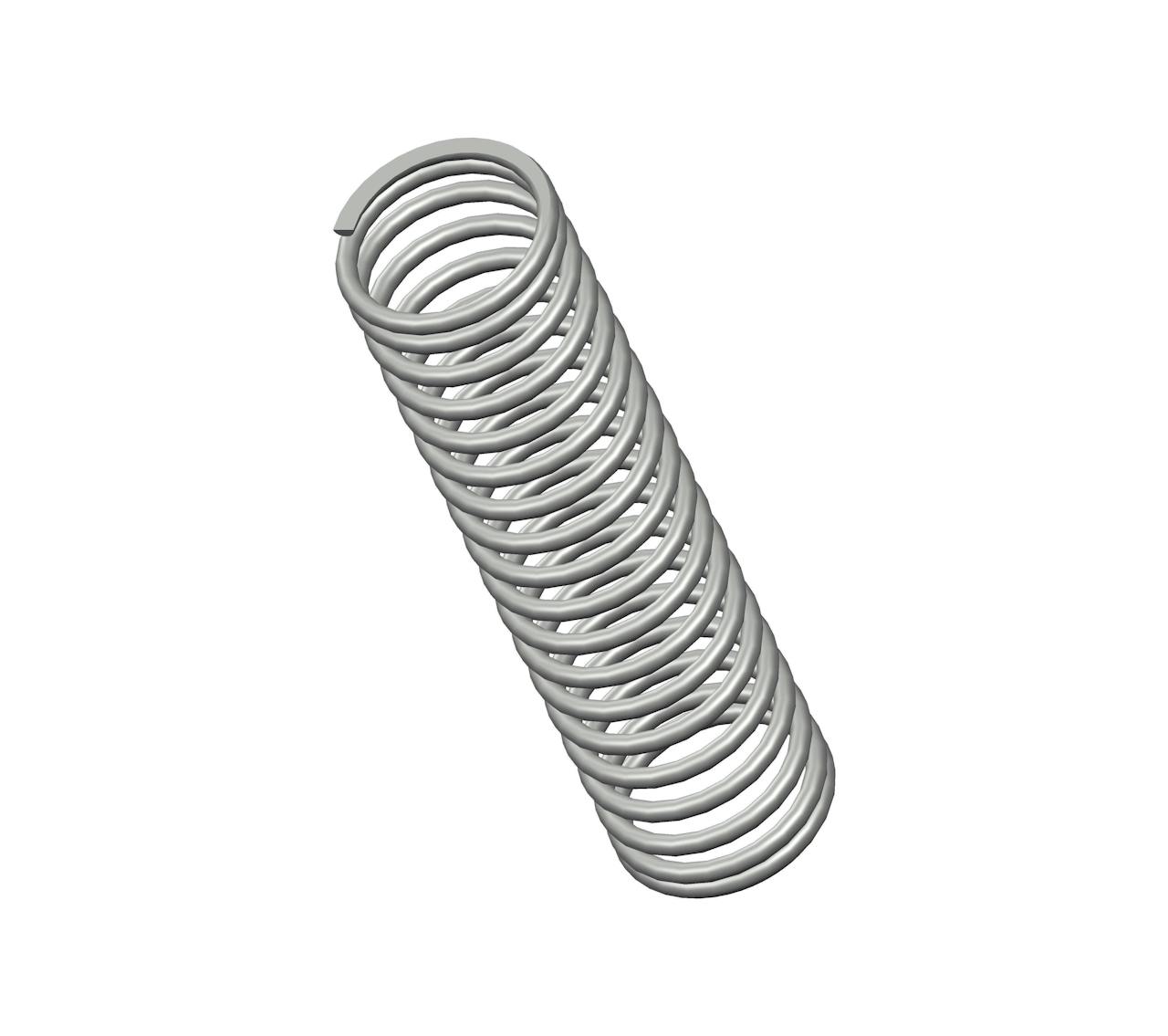

12126CS - 6.81" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 19 coils and closed & ground ends. This spring features an O.D. of 1.75", and an I.D. of 1.426".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12126
Ends Closed & Ground
Finish Zinc
Free Length 6.81 in
Inside Diameter 1.426 in
Material Spring Steel
Outside Diameter 1.75 in
Part Type Standard
Rate 15 lbs/in
SKU 12126CS
Solid Length 3.08 in
Suggested Max Deflection 3.7 in
Suggested Max Load 54 lbf
Total Coils 19
Wire Diameter 0.162 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12126
Ends Closed & Ground
Finish Zinc
Free Length 172.97 mm
Inside Diameter 36.22 mm
Material Spring Steel
Outside Diameter 44.45 mm
Part Type Standard
Rate 2.63 N/mm
SKU 12126CS
Solid Length 78.23 mm
Suggested Max Deflection 93.98 mm
Suggested Max Load 240.19 N
Total Coils 19
Wire Diameter 4.11 mm
The 12126CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.162" diameter spring steel, the 12126 spring design exhibits reliable strength across its 19 active coils, withstanding repeated compression cycles with a maximum load of 54 lbf without succumbing to fatigue.

We manufacture the 12126 design to provide a compression spring that is 6.81" long at rest and provides a consistent rate of 15 lbs/in along its recommended maximum of 3.7" deflection. For best results, your application should fully accommodate the inner (1.426") and outer (1.75") diameters of this spring and be designed for its closed & ground end configuration.
