Century Spring

12116CS - 11.1" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

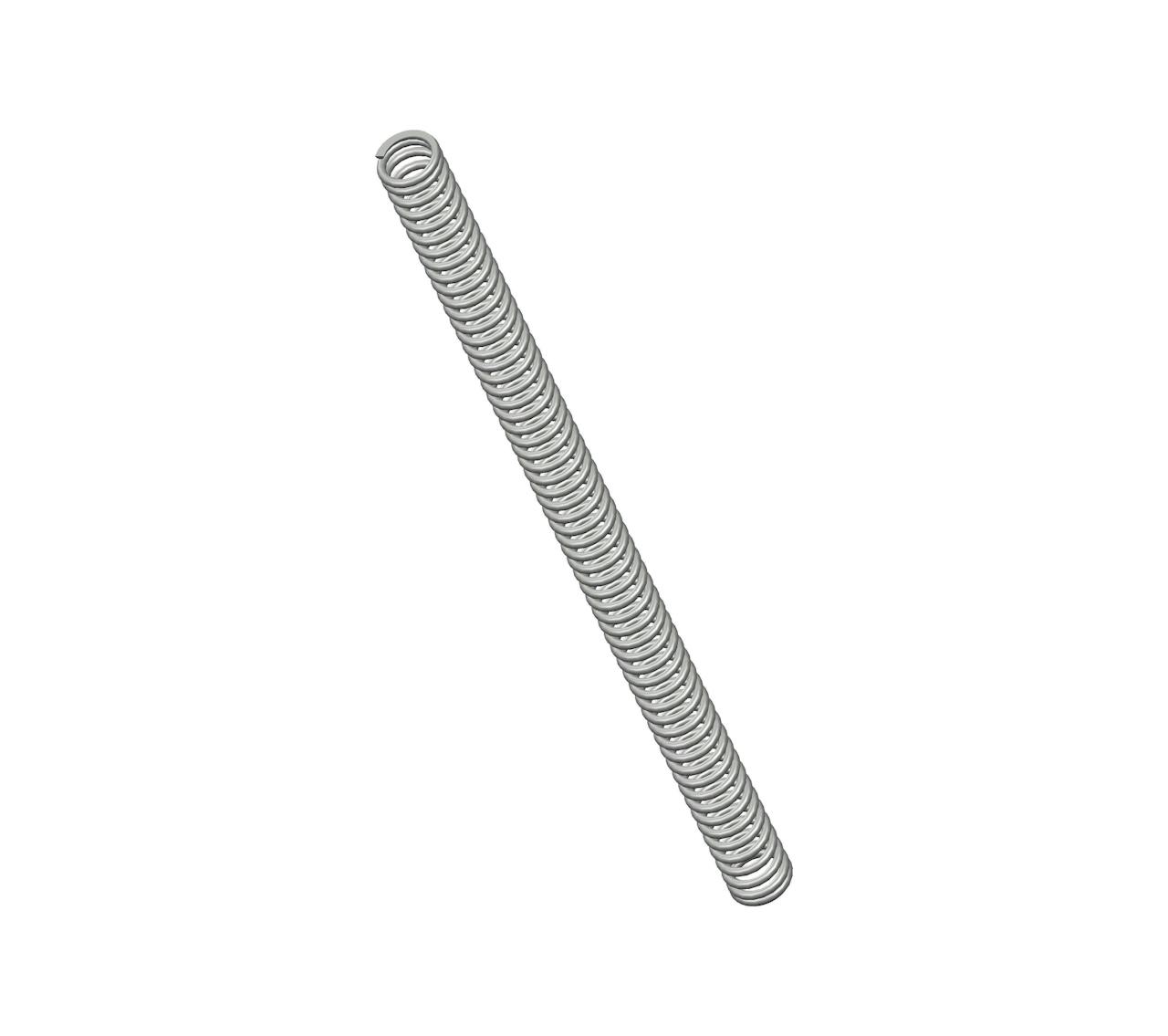

Compression spring manufactured from spring steel with 59 coils and closed & ground ends. This spring features an O.D. of 0.656", and an I.D. of 0.474".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12116
Ends Closed & Ground
Finish Zinc
Free Length 11.1 in
Inside Diameter 0.474 in
Material Spring Steel
Outside Diameter 0.656 in
Part Type Standard
Rate 9.6 lbs/in
SKU 12116CS
Solid Length 5.37 in
Suggested Max Deflection 3.8 in
Suggested Max Load 37 lbf
Total Coils 59
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12116
Ends Closed & Ground
Finish Zinc
Free Length 281.94 mm
Inside Diameter 12.04 mm
Material Spring Steel
Outside Diameter 16.66 mm
Part Type Standard
Rate 1.68 N/mm
SKU 12116CS
Solid Length 136.4 mm
Suggested Max Deflection 96.52 mm
Suggested Max Load 164.58 N
Total Coils 59
Wire Diameter 2.31 mm
The 12116CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.091" diameter spring steel, the 12116 spring design exhibits reliable strength across its 59 active coils, withstanding repeated compression cycles with a maximum load of 37 lbf without succumbing to fatigue.

We manufacture the 12116 design to provide a compression spring that is 11.1" long at rest and provides a consistent rate of 9.6 lbs/in along its recommended maximum of 3.8" deflection. For best results, your application should fully accommodate the inner (0.474") and outer (0.656") diameters of this spring and be designed for its closed & ground end configuration.
