Century Spring

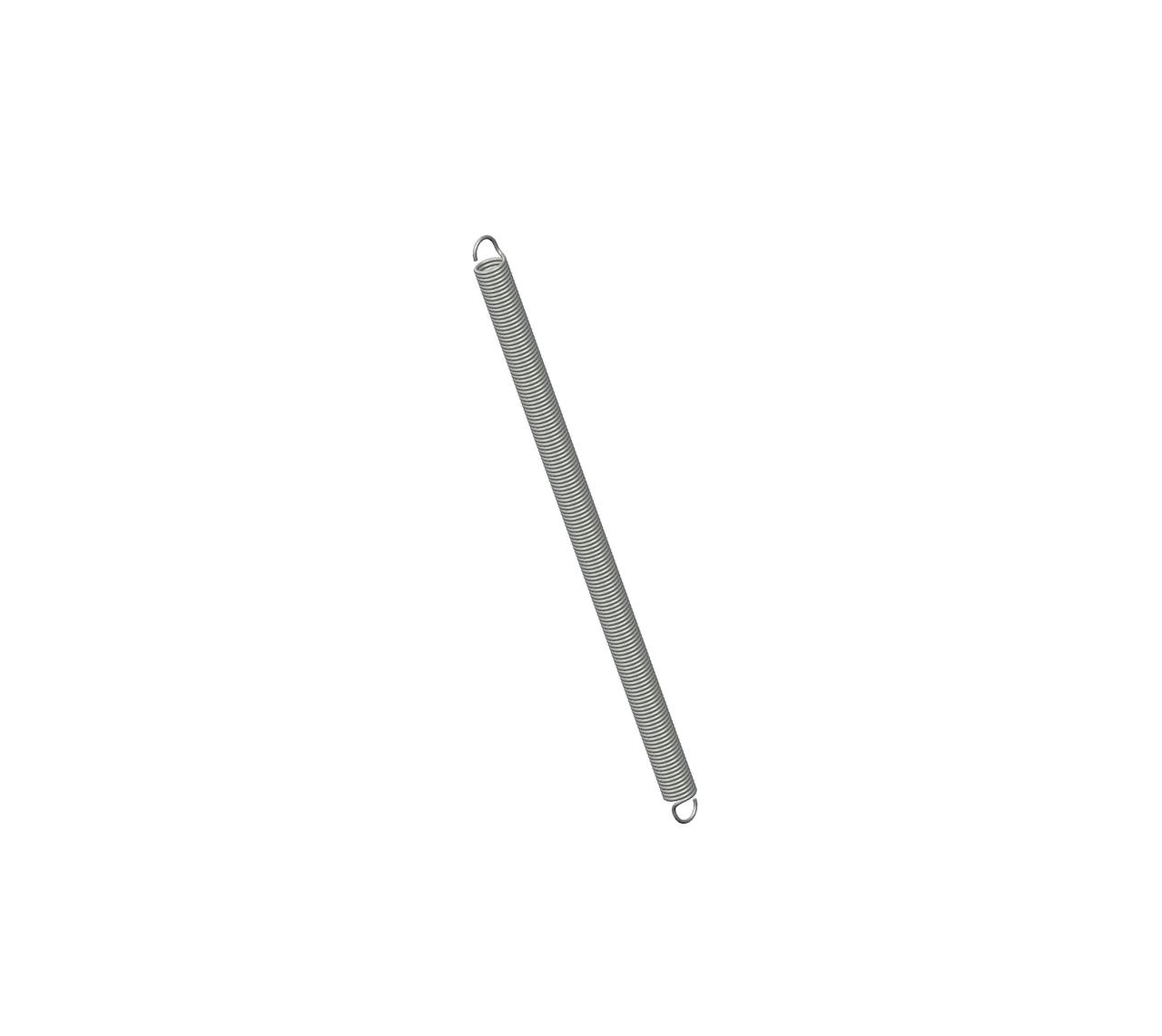

120CS - 8.5 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.437 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 120
Ends Machine Hook
Finish Zinc
Initial Tension 2 lb
Length 8.5 in
Material High Carbon Steel
Outside Diameter 0.437 in
Part Type Standard
Rate 1.5 lbs/in
SKU 120CS
Sugg Max Deflection 6.7 in
Sugg Max Load 12 lbf
Wind Direction Left
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 120
Ends Machine Hook
Finish Zinc
Initial Tension 0.91 kg
Length 215.9 mm
Material High Carbon Steel
Outside Diameter 11.1 mm
Part Type Standard
Rate 0.26 N/mm
SKU 120CS
Sugg Max Deflection 170.18 mm
Sugg Max Load 53.38 N
Wind Direction Left
Wire Diameter 1.37 mm
