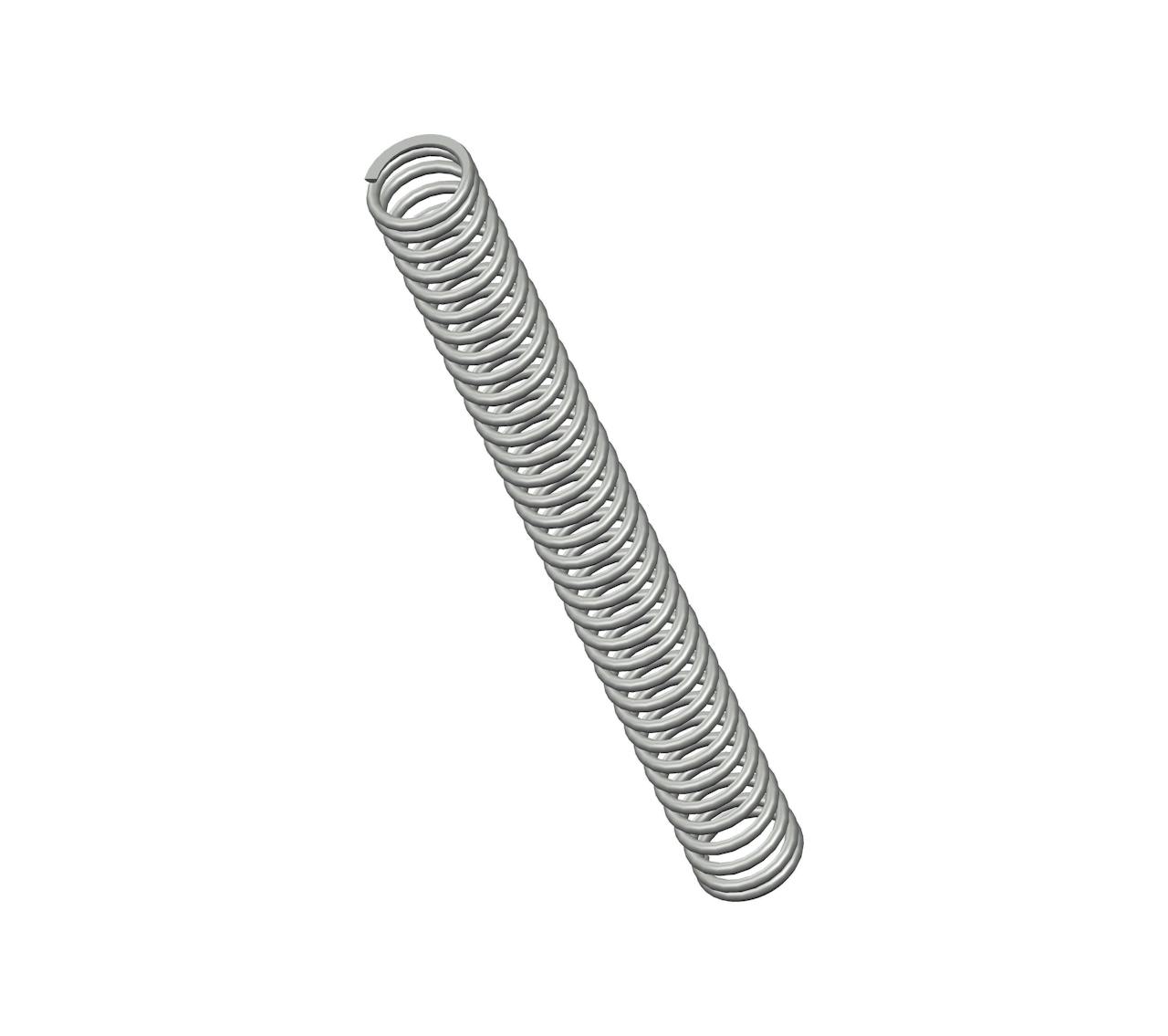

11982CS - 8.22" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 35 coils and closed & ground ends. This spring features an O.D. of 0.875", and an I.D. of 0.671".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11982
Ends Closed & Ground
Finish Zinc
Free Length 8.22 in
Inside Diameter 0.671 in
Material Spring Steel
Outside Diameter 0.875 in
Part Type Standard
Rate 10 lbs/in
SKU 11982CS
Solid Length 3.57 in
Suggested Max Deflection 3.9 in
Suggested Max Load 39 lbf
Total Coils 35
Wire Diameter 0.102 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11982
Ends Closed & Ground
Finish Zinc
Free Length 208.79 mm
Inside Diameter 17.04 mm
Material Spring Steel
Outside Diameter 22.23 mm
Part Type Standard
Rate 1.75 N/mm
SKU 11982CS
Solid Length 90.68 mm
Suggested Max Deflection 99.06 mm
Suggested Max Load 173.47 N
Total Coils 35
Wire Diameter 2.59 mm
The 11982CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.102" diameter spring steel, the 11982 spring design exhibits reliable strength across its 35 active coils, withstanding repeated compression cycles with a maximum load of 39 lbf without succumbing to fatigue.

We manufacture the 11982 design to provide a compression spring that is 8.22" long at rest and provides a consistent rate of 10 lbs/in along its recommended maximum of 3.9" deflection. For best results, your application should fully accommodate the inner (0.671") and outer (0.875") diameters of this spring and be designed for its closed & ground end configuration.
