Century Spring

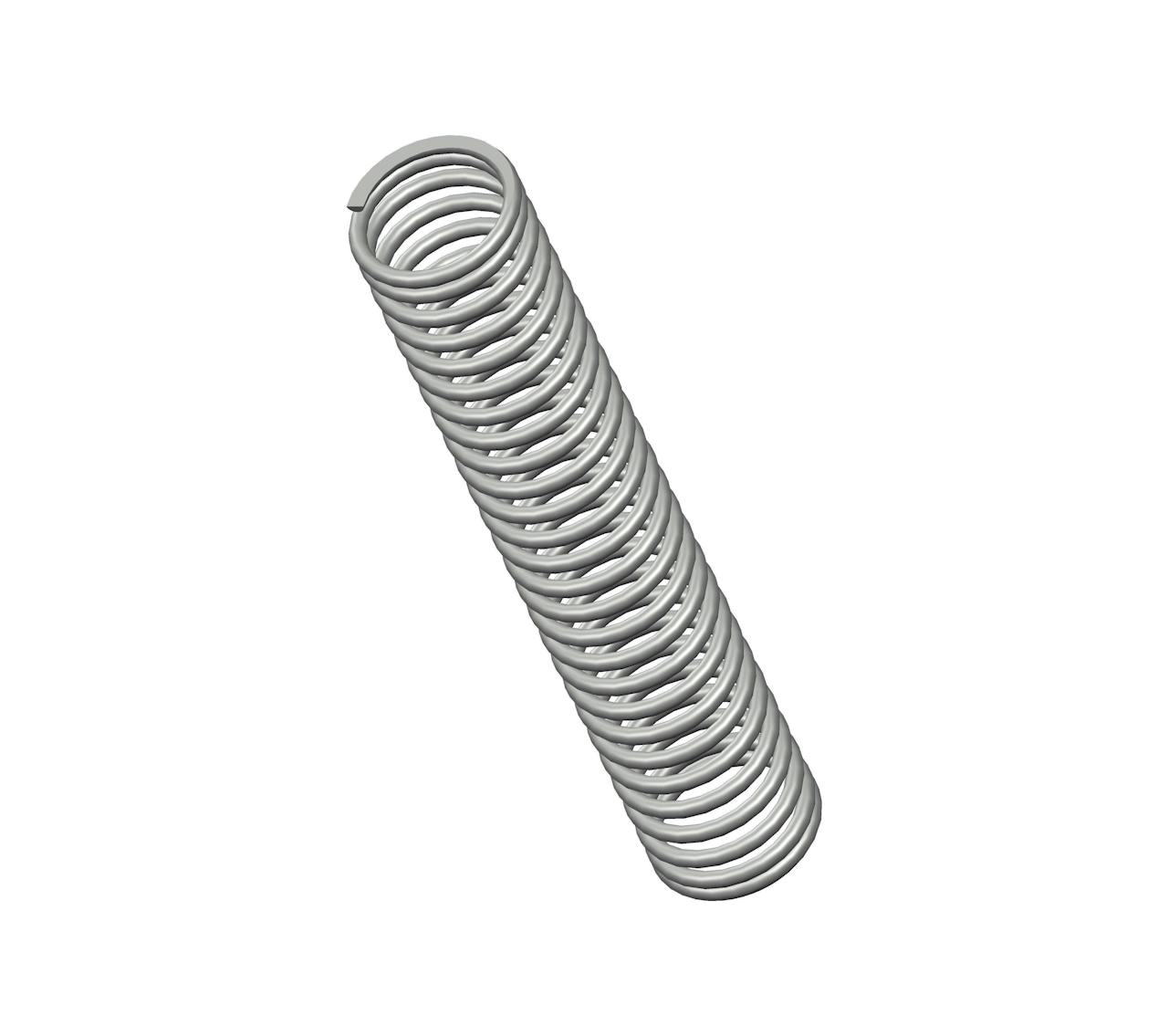

11925CS - 9.25" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 27 coils and closed & ground ends. This spring features an O.D. of 1.703", and an I.D. of 1.363".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11925
Ends Closed & Ground
Finish Gold Iridite
Free Length 9.25 in
Inside Diameter 1.363 in
Material Spring Steel
Outside Diameter 1.703 in
Part Type Standard
Rate 13 lbs/in
SKU 11925CS
Solid Length 4.59 in
Suggested Max Deflection 4.7 in
Suggested Max Load 62 lbf
Total Coils 27
Wire Diameter 0.17 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11925
Ends Closed & Ground
Finish Gold Iridite
Free Length 234.95 mm
Inside Diameter 34.62 mm
Material Spring Steel
Outside Diameter 43.26 mm
Part Type Standard
Rate 2.28 N/mm
SKU 11925CS
Solid Length 116.59 mm
Suggested Max Deflection 119.38 mm
Suggested Max Load 275.78 N
Total Coils 27
Wire Diameter 4.32 mm
The 11925CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.17" diameter spring steel, the 11925 spring design exhibits reliable strength across its 27 active coils, withstanding repeated compression cycles with a maximum load of 62 lbf without succumbing to fatigue.

We manufacture the 11925 design to provide a compression spring that is 9.25" long at rest and provides a consistent rate of 13 lbs/in along its recommended maximum of 4.7" deflection. For best results, your application should fully accommodate the inner (1.363") and outer (1.703") diameters of this spring and be designed for its closed & ground end configuration.
