Century Spring

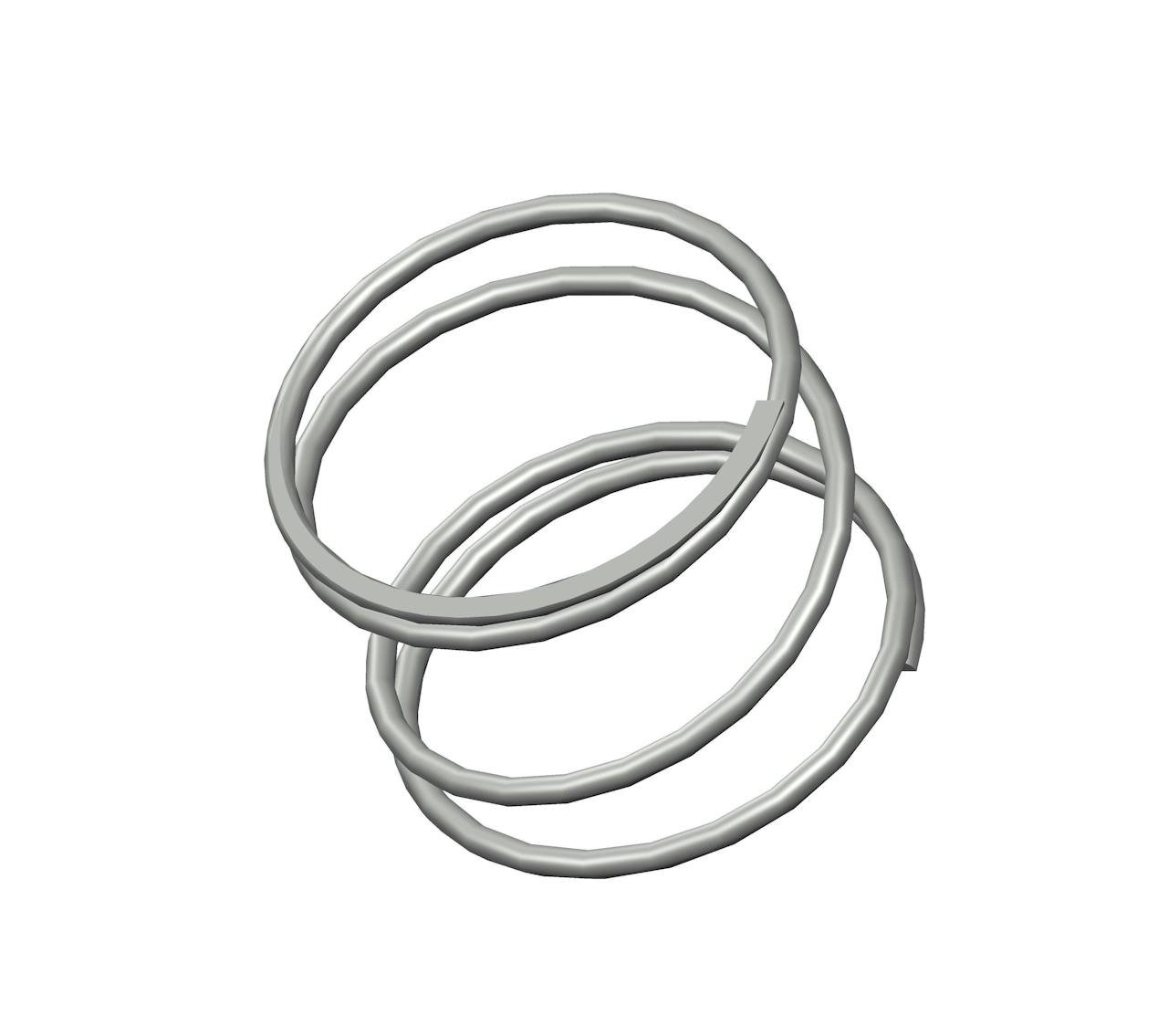

11894CS - 0.78" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 4 coils and closed ends. This spring features an O.D. of 1", and an I.D. of 0.894".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11894
Ends Closed
Finish None
Free Length 0.78 in
Inside Diameter 0.894 in
Material Spring Steel
Outside Diameter 1 in
Part Type Standard
Rate 6.7 lbs/in
SKU 11894CS
Solid Length 0.27 in
Suggested Max Deflection 0.52 in
Suggested Max Load 3.4 lbf
Total Coils 4
Wire Diameter 0.053 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11894
Ends Closed
Finish None
Free Length 19.81 mm
Inside Diameter 22.71 mm
Material Spring Steel
Outside Diameter 25.4 mm
Part Type Standard
Rate 1.17 N/mm
SKU 11894CS
Solid Length 6.86 mm
Suggested Max Deflection 13.21 mm
Suggested Max Load 15.12 N
Total Coils 4
Wire Diameter 1.35 mm
The compression spring 11894CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 11894 compression spring design exhibits exceptional tensile strength and resilience.

The 11894 design is manufactured with a free length of 0.78", with an outer diameter of 1", an inner diameter of 0.894", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.7 lbs/in.

The 11894CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 11894 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
