11836CS - 0.59" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

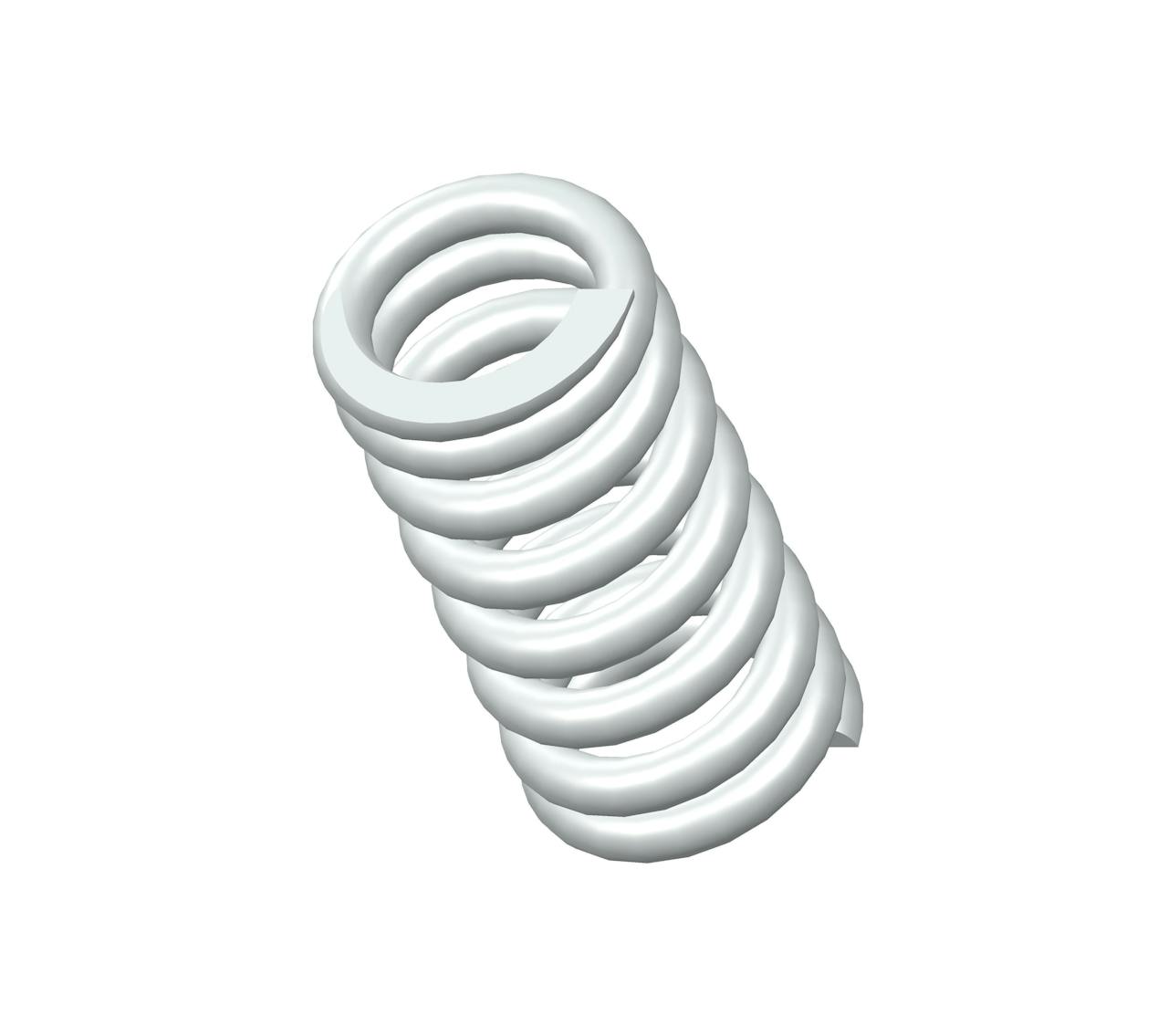

Compression spring manufactured from 302/304 stainless steel with 7.6 coils and closed & ground ends. This spring features an O.D. of 0.281", and an I.D. of 0.185".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11836
Ends Closed & Ground
Finish None
Free Length 0.59 in
Inside Diameter 0.185 in
Material 302/304 Stainless Steel
Outside Diameter 0.281 in
Part Type Standard
Rate 89 lbs/in
SKU 11836CS
Solid Length 0.362 in
Suggested Max Deflection 0.144 in
Suggested Max Load 12.8 lbf
Total Coils 7.6
Wire Diameter 0.0475 in
The compression spring 11836CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 11836 compression spring design exhibits exceptional tensile strength and resilience.

The 11836 design is manufactured with a free length of 0.59", with an outer diameter of 0.281", an inner diameter of 0.185", and a total of 7.6 coils, expertly designed to deliver consistent compression characteristics including a rate of 89 lbs/in.

The 11836CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 11836 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
