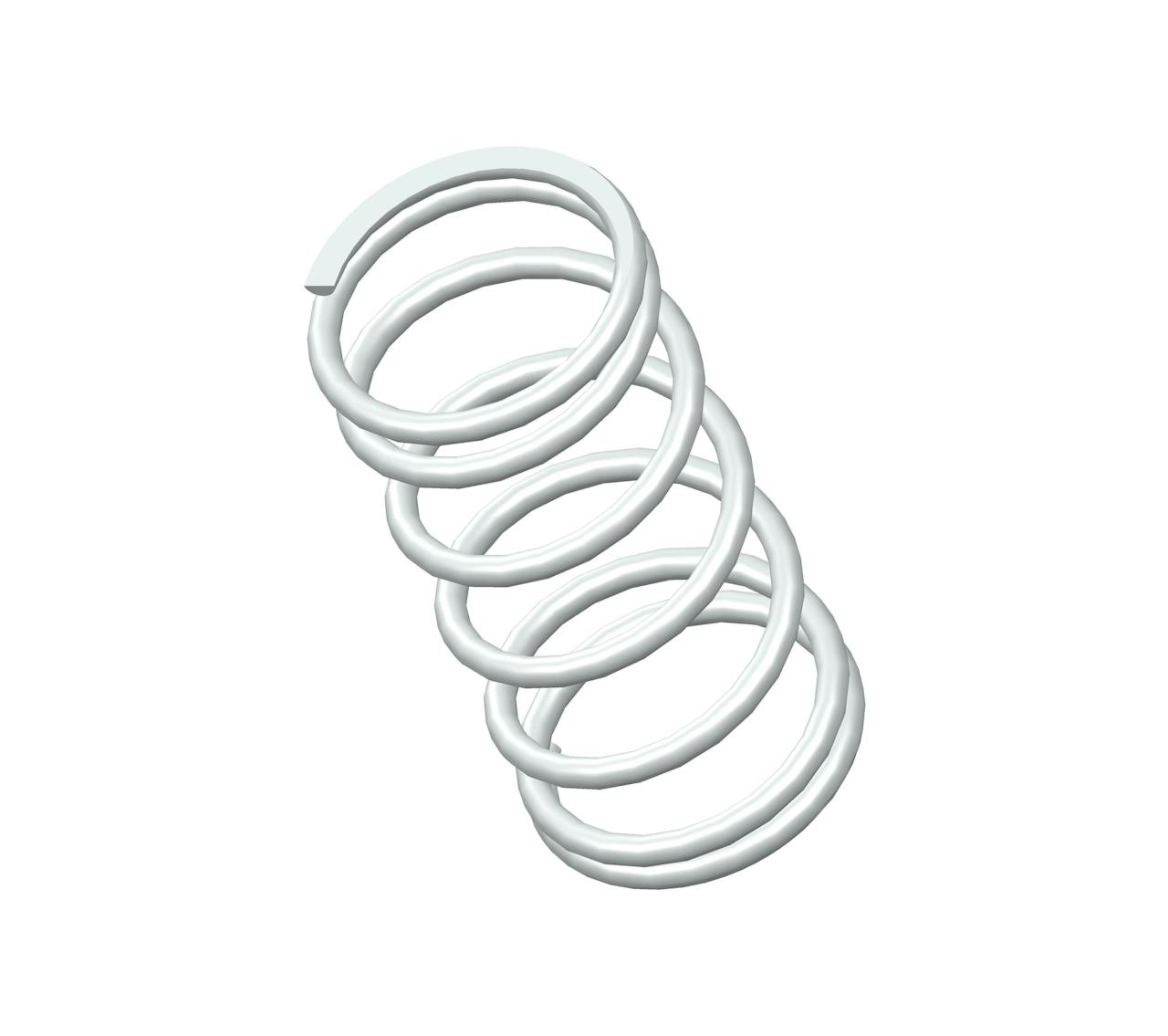

11819CS - 2" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.968", and an I.D. of 0.794".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11819
Ends Closed & Ground
Finish None
Free Length 2 in
Inside Diameter 0.794 in
Material 302/304 Stainless Steel
Outside Diameter 0.968 in
Part Type Standard
Rate 21 lbs/in
SKU 11819CS
Solid Length 0.61 in
Suggested Max Deflection 1 in
Suggested Max Load 22 lbf
Total Coils 7
Wire Diameter 0.087 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11819
Ends Closed & Ground
Finish None
Free Length 50.8 mm
Inside Diameter 20.17 mm
Material 302/304 Stainless Steel
Outside Diameter 24.59 mm
Part Type Standard
Rate 3.68 N/mm
SKU 11819CS
Solid Length 15.49 mm
Suggested Max Deflection 25.4 mm
Suggested Max Load 97.86 N
Total Coils 7
Wire Diameter 2.21 mm
The 11819CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.087" diameter 302/304 stainless steel, the 11819 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 22 lbf without succumbing to fatigue.

We manufacture the 11819 design to provide a compression spring that is 2" long at rest and provides a consistent rate of 21 lbs/in along its recommended maximum of 1" deflection. For best results, your application should fully accommodate the inner (0.794") and outer (0.968") diameters of this spring and be designed for its closed & ground end configuration.
