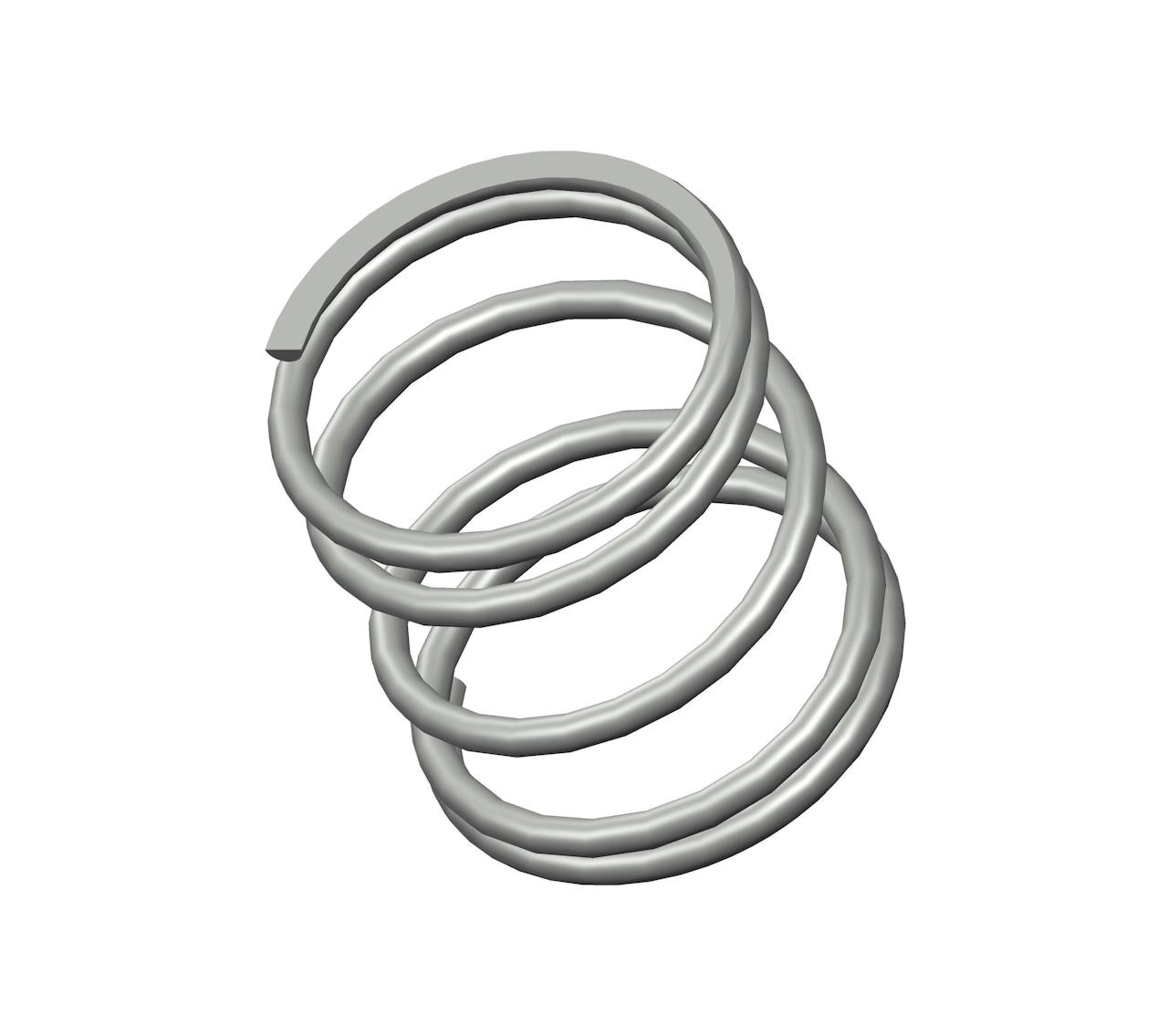

11810CS - 0.84" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.796", and an I.D. of 0.674".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11810
Ends Closed & Ground
Finish Zinc
Free Length 0.84 in
Inside Diameter 0.674 in
Material Spring Steel
Outside Diameter 0.796 in
Part Type Standard
Rate 17 lbs/in
SKU 11810CS
Solid Length 0.31 in
Suggested Max Deflection 0.54 in
Suggested Max Load 9 lbf
Total Coils 5
Wire Diameter 0.061 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11810
Ends Closed & Ground
Finish Zinc
Free Length 21.34 mm
Inside Diameter 17.12 mm
Material Spring Steel
Outside Diameter 20.22 mm
Part Type Standard
Rate 2.98 N/mm
SKU 11810CS
Solid Length 7.87 mm
Suggested Max Deflection 13.72 mm
Suggested Max Load 40.03 N
Total Coils 5
Wire Diameter 1.55 mm
The compression spring 11810CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 11810 compression spring design exhibits exceptional tensile strength and resilience.

The 11810 design is manufactured with a free length of 0.84", with an outer diameter of 0.796", an inner diameter of 0.674", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.

The 11810CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 11810 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
