Century Spring

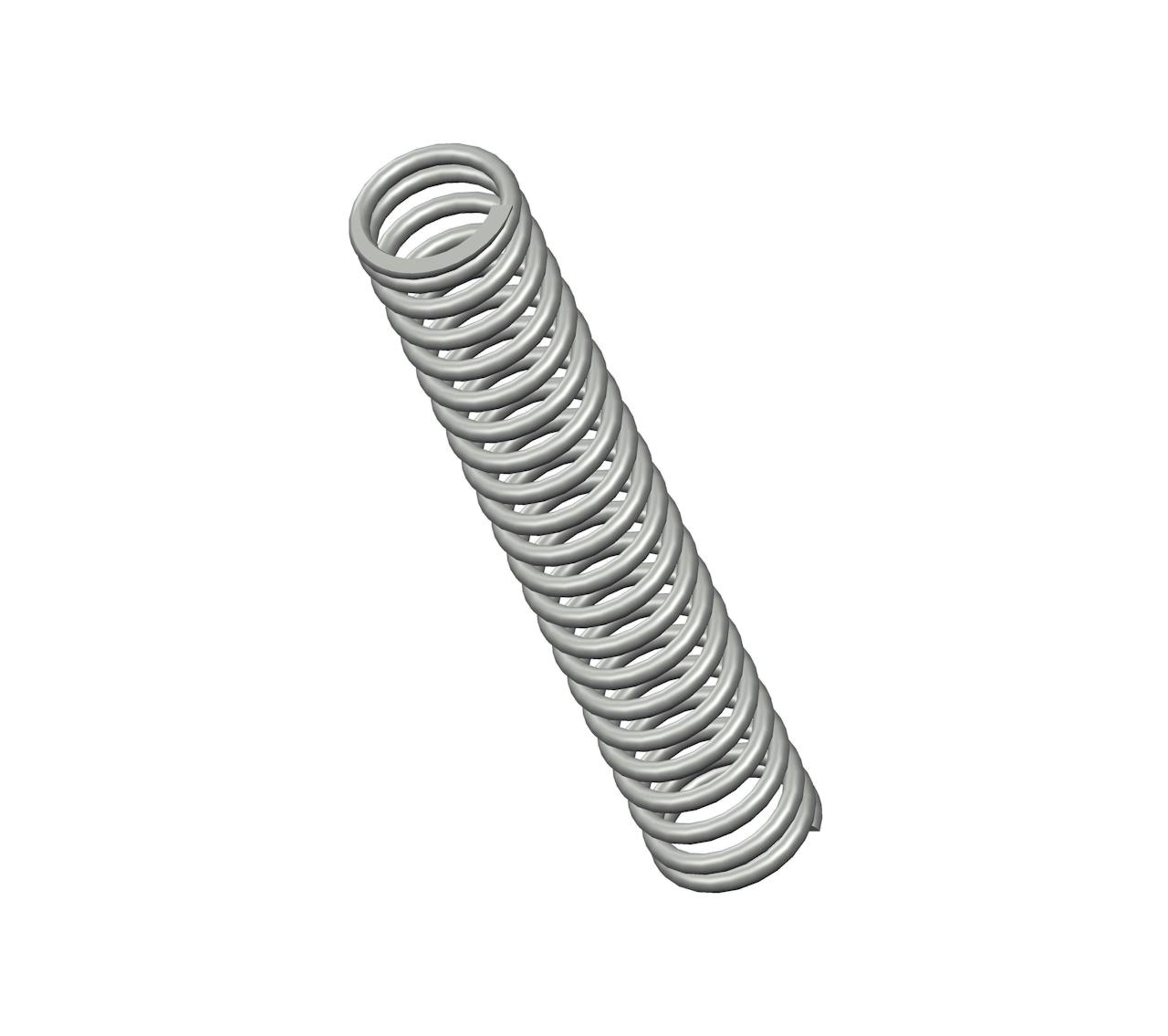

11737CS - 4.25" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 22 coils and closed & ground ends. This spring features an O.D. of 0.75", and an I.D. of 0.568".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11737
Ends Closed & Ground
Finish Zinc
Free Length 4.25 in
Inside Diameter 0.568 in
Material Spring Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 17 lbs/in
SKU 11737CS
Solid Length 2 in
Suggested Max Deflection 1.9 in
Suggested Max Load 32 lbf
Total Coils 22
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11737
Ends Closed & Ground
Finish Zinc
Free Length 107.95 mm
Inside Diameter 14.43 mm
Material Spring Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 2.98 N/mm
SKU 11737CS
Solid Length 50.8 mm
Suggested Max Deflection 48.26 mm
Suggested Max Load 142.34 N
Total Coils 22
Wire Diameter 2.31 mm
The 11737CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.091" diameter spring steel, the 11737 spring design exhibits reliable strength across its 22 active coils, withstanding repeated compression cycles with a maximum load of 32 lbf without succumbing to fatigue.

We manufacture the 11737 design to provide a compression spring that is 4.25" long at rest and provides a consistent rate of 17 lbs/in along its recommended maximum of 1.9" deflection. For best results, your application should fully accommodate the inner (0.568") and outer (0.75") diameters of this spring and be designed for its closed & ground end configuration.
