11730CS - 5.25" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

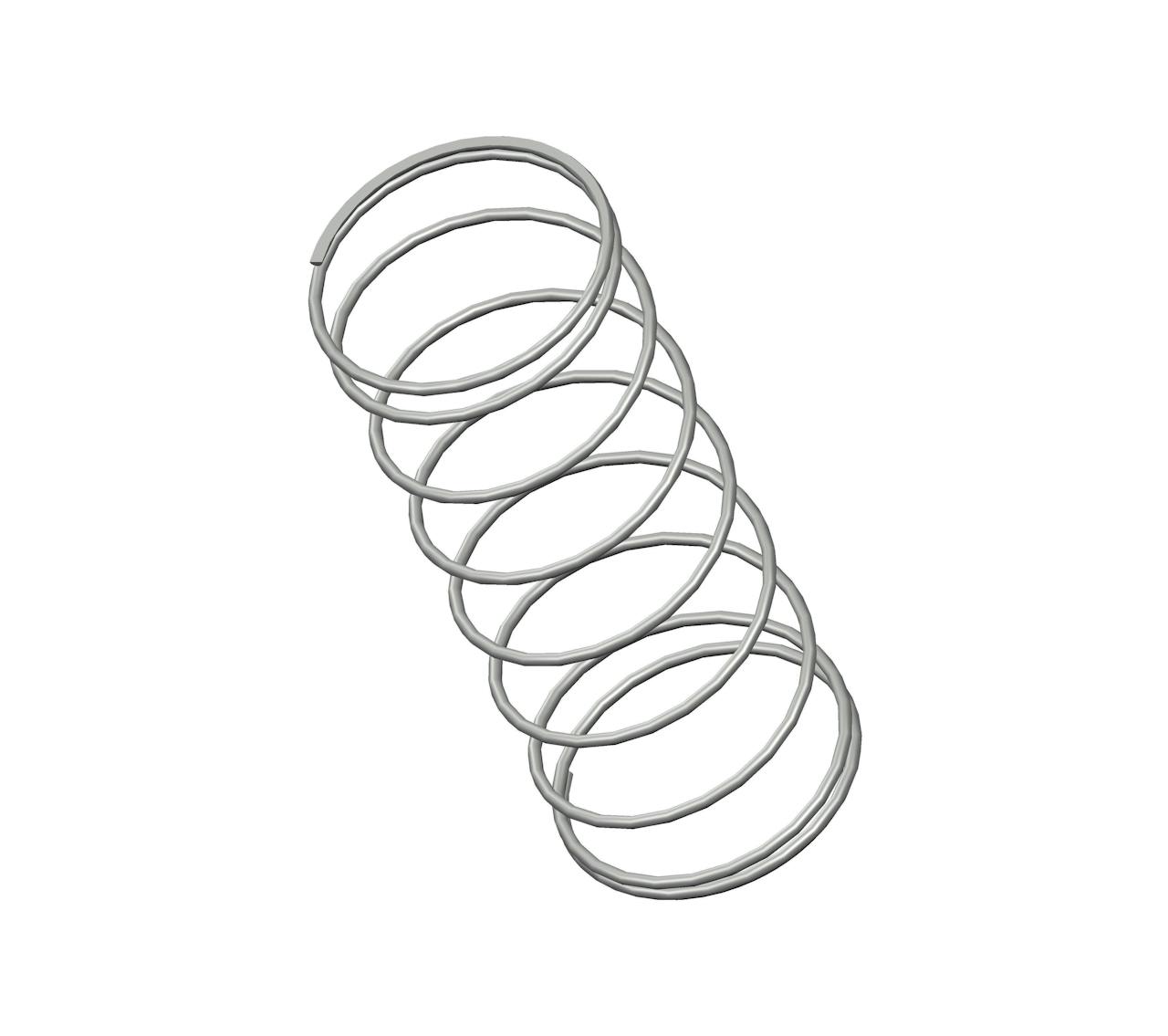

Compression spring manufactured from spring steel with 9 coils and closed & ground ends. This spring features an O.D. of 2.062", and an I.D. of 1.89".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11730
Ends Closed & Ground
Finish Gold Iridite
Free Length 5.25 in
Inside Diameter 1.89 in
Material Spring Steel
Outside Diameter 2.062 in
Part Type Standard
Rate 1.5 lbs/in
SKU 11730CS
Solid Length 0.77 in
Suggested Max Deflection 4.5 in
Suggested Max Load 6.5 lbf
Total Coils 9
Wire Diameter 0.086 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11730
Ends Closed & Ground
Finish Gold Iridite
Free Length 133.35 mm
Inside Diameter 48.01 mm
Material Spring Steel
Outside Diameter 52.37 mm
Part Type Standard
Rate 0.26 N/mm
SKU 11730CS
Solid Length 19.56 mm
Suggested Max Deflection 114.3 mm
Suggested Max Load 28.91 N
Total Coils 9
Wire Diameter 2.18 mm
The 11730CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.086" diameter spring steel, the 11730 spring design exhibits reliable strength across its 9 active coils, withstanding repeated compression cycles with a maximum load of 6.5 lbf without succumbing to fatigue.

We manufacture the 11730 design to provide a compression spring that is 5.25" long at rest and provides a consistent rate of 1.5 lbs/in along its recommended maximum of 4.5" deflection. For best results, your application should fully accommodate the inner (1.89") and outer (2.062") diameters of this spring and be designed for its closed & ground end configuration.
