Century Spring

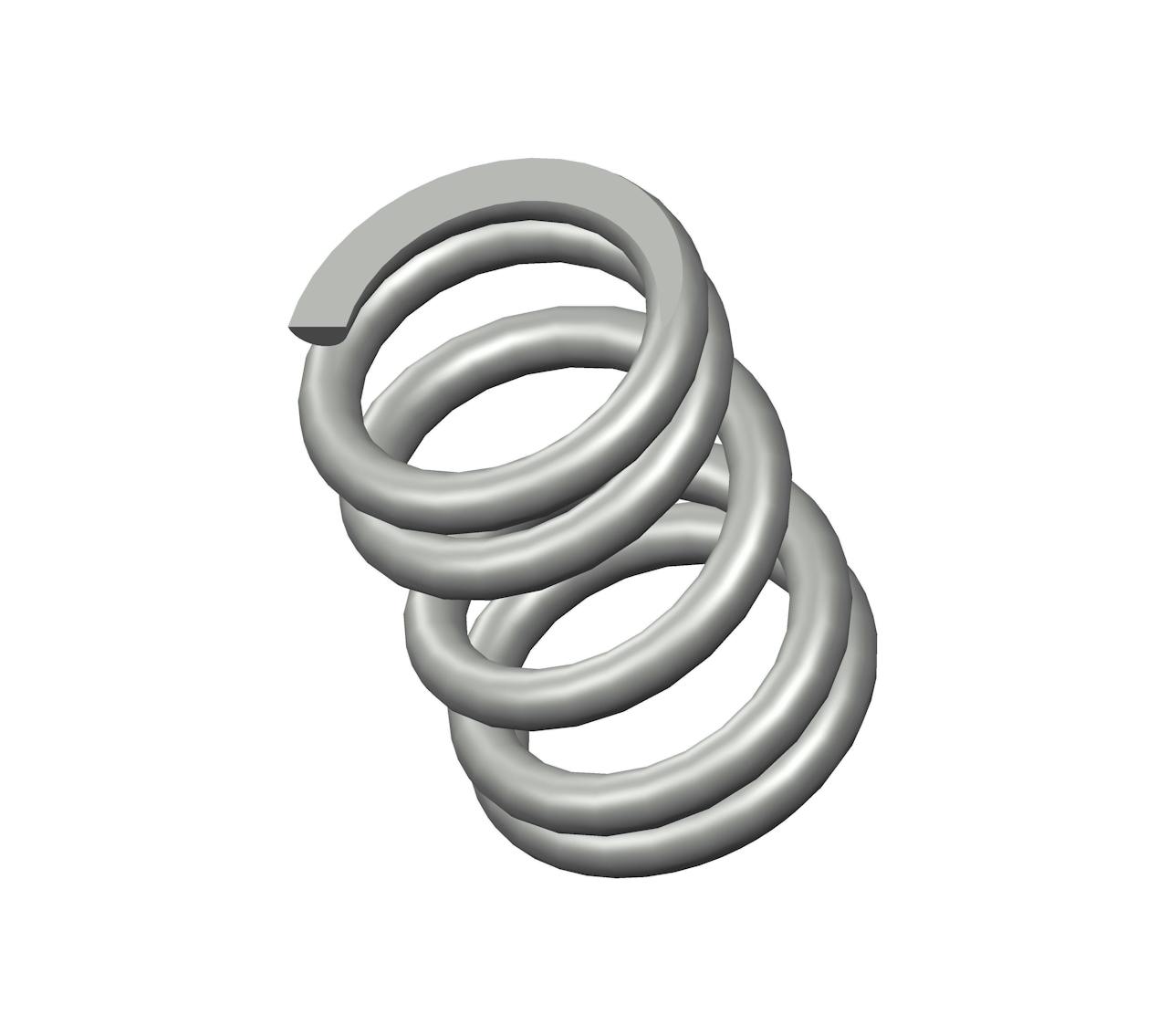

11708CS - 1.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 1.25", and an I.D. of 0.892".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11708
Ends Closed & Ground
Finish Zinc
Free Length 1.75 in
Inside Diameter 0.892 in
Material Spring Steel
Outside Diameter 1.25 in
Part Type Standard
Rate 400 lbs/in
SKU 11708CS
Solid Length 0.9 in
Suggested Max Deflection 0.34 in
Suggested Max Load 134 lbf
Total Coils 5
Wire Diameter 0.179 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11708
Ends Closed & Ground
Finish Zinc
Free Length 44.45 mm
Inside Diameter 22.66 mm
Material Spring Steel
Outside Diameter 31.75 mm
Part Type Standard
Rate 70.04 N/mm
SKU 11708CS
Solid Length 22.86 mm
Suggested Max Deflection 8.64 mm
Suggested Max Load 596.03 N
Total Coils 5
Wire Diameter 4.55 mm
The compression spring 11708CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 11708 compression spring design exhibits exceptional tensile strength and resilience.

The 11708 design is manufactured with a free length of 1.75", with an outer diameter of 1.25", an inner diameter of 0.892", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 400 lbs/in.

The 11708CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 11708 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
