Century Spring

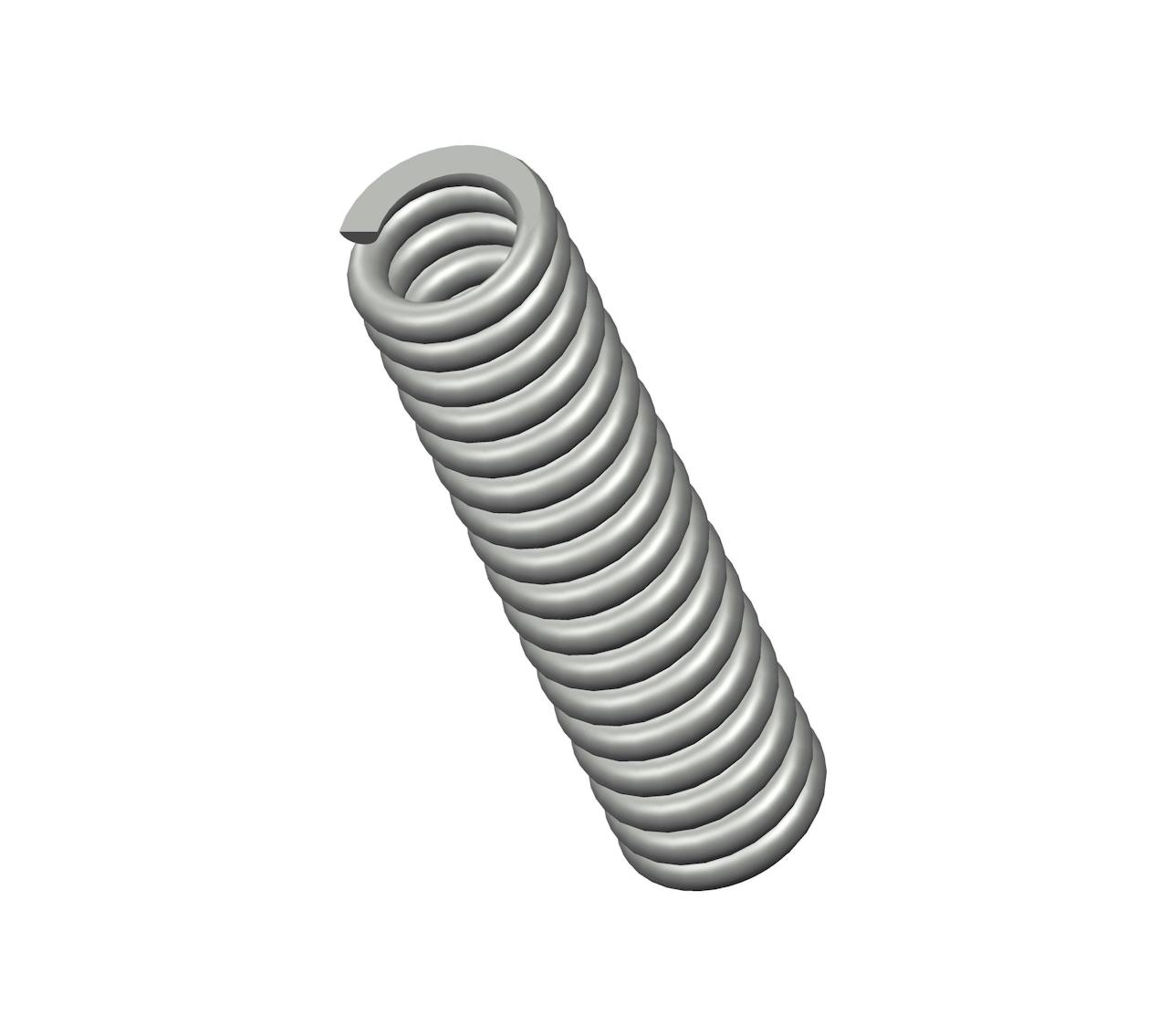

11630CS - 4" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 17 coils and closed & ground ends. This spring features an O.D. of 0.984", and an I.D. of 0.624".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11630
Ends Closed & Ground
Finish Zinc
Free Length 4 in
Inside Diameter 0.624 in
Material Spring Steel
Outside Diameter 0.984 in
Part Type Standard
Rate 194 lbs/in
SKU 11630CS
Solid Length 3.06 in
Suggested Max Deflection 0.83 in
Suggested Max Load 161 lbf
Total Coils 17
Wire Diameter 0.18 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11630
Ends Closed & Ground
Finish Zinc
Free Length 101.6 mm
Inside Diameter 15.85 mm
Material Spring Steel
Outside Diameter 24.99 mm
Part Type Standard
Rate 33.97 N/mm
SKU 11630CS
Solid Length 77.72 mm
Suggested Max Deflection 21.08 mm
Suggested Max Load 716.13 N
Total Coils 17
Wire Diameter 4.57 mm
The compression spring 11630CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 11630 compression spring design exhibits exceptional tensile strength and resilience.

The 11630 design is manufactured with a free length of 4", with an outer diameter of 0.984", an inner diameter of 0.624", and a total of 17 coils, expertly designed to deliver consistent compression characteristics including a rate of 194 lbs/in.

The 11630CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 11630 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
