Century Spring

11597CS - 1.31" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

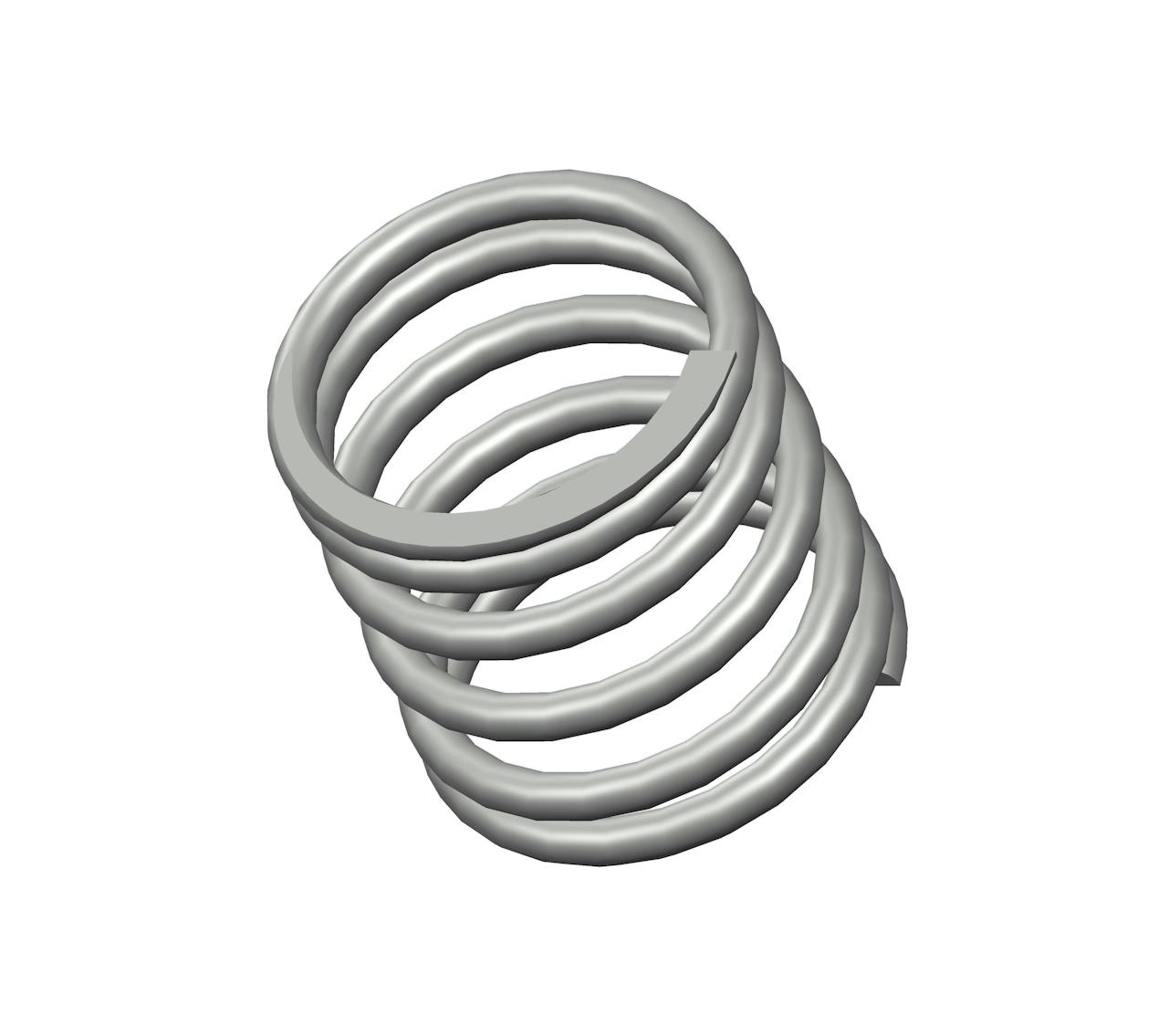

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 1.234", and an I.D. of 0.994".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11597
Ends Closed & Ground
Finish Zinc
Free Length 1.31 in
Inside Diameter 0.994 in
Material Spring Steel
Outside Diameter 1.234 in
Part Type Standard
Rate 54 lbs/in
SKU 11597CS
Solid Length 0.84 in
Suggested Max Deflection 0.47 in
Suggested Max Load 25 lbf
Total Coils 6
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11597
Ends Closed & Ground
Finish Zinc
Free Length 33.27 mm
Inside Diameter 25.25 mm
Material Spring Steel
Outside Diameter 31.34 mm
Part Type Standard
Rate 9.46 N/mm
SKU 11597CS
Solid Length 21.34 mm
Suggested Max Deflection 11.94 mm
Suggested Max Load 111.2 N
Total Coils 6
Wire Diameter 3.05 mm
The 11597 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 11597CS compression spring is designed with a free length of 2.69" total of 15.3 coils, and a rate of 278 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 11597 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
