11466CS - 2.13" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

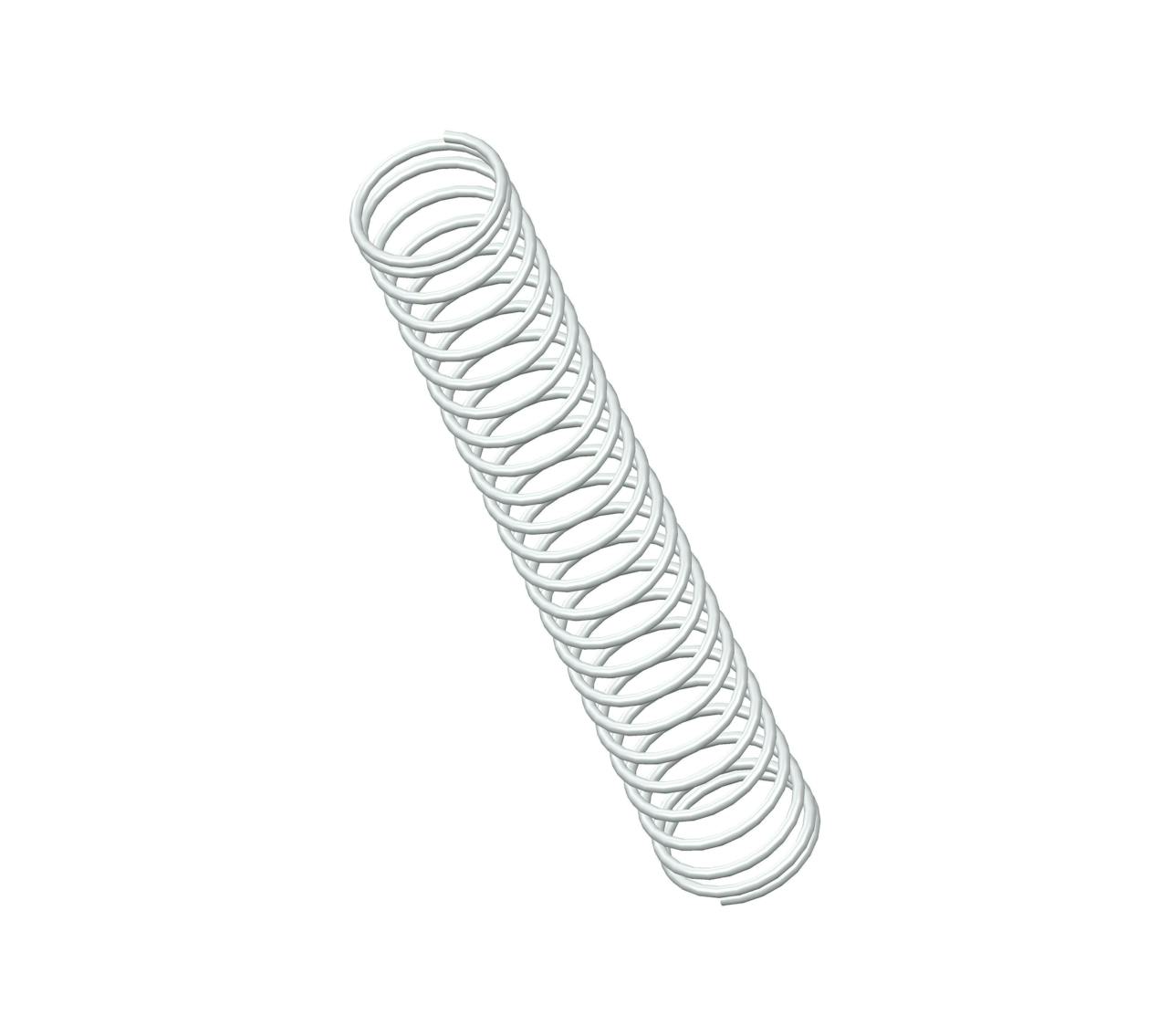

Compression spring manufactured from 302/304 stainless steel with 24.5 coils and closed ends. This spring features an O.D. of 0.343", and an I.D. of 0.293".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11466
Ends Closed
Finish None
Free Length 2.13 in
Inside Diameter 0.293 in
Material 302/304 Stainless Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 0.69 lbs/in
SKU 11466CS
Solid Length 0.64 in
Suggested Max Deflection 1.5 in
Suggested Max Load 1 lbf
Total Coils 24.5
Wire Diameter 0.025 in
The 11466CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.025" diameter 302/304 stainless steel, the 11466 spring design exhibits reliable strength across its 24.5 active coils, withstanding repeated compression cycles with a maximum load of 1 lbf without succumbing to fatigue.

We manufacture the 11466 design to provide a compression spring that is 2.13" long at rest and provides a consistent rate of 0.69 lbs/in along its recommended maximum of 1.5" deflection. For best results, your application should fully accommodate the inner (0.293") and outer (0.343") diameters of this spring and be designed for its closed end configuration.
